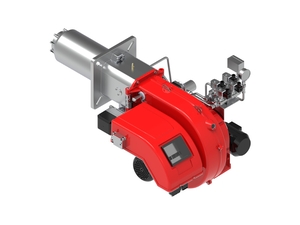

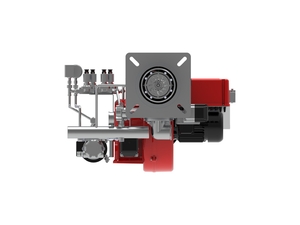

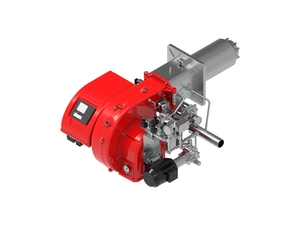

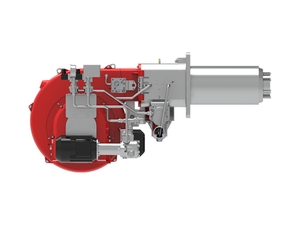

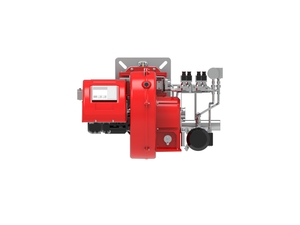

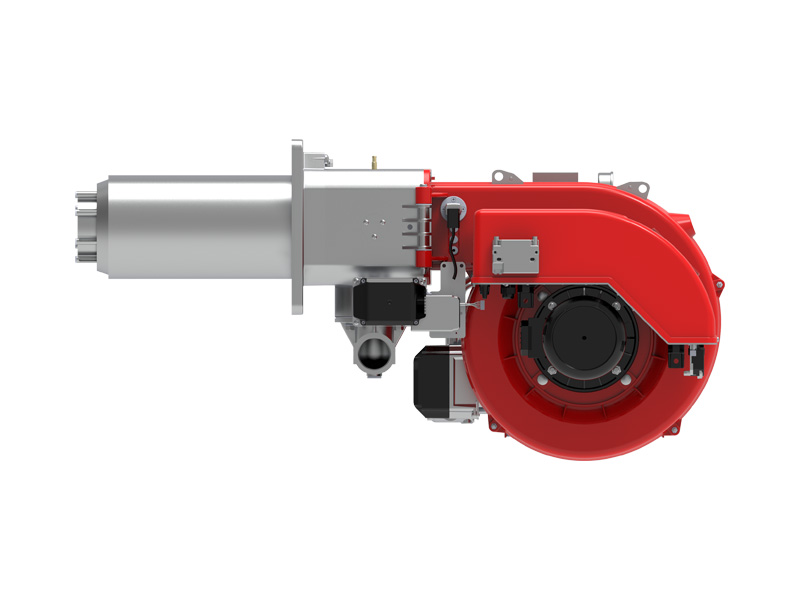

BTN85-250GLE BLU Series Low NOx Dual Fuel Burner is an electronic modulation dual fuel burner family for gas and light oil boiler and process heat applications, covering the 150 to 2400 kW output range.
Operating Modes
Electronic modulation
Key Features
- Dual fuel configuration supports gas firing together with light oil firing.
- Air and gas mix at the blast pipe, while light oil is atomized mechanically at high pressure through a nozzle.
- Combustion air and blast-pipe settings can be adjusted during commissioning to tune combustion performance.
- The mixing unit and atomization unit can be removed for maintenance without removing the burner from the boiler.
- Electronic proportional control uses three-phase servo motors to manage the gas, oil, and air ratio.
- The hinged body opens naturally for easier inspection and service access.
- Combustion air intake includes an air-flow adjustment device and a noise-reducing inlet design.
- A high-temperature stainless steel flame disc is used at the burner head.
- An independent motor drives the oil pump.
- UV flame supervision is provided by an ultraviolet phototube.
- Electrical protection rating is IP40.
General Specifications
| Model |
Article No. |
Power(kW) |
Power supply |
Motor power(kW) |
Package size(L*W*H/mm) |
Weight(kg) |
| BTN85GLE BLU |
203 23 172 |
150~860 |
380V 50Hz |
1.5+0.55 |
/ |
/ |
| BTN120GLE BLU |
203 23 173 |
300~1300 |
380V 50Hz |
2.2+0.55 |
/ |
/ |
| BTN210GLE BLU |
203 23 174 |
300~1860 |
380V 50Hz |
4.5+0.75 |
/ |
/ |
| BTN250GLE BLU |
203 23 175 |
570~2400 |
380V 50Hz |
5.5+0.75 |
/ |
/ |

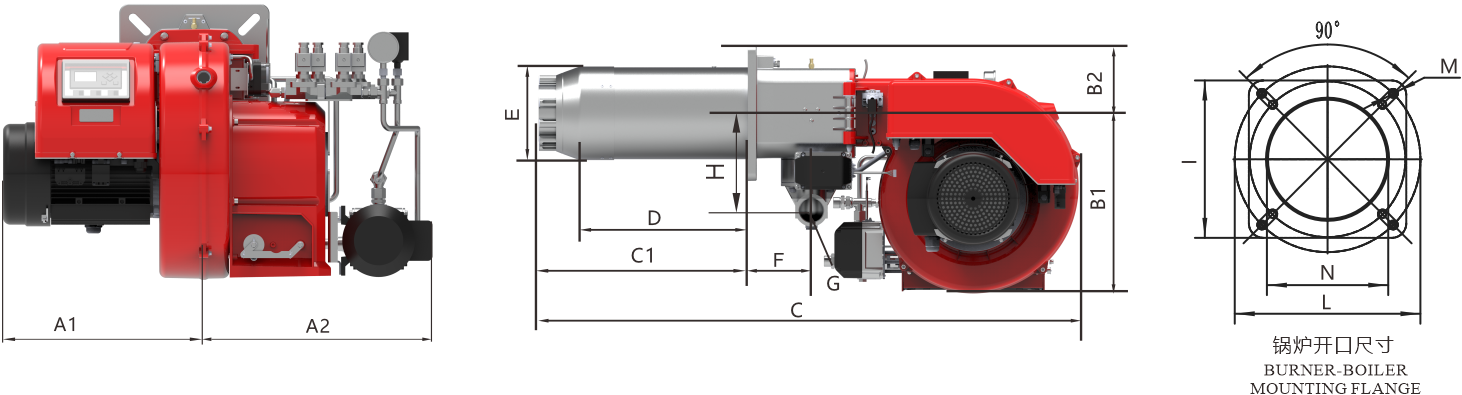

Dimensions
| Model |
A1(mm) |
A2(mm) |
B1(mm) |
B2(mm) |
C(mm) |
C1(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
H(mm) |
I(mm) |
L(mm) |
M(mm) |
N(mm) |
| BTN85 GLE BLU |
355 |
460 |
430 |
160 |
1190 |
396 |
335 |
190 |
151 |
G2" |
231 |
320 |
290-370 |
4-M16 |
200 |
| BTN120 GLE BLU |
355 |
460 |
430 |
160 |
1190 |
396 |
335 |
190 |
151 |
G2" |
231 |
320 |
290-370 |
4-M16 |
200 |
| BTN210 GLE BLU |
355 |
510 |
430 |
160 |
1290 |
497 |
400 |
190 |
151 |
G2" |
231 |
320 |
290-370 |
4-M16 |
200 |
| BTN250 GLE BLU |
355 |
510 |
430 |
160 |
1290 |
497 |
400 |
190 |
151 |
G2" |
231 |
320 |
290-370 |
4-M16 |
200 |

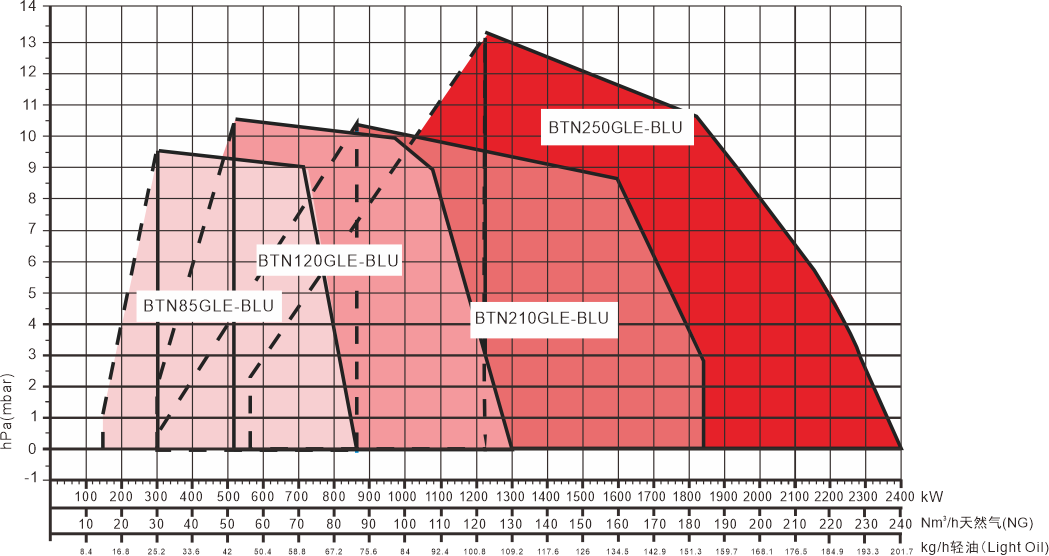

Performance Curve
