BTN85-150 Dual Fuel Burner

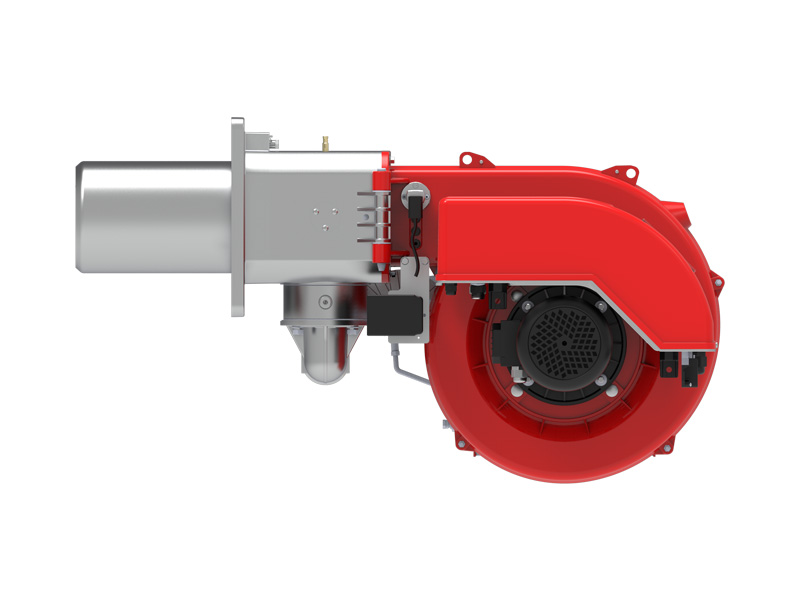

BTN85-150GLR Series Dual Fuel Burner View 1

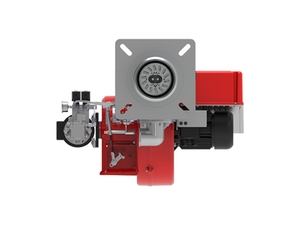

BTN85-150GLR Series Dual Fuel Burner View 2

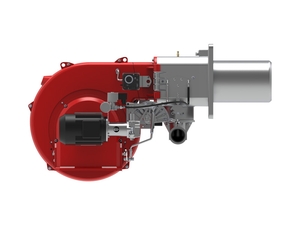

BTN85-150GLR Series Dual Fuel Burner View 3

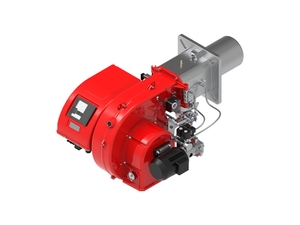

BTN85-150GLR Series Dual Fuel Burner View 4

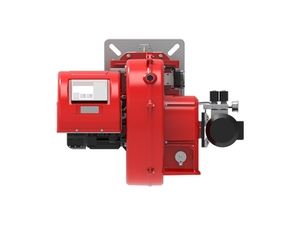

BTN85-150GLR Series Dual Fuel Burner View 5

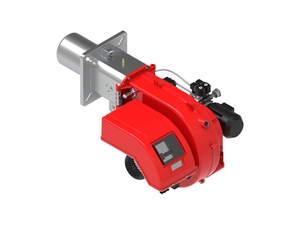

BTN85-150GLR Series Dual Fuel Burner View 6

Description

BTN85-150GLR Series Dual Fuel Burner is a dual fuel burner family for gas and light oil boiler and process heat applications, covering the 238 to 1400 kW output range.

Operating Modes

Two-stage

Key Features

  • Dual fuel operation supports gas firing together with light oil firing.
  • Combustion air and burner-head settings can be adjusted during commissioning.
  • The hinged body design supports easier inspection and maintenance.
  • Servo-motor air control supports staged or modulating operation according to model configuration.
  • Light-oil variants support pressure atomization and dual-fuel firing.
  • A flange and high-temperature insulation pad are used for boiler connection.
  • Combustion air intake includes a throttle damper.
  • Three-phase motor drives the fan.
  • Flame supervision is provided by ionization electrode and photoelectric or ultraviolet flame detection.
  • Electrical protection rating is IP40.

General Specifications

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BTN85GLR 202 22 025 238~820 380V 50Hz 1.1+0.37 1000x1010x755 84
BTN120GLR 202 22 026 348~1165 380V 50Hz 1.5+0.37 1000x1010x755 87
BTN150GLR 202 22 027 368~1400 380V 50Hz 2.2+0.37 1000x1010x755 90

Dimensions

Model A1(mm) A2(mm) B1(mm) B2(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(mm) I(mm) L(mm) M(mm) N(mm) P(mm) S(mm)
BTN85GLR 355 394 428 160 1042 250 180 151 G2" 231 320 290 4-M16 170 260 220
BTN120GLR 355 452 428 160 1042 250 180 151 G2" 231 320 290 4-M16 170 260 220
BTN150GLR 355 452 428 160 1072 280 190 151 G2" 231 320 290 4-M16 200 370 320

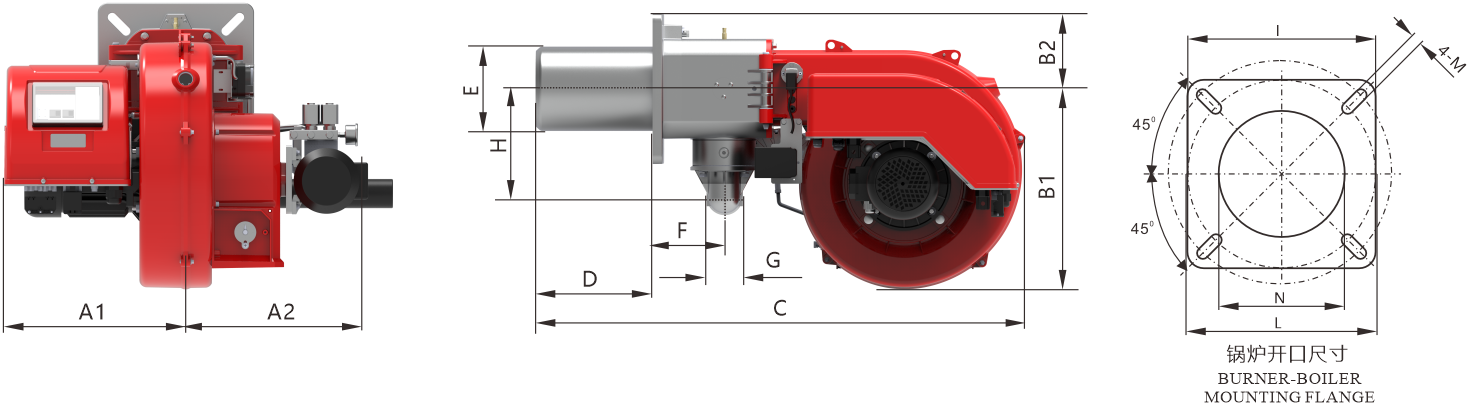

BTN85-150GLR Series Dimension Drawing

Performance Curve

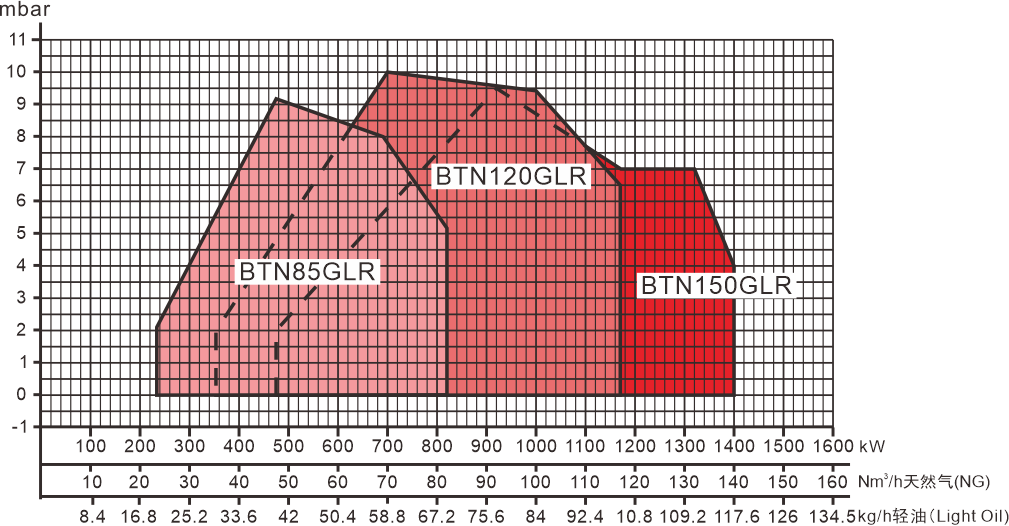

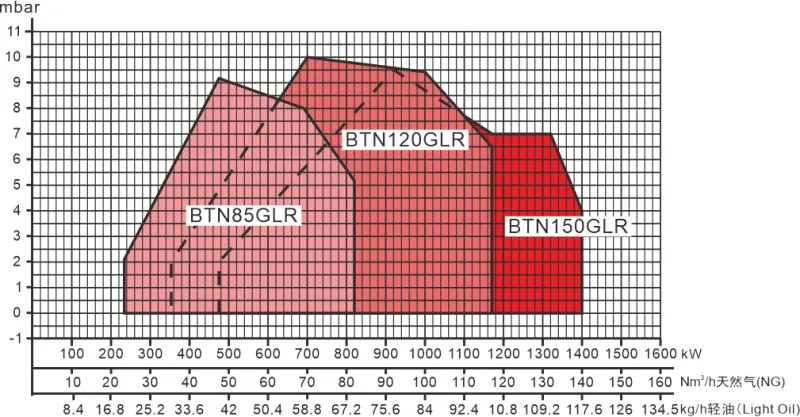

BTN85-150GLR Series Performance Curve
