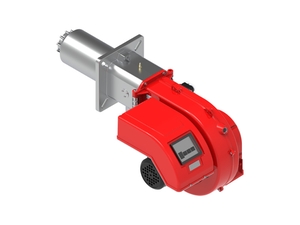

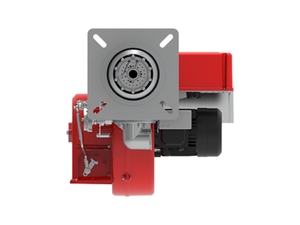

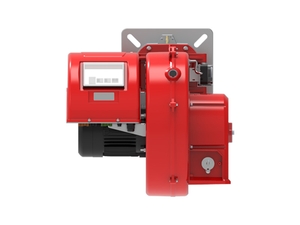

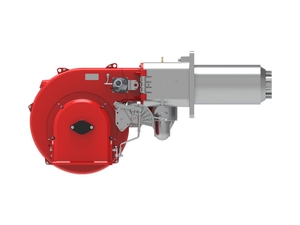

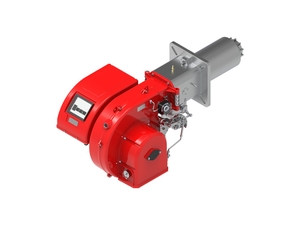

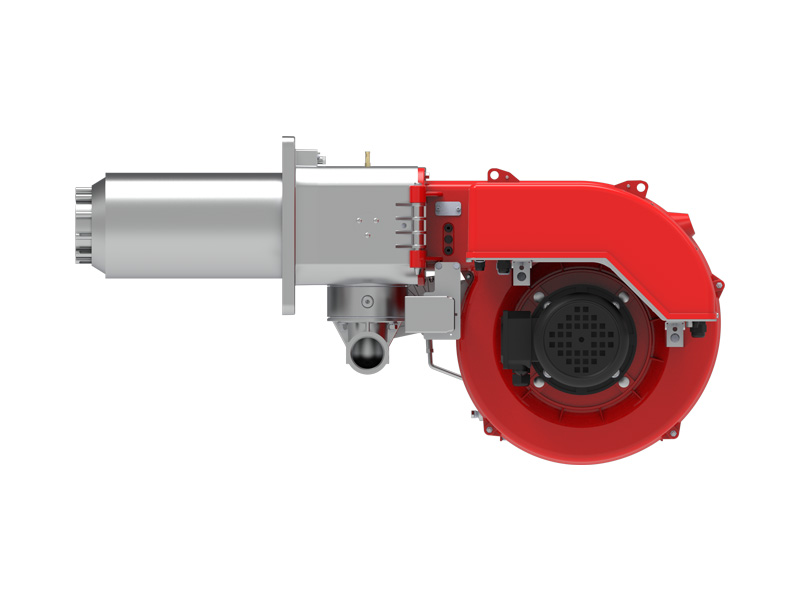

BTN85-120GC E BLU Series Low NOx Gas Burner covers low-NOx gas burner applications for boilers and process heat systems, spanning the 150 to 1300 kW output range with modulation and electronic modulation configurations.
Operating Modes
Modulation; Electronic modulation
Key Features
Air and gas are mixed in the combustion head for stable low-NOx combustion.
Combustion air and burner head settings can be adjusted to tune combustion parameters.
The hinged body opens naturally for easier inspection and maintenance.
A servomotor adjusts minimum and maximum air flow for the firing stages; when firing is suspended, the damper closes to reduce furnace heat loss.
GC variants use a cam-driven servomotor to adjust air and fuel supply together, while GE variants use two servomotors for separate control.
A flange and high-temperature insulation pad are used for boiler connection.
Combustion air intake includes a throttle damper.
Three-phase motor drives the fan.
Flame supervision uses an ionization electrode and ultraviolet photocell detection.
Electrical protection rating is IP40.
General Specifications
Model
Article No.
Power(kW)
Power supply
Motor power(kW)
Package size(L*W*H/mm)
Weight(kg)
BTN85GC BLU
203 22 082
150~860
380V 50Hz
1.5
1010*905*760
78
BTN85GE BLU
203 22 083
BTN120GC BLU
203 22 120
300~1300
2.2
81
BTN120GE BLU
203 22 121
BTN85GC BLU-TL
203 22 409
150~860
1.5
78
BTN85GE BLU-TL
203 22 084
BTN120GC BLU-TL
203 22 410
300~1300
2.2
81
BTN120GE BLU-TL
202 22 141
Dimensions
Model
A1(mm)
A2(mm)
B1(mm)
B2(mm)
C(mm)
C1(mm)
D(mm)
E(mm)
F(mm)
G(mm)
H(mm)
I(mm)
L(mm)
M(mm)
N(mm)
BTN85GC BLU
355
235
430
160
1030
236
182
190
151
G2"
231
320
290-370
4-M16
200
BTN85GE BLU
1055
261
200
BTN85GC BLU-TL
1165
371
317
BTN85GE BLU-TL
1190
396
335
BTN120GC BLU
1033
238.5
182
BTN120GE BLU
1055
261
200
BTN120GC BLU-TL
1168
373.5
317
BTN120GE BLU-TL
1190
396
335

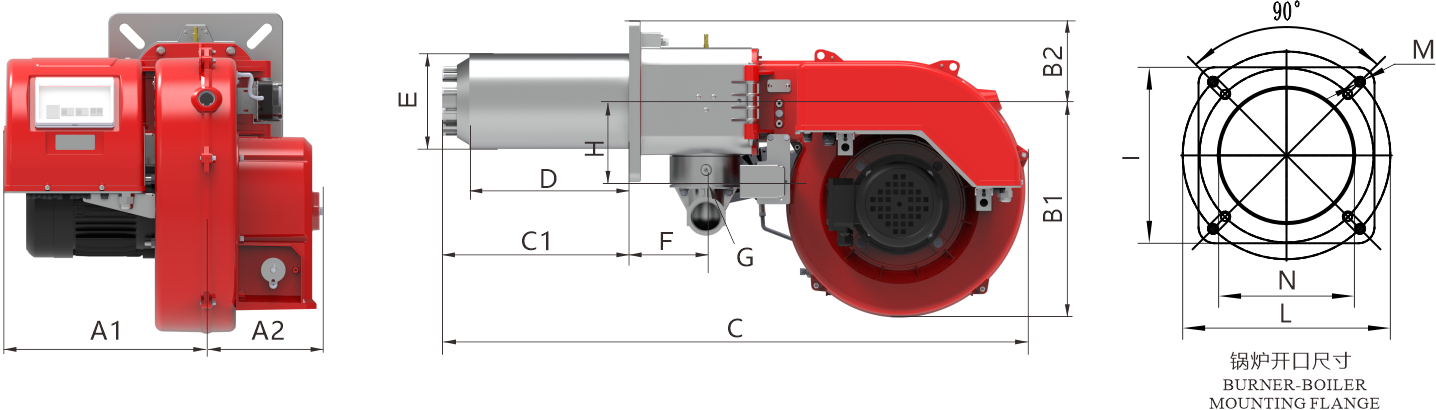

Burner outline and mounting dimensions for the BTN85–120GC/E BLU family.

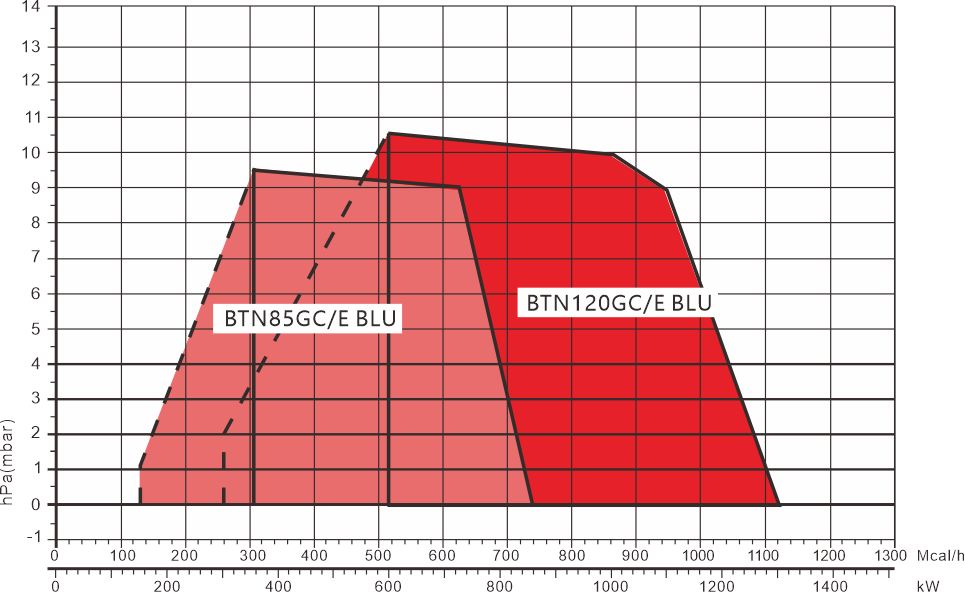

Performance Curve
Operating envelopes for the illustrated BTN85GC/E BLU and BTN120GC/E BLU burners.
