BTN550-650 Gas & Light Oil Burner

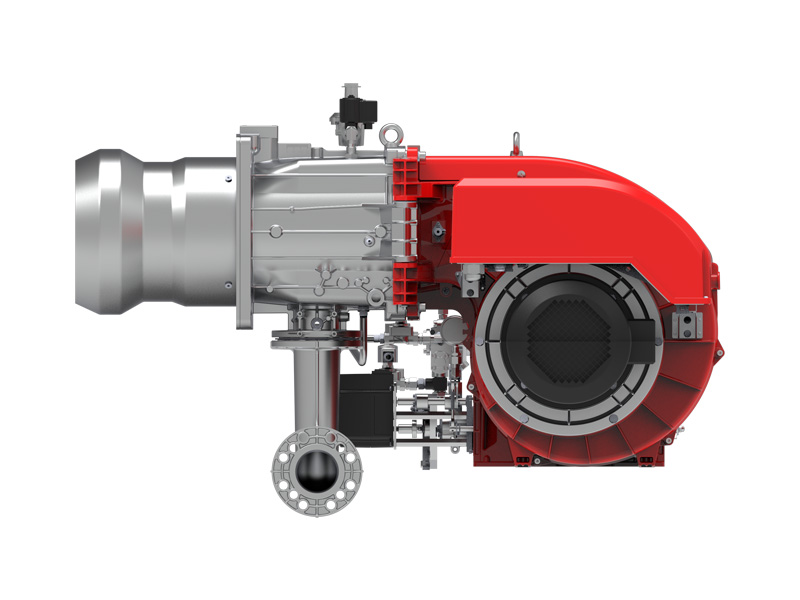

BTN550-650GLC GLE Series Dual Fuel Burner View 1

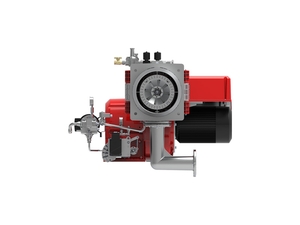

BTN550-650GLC GLE Series Dual Fuel Burner View 2

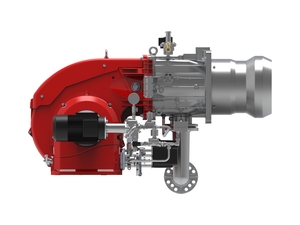

BTN550-650GLC GLE Series Dual Fuel Burner View 3

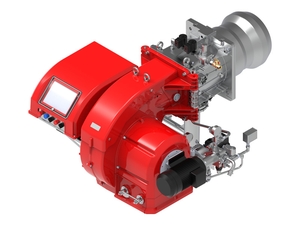

BTN550-650GLC GLE Series Dual Fuel Burner View 4

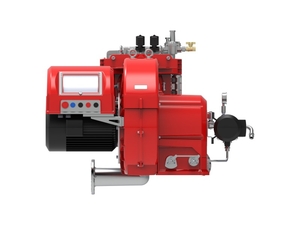

BTN550-650GLC GLE Series Dual Fuel Burner View 5

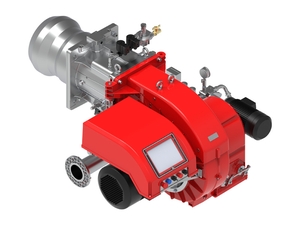

BTN550-650GLC GLE Series Dual Fuel Burner View 6

Description

BTN550-650GLC GLE Series Dual Fuel Burner is a dual fuel burner family for gas and light oil boiler and process heat applications, covering the 600 to 6155 kW output range.

Operating Modes

Modulation; Electronic modulation

Key Features

  • Dual fuel operation supports gas firing together with light oil firing.
  • Combustion air and burner-head settings can be adjusted during commissioning.
  • The hinged body design supports easier inspection and maintenance.
  • Servo-motor air control supports staged or modulating operation according to model configuration.
  • Light-oil variants support pressure atomization and dual-fuel firing.
  • A flange and high-temperature insulation pad are used for boiler connection.
  • Combustion air intake includes a throttle damper.
  • Three-phase motor drives the fan.
  • Flame supervision is provided by ionization electrode and photoelectric or ultraviolet flame detection.
  • Electrical protection rating is IP40.

General Specifications

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BTN550GLC 203 23 090 600~5170 380V 50Hz 12+1.5 / /
BTN550GLE 202 23 080 600~5170 380V 50Hz 12+1.5 / /
BTN650GLC 202 23 087 1000~6155 380V 50Hz 15+1.5 / /
BTN650GLE 202 23 082 1000~6155 380V 50Hz 15+1.5 / /

Dimensions

Model A1(mm) A2(mm) B1(mm) B2(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(mm) I(mm) L(mm) M(mm) N(mm)
BTN550GLC 583 661 519 335 1434 358 365 178 DN65 528 400 452 4-M16 375
BTN550GLE 583 661 519 335 1434 358 365 178 DN65 528 400 452 4-M16 375
BTN650GLC 583 661 519 335 1434 358 365 178 DN65 528 400 452 4-M16 375
BTN650GLE 583 330 519 335 1434 358 365 178 DN65 528 400 452 4-M16 375

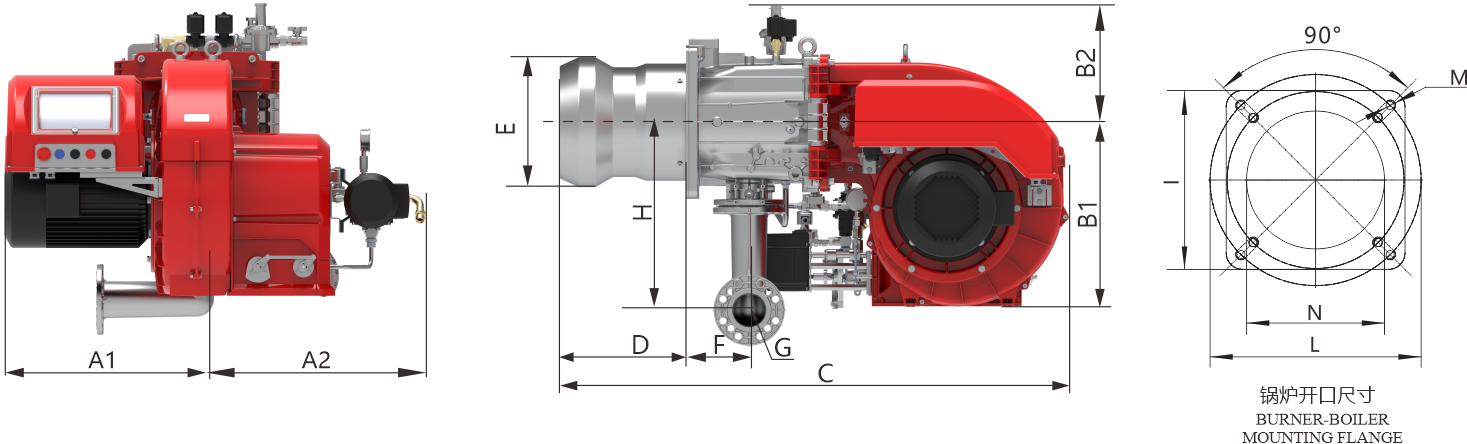

BTN550-650GLC GLE Series Dimension Drawing

Performance Curve

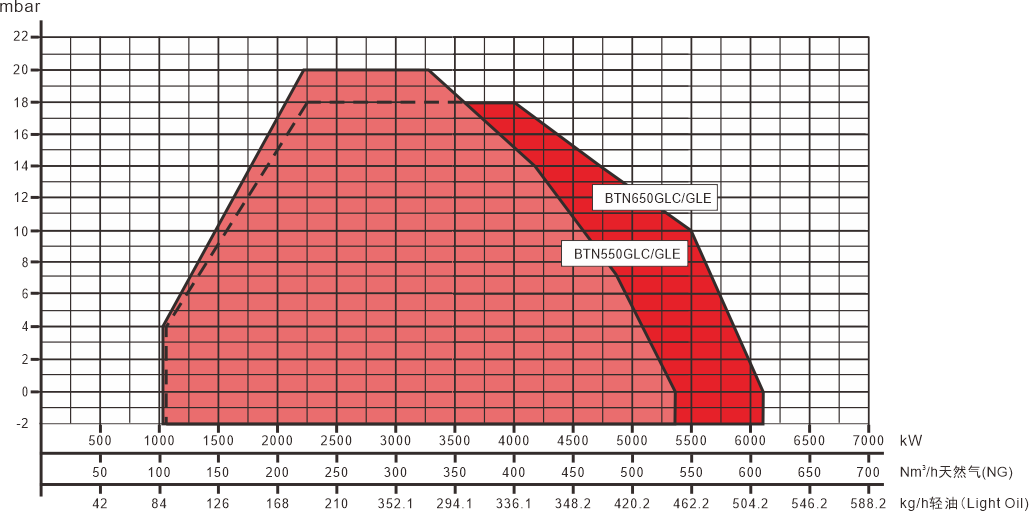

BTN550-650GLC GLE Series Performance Curve
