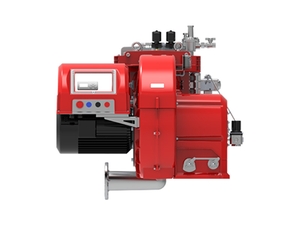

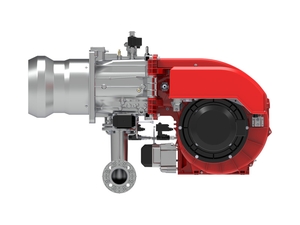

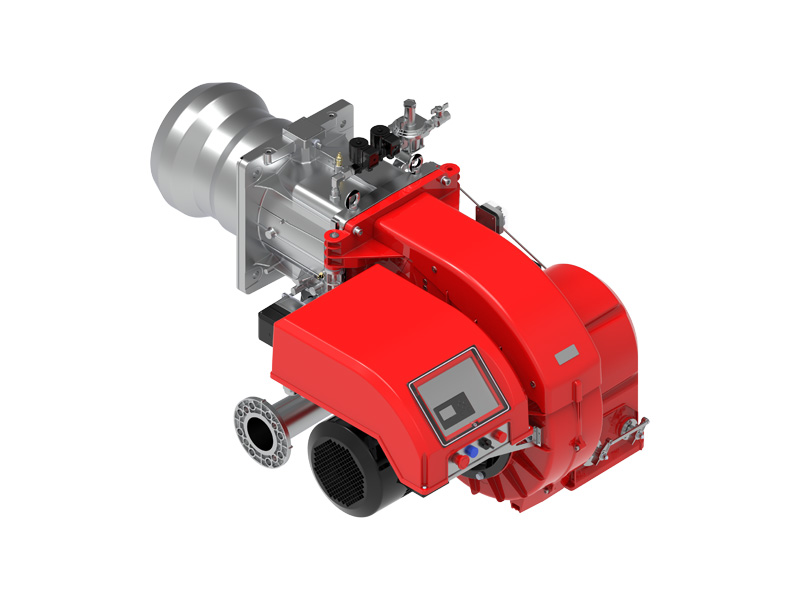

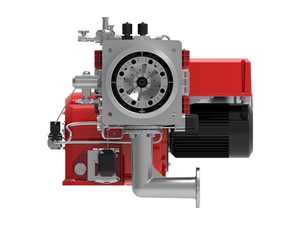

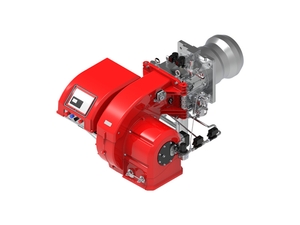

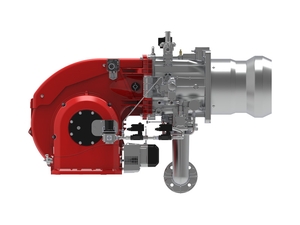

BTN550-650GHAC GHAE Series Dual Fuel Burner is a dual fuel burner family for gas and heavy oil boiler and process heat applications, covering the 600 to 6155 kW output range.
Operating Modes
Modulation; Electronic modulation
Key Features
Dual fuel operation supports gas firing together with heavy oil firing.
Combustion air and burner-head settings can be adjusted during commissioning.
The hinged body design supports easier inspection and maintenance.
Servo-motor air control supports staged or modulating operation according to model configuration.
Heavy-oil variants support pressure atomization and dual-fuel firing.
A flange and high-temperature insulation pad are used for boiler connection.
Combustion air intake includes a throttle damper.
Three-phase motor drives the fan.
Flame supervision is provided by ionization electrode and photoelectric or ultraviolet flame detection.
Electrical protection rating is IP40.
General Specifications
Model
Article No.
Power(kW)
Power supply
Motor power(kW)
Package size(L*W*H/mm)
Weight(kg)
BTN550GHAC
202 24 085
600~5170
380V 50Hz
12
/
/
BTN550GHAE
202 24 089
/
/
BTN650GHAC
202 24 086
1000~6155
15
/
/
BTN650GHAE
202 24 090
/
/
Dimensions
Model
A1(mm)
A2(mm)
B1(mm)
B2(mm)
C(mm)
D(mm)
E(mm)
F(mm)
G(mm)
H(mm)
I(mm)
L(mm)
M(mm)
N(mm)
BTN550GHAC
583
400
519
355
1434
358
365
178
DN65
528
400
452
4-M16
375
BTN550GHAE
BTN650GHAC
BTN650GHAE

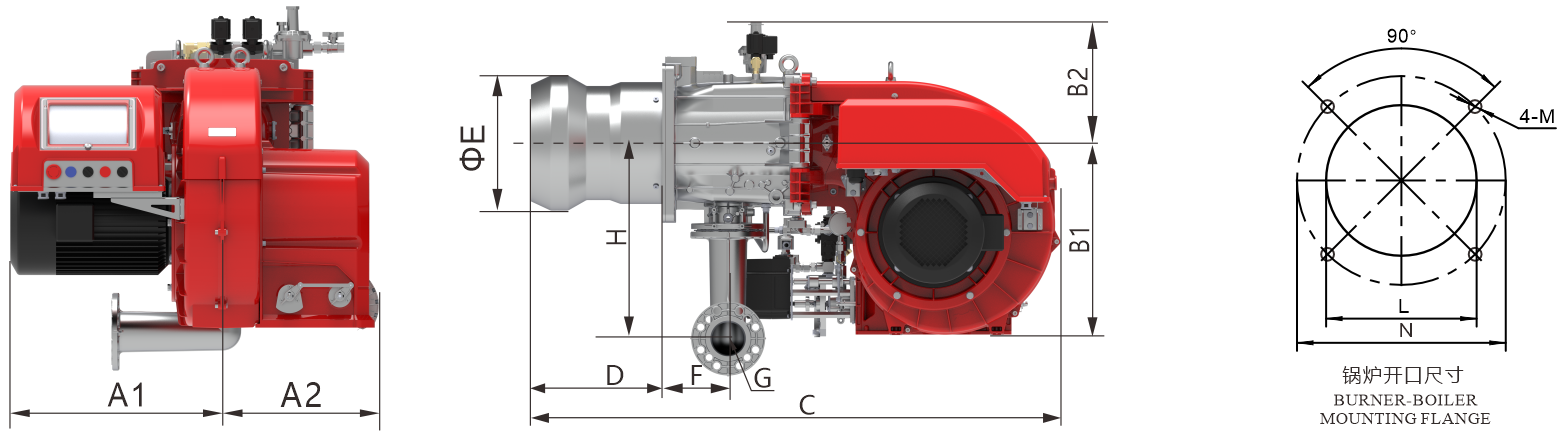

Burner outline and mounting dimensions for the BTN550–650GHAC/GHAE family.
Performance Curve

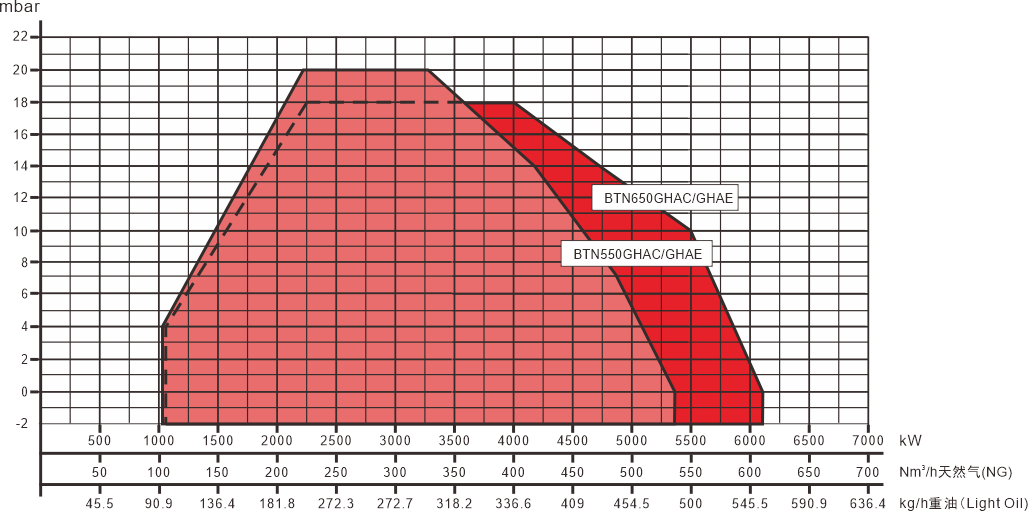

Operating envelopes for the illustrated BTN550GHAC/GHAE and BTN650GHAC/GHAE burners.
