BTN5-12 Light Oil Burner

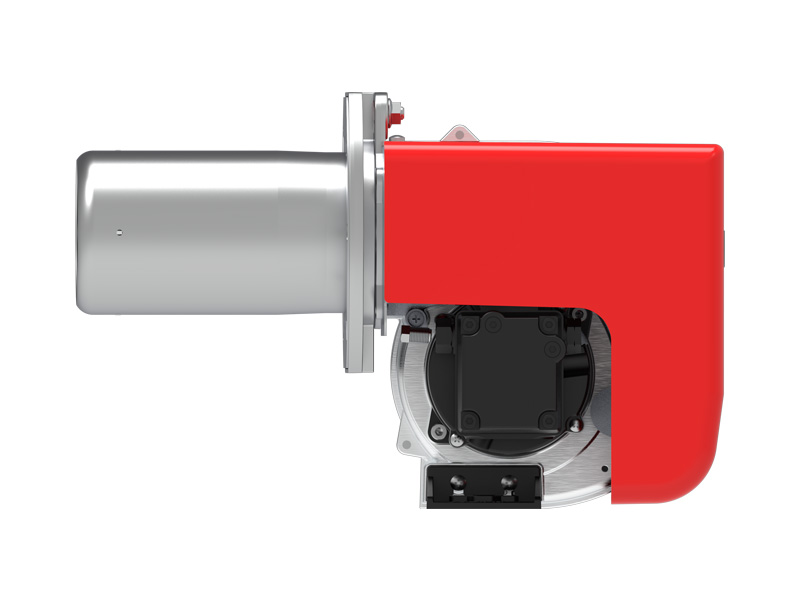

BTN5-12L LR Series Light Oil Burner View 1

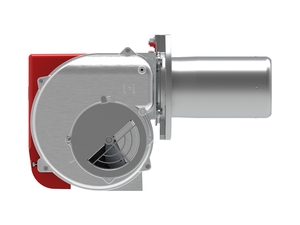

BTN5-12L LR Series Light Oil Burner View 2

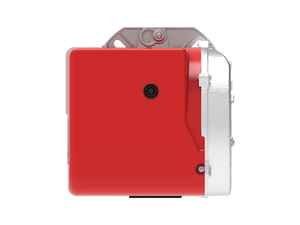

BTN5-12L LR Series Light Oil Burner View 3

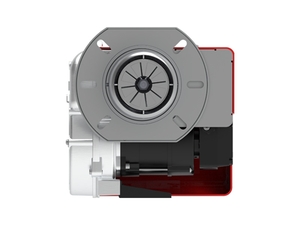

BTN5-12L LR Series Light Oil Burner View 4

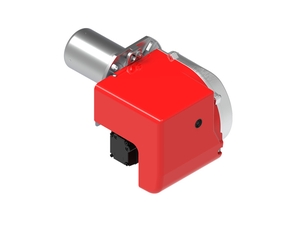

BTN5-12L LR Series Light Oil Burner View 5

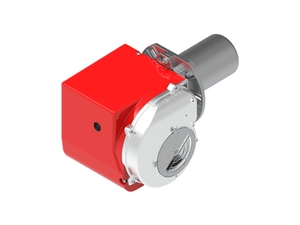

BTN5-12L LR Series Light Oil Burner View 6

Description

BTN5-12L LR Series covers compact light oil burners for boiler and heating equipment, combining single-stage and two-stage variants across the 20 to 130 kW output range.

Operating Modes

Single-stage; Two-stage

Key Features

  • High-pressure mechanical nozzle atomization supports stable fuel delivery.
  • Combustion air and blast-pipe adjustment help tune combustion values on site.
  • Hinged access keeps routine inspection and maintenance straightforward.
  • Single-stage versions use manual flow adjustment.
  • Two-stage versions regulate first- and second-stage air flow through a hydraulic regulator.
  • A mounting flange and heat-resistant insulation pad are used for boiler connection.
  • Combustion air intake includes an air-flow adjustment device.
  • Adjustable blast pipe includes a stainless-steel nozzle and steel deflector disc.
  • Single-phase motor drives the fan and oil pump.
  • Flame presence is monitored by photo resistance.
  • Electrical protection rating is IP40.
  • Plastic cover protects the burner housing.

General Specifications

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BTN5L 202 20 210 20~59 230V 50Hz 0.1 420x360x315 10
BTN5LR 201 20 281 20~59 230V 50Hz 0.1 420x360x315 /
BTN8L 202 20 211 47~105 230V 50Hz 0.1 420x360x315 10
BTN8LR 201 20 282 47~105 230V 50Hz 0.1 420x360x315 /
BTN12L 202 20 212 60~130 230V 50Hz 0.13 420x360x315 10.5
BTN12LR 201 20 283 60~130 230V 50Hz 0.13 420x360x315 /

Dimensions

Model A1(mm) A2(mm) B1(mm) B2(mm) C(mm) D(mm) E(mm) N(mm) I(mm) L(mm) M(mm)
BTN5L 135 110 164 83 385 157 95 105 166-194 140-168 4-M8
BTN5LR 143 130 164 83 385 157 95 105 166-194 140-168 4-M8
BTN8L 135 110 164 83 385 157 97 105 166-194 140-168 4-M8
BTN8LR 143 130 164 83 385 157 97 105 166-194 140-168 4-M8
BTN12L 135 110 164 83 385 157 97 105 166-194 140-168 4-M8
BTN12LR 143 130 164 83 385 157 97 105 166-194 140-168 4-M8

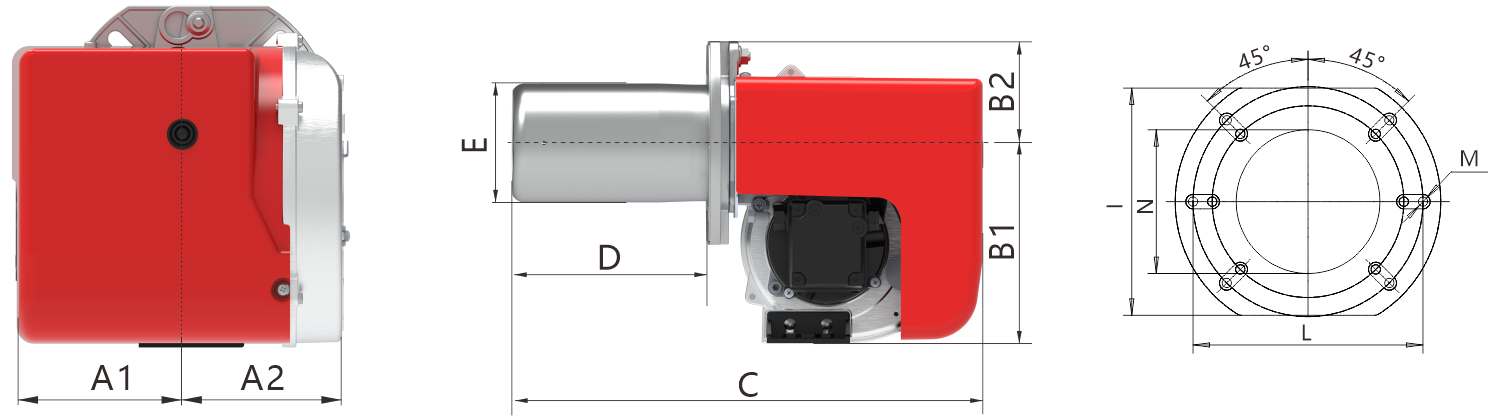

BTN5-12L LR Series Dimension Drawing

Performance Curve

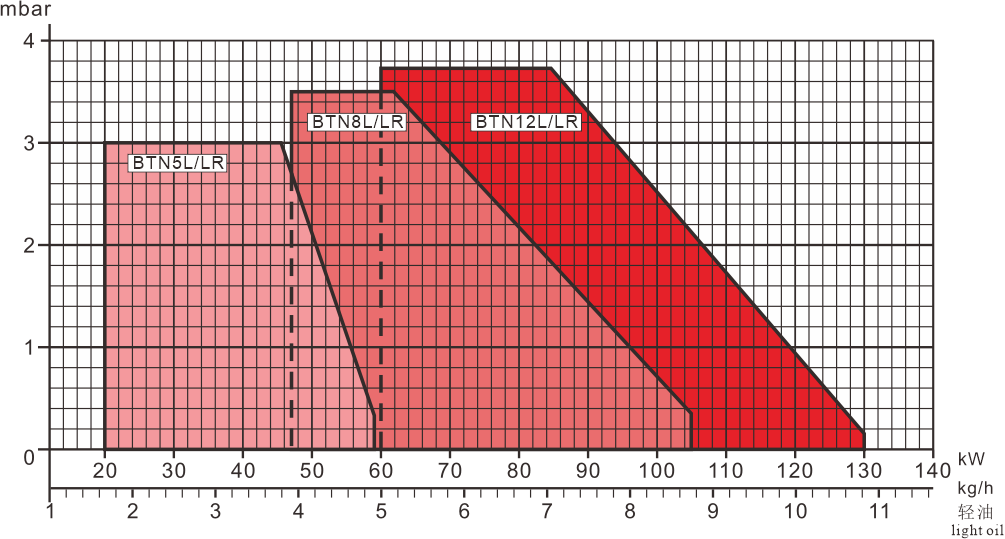

BTN5-12L LR Series Performance Curve
