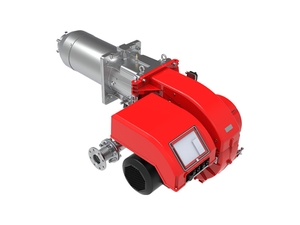

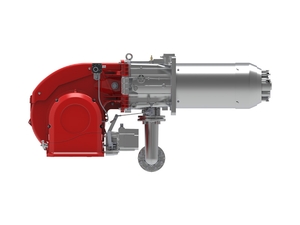

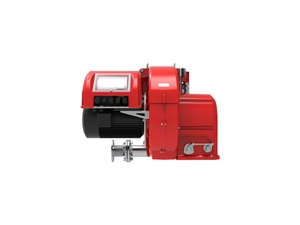

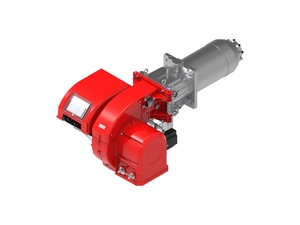

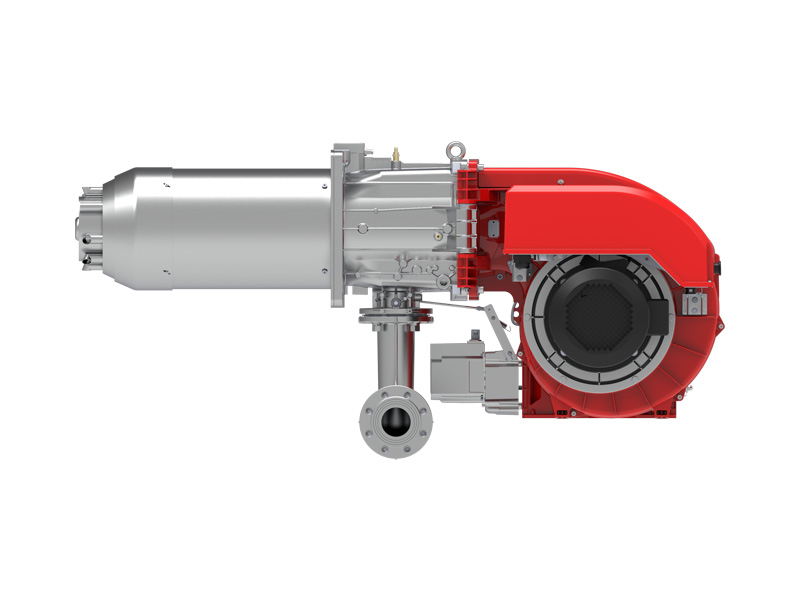

BTN350-650GC E BLU Series Low NOx Gas Burner covers low-NOx gas burner applications for boilers and process heat systems, spanning the 1200 to 6250 kW output range with modulation and electronic modulation configurations.
Operating Modes
Modulation; Electronic modulation
Key Features
Air and gas are mixed in the combustion head for stable low-NOx combustion.
Combustion air and burner head settings can be adjusted to tune combustion parameters.
The hinged body opens naturally for easier inspection and maintenance.
A servomotor adjusts minimum and maximum air flow for the firing stages; when firing is suspended, the damper closes to reduce furnace heat loss.
GC variants use a cam-driven servomotor to adjust air and fuel supply together, while GE variants use two servomotors for separate control.
A flange and high-temperature insulation pad are used for boiler connection.
Combustion air intake includes a throttle damper.
Three-phase motor drives the fan.
Flame supervision uses an ionization electrode and ultraviolet photocell detection.
Electrical protection rating is IP40.
General Specifications
Model
Article No.
Power(kW)
Power supply
Motor power(kW)
Package size(L*W*H/mm)
Weight(kg)
BTN350GC BLU
203 22 504
1200~3600
380V 50Hz
7.5
1950*1120*1100
250
BTN350GE BLU
203 22 500
BTN450GC BLU
203 22 505
1500~4450
9.2
BTN450GE BLU
203 22 501
BTN550GC BLU
203 22 506
1800~5250
12
BTN550GE BLU
203 22 502
BTN650GC BLU
203 22 507
2200~6250
15
280
BTN650GE BLU
203 22 503
Dimensions
Model
A1(mm)
A2(mm)
B1(mm)
B2(mm)
C(mm)
C1(mm)
D(mm)
E(mm)
F(mm)
G(mm)
H(mm)
I(mm)
L(mm)
M(mm)
N(mm)
BTN350GC BLU
556
400
519
239
1775
698
534
313
178
DN65
528
400
452
4-M16
350
BTN350GE BLU
335
BTN450GC BLU
239
BTN450GE BLU
335
BTN550GC BLU
583
239
BTN550GE BLU
335
BTN650GC BLU
239
336
BTN650GE BLU
335
Performance Curve

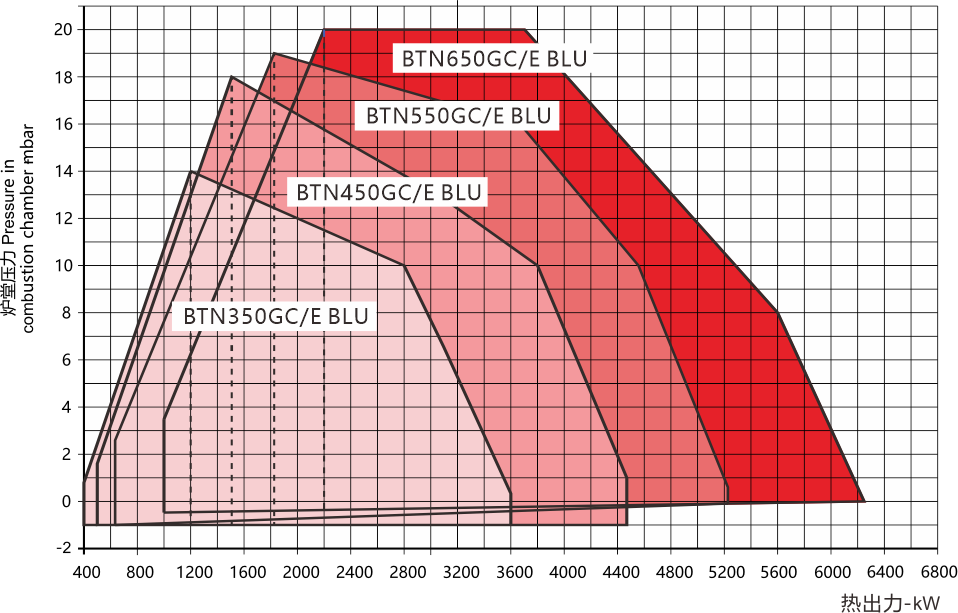

Operating envelopes for the illustrated BTN350–650GC/E BLU burner variants.
