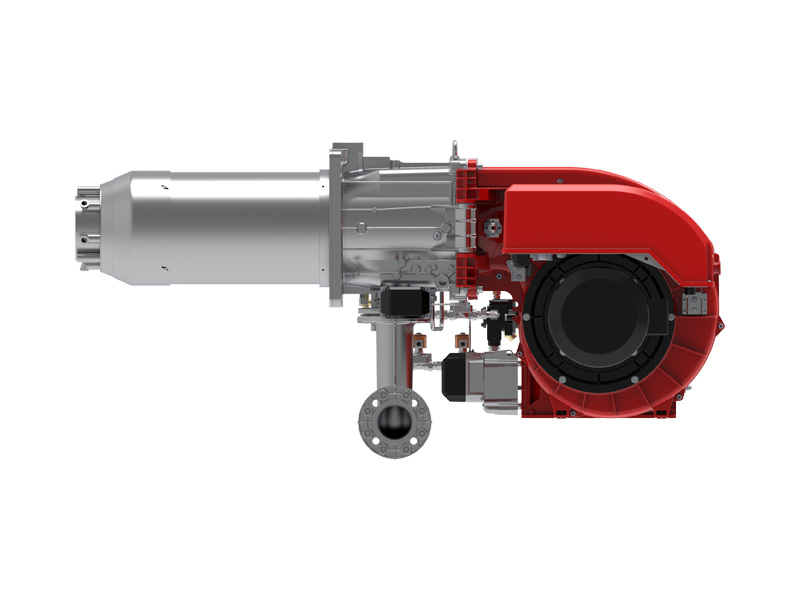

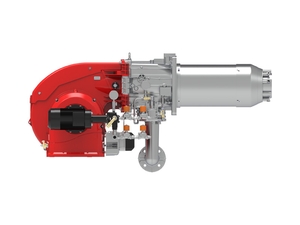

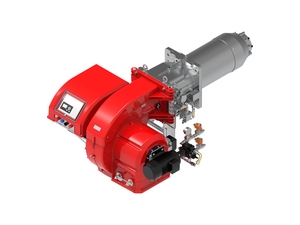

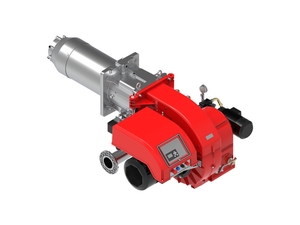

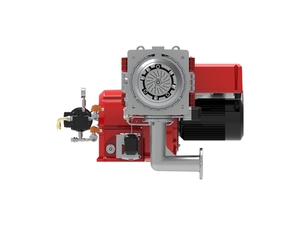

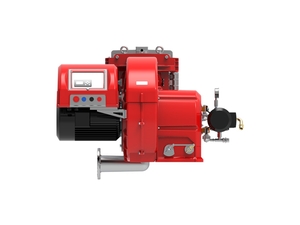

BTN350-650GLE BLU Series Low NOx Dual Fuel Burner is an electronic modulation dual fuel burner family for gas and light oil boiler and process heat applications, covering the 600 to 6155 kW output range.
Operating Modes
Electronic modulation
Key Features
Dual fuel configuration supports gas firing together with light oil firing.
Air and gas mix at the blast pipe, while light oil is atomized mechanically at high pressure through a nozzle.
Combustion air and blast-pipe settings can be adjusted during commissioning to tune combustion performance.
The mixing unit and atomization unit can be removed for maintenance without removing the burner from the boiler.
Electronic proportional control uses three-phase servo motors to manage the gas, oil, and air ratio.
The hinged body opens naturally for easier inspection and service access.
Combustion air intake includes an air-flow adjustment device and a noise-reducing inlet design.
A high-temperature stainless steel flame disc is used at the burner head.
An independent motor drives the oil pump.
UV flame supervision is provided by an ultraviolet phototube.
Electrical protection rating is IP40.
General Specifications
Model
Article No.
Power(kW)
Power supply
Motor power(kW)
Package size(L*W*H/mm)
Weight(kg)
BTN350GLE BLU
203 23 176
600~3600
380V 50Hz
7.5+1.5
/
/
BTN450GLE BLU
203 23 177
640~4200
9.2+1.5
/
/
BTN550GLE BLU
203 23 178
600~5170
12+1.5
/
/
BTN650GLE BLU
203 23 179
1000~6155
15+1.5
/
/
Dimensions
Model
A1(mm)
A2(mm)
B1(mm)
B2(mm)
C(mm)
C1(mm)
D(mm)
E(mm)
F(mm)
G(mm)
H(mm)
I(mm)
L(mm)
M(mm)
N(mm)
BTN350 GLE BLU
556
823
519
239
1775
700
534
312.5
178
DN65
528
400
452
4-M16
350
BTN450 GLE BLU
BTN550 GLE BLU
583
BTN650 GLE BLU
336

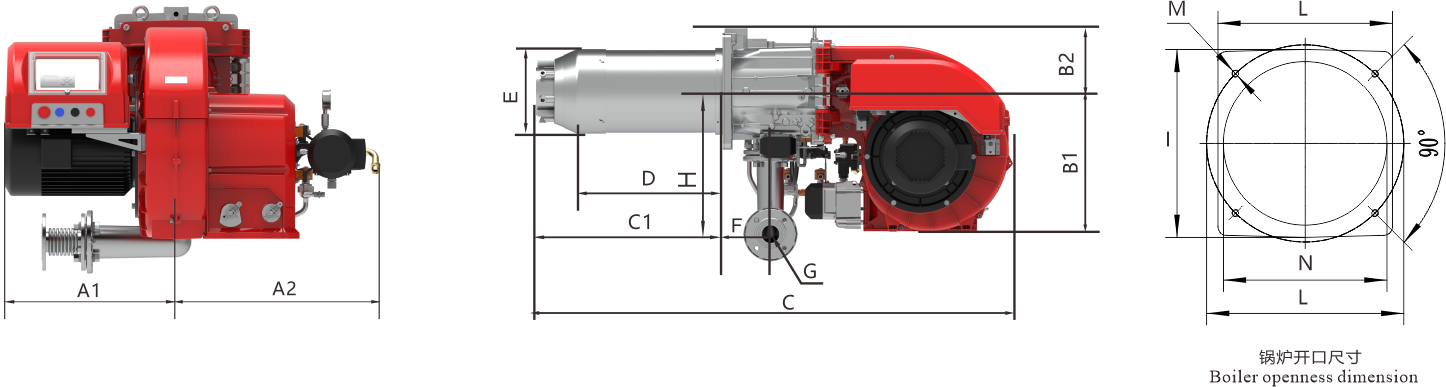

Burner outline and mounting dimensions for the BTN350–650GLE BLU family.
Performance Curve

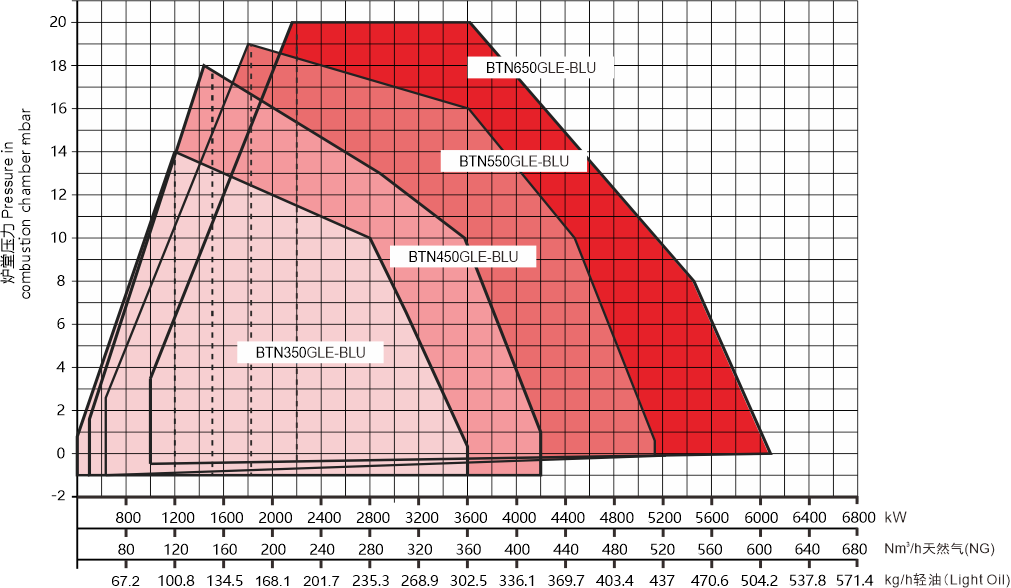

Operating envelopes for the illustrated BTN350–650GLE BLU burner variants.
