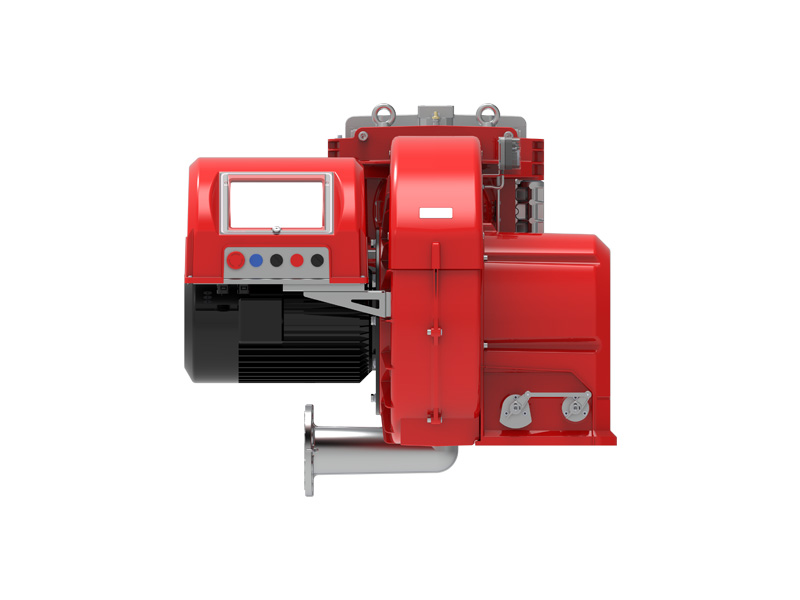

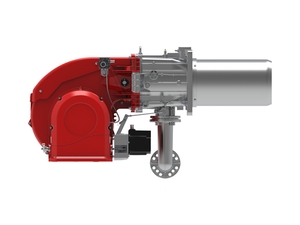

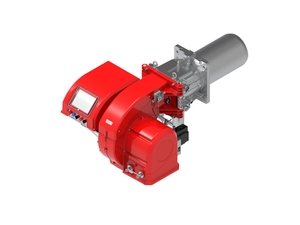

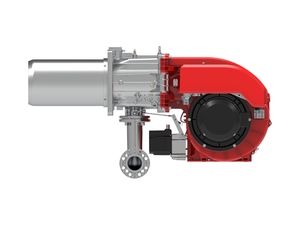

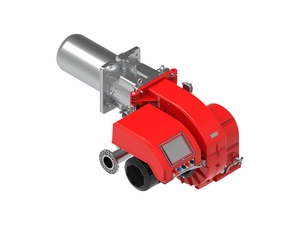

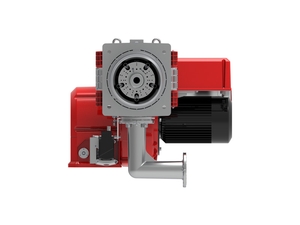

BTN350-650 Gas Burner

BTN350-650GC Series is a large-capacity gas burner family for industrial boilers and process heating equipment, covering 1300 to 6300 kW with modulating output control.

Operating Modes

Modulation

Key Features

• Air and gas are mixed in the burner head for stable combustion.
• Combustion air and blast-pipe settings can be adjusted during commissioning.
• The hinged body can open from both sides, making inspection and maintenance easier.
• Maximum and minimum air flow for the firing stages is controlled with high precision; the air damper closes fully at shutdown to reduce chimney heat loss.
• A cam-driven servomotor adjusts air and fuel delivery together.
• Fixed boiler coupling flange supports secure installation.
• Combustion air intake includes a throttle damper.
• Three-phase motor drives the fan.
• An ionization electrode monitors flame presence.
• Electrical protection rating is IP40.

General Specifications

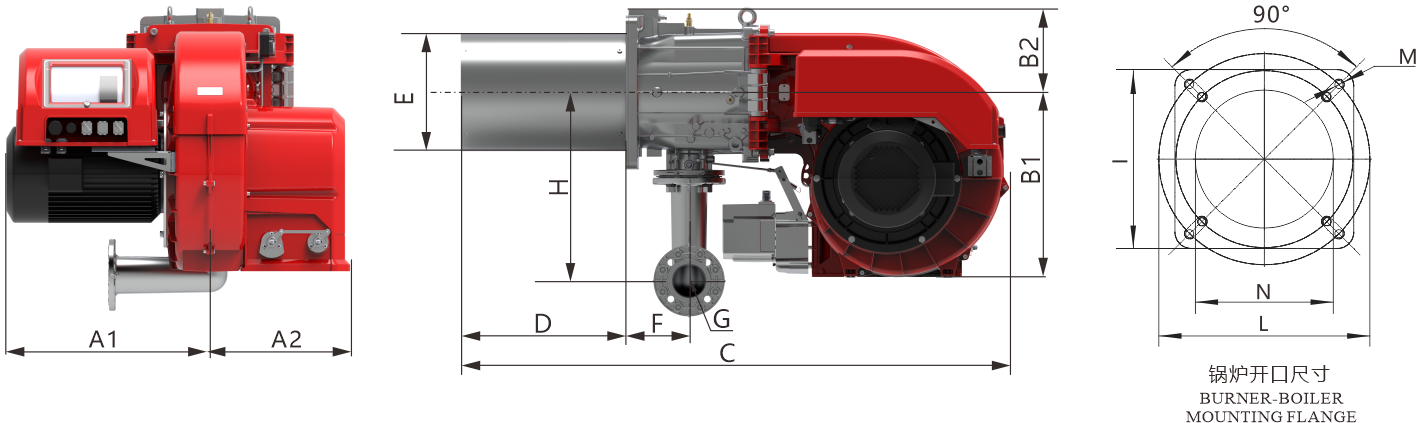

Dimensions

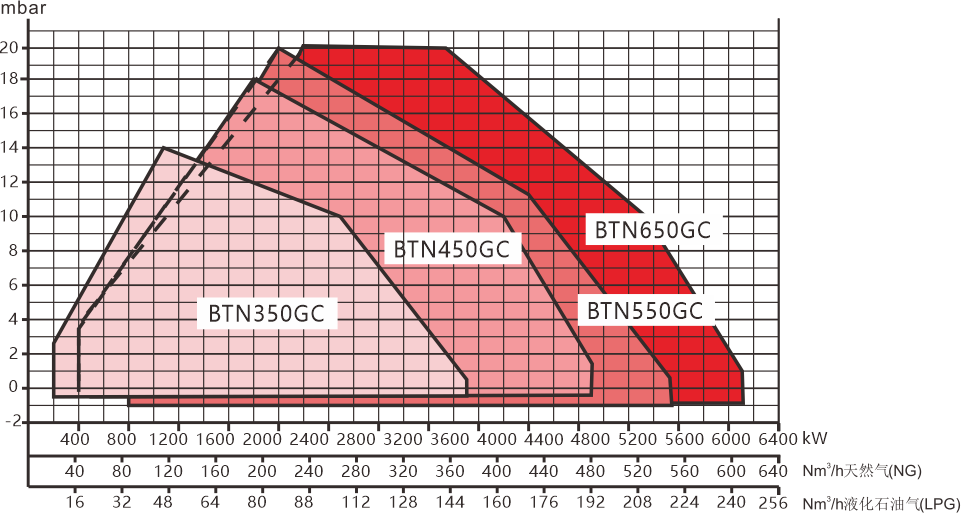

Performance Curve
