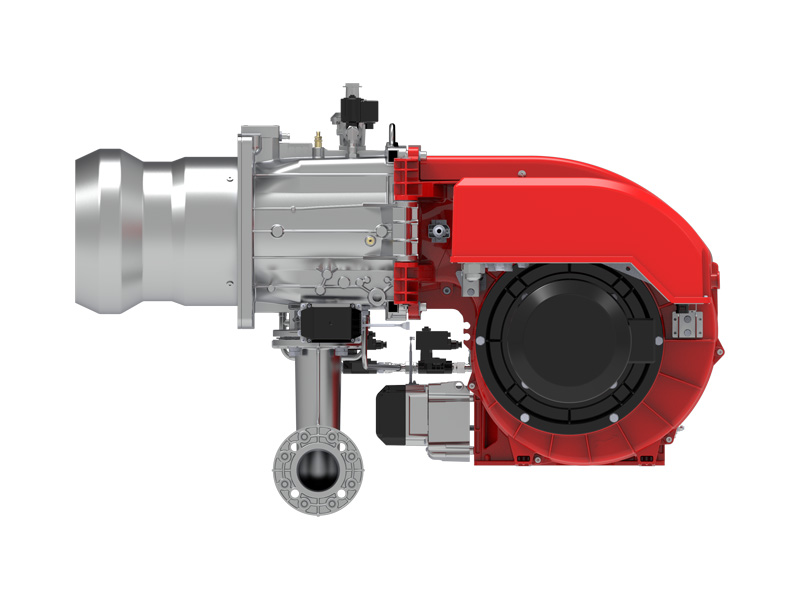

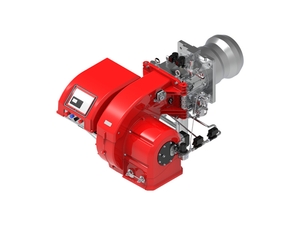

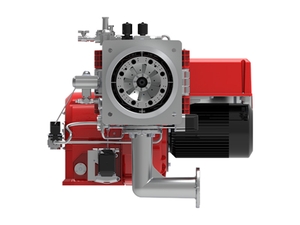

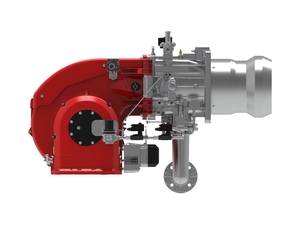

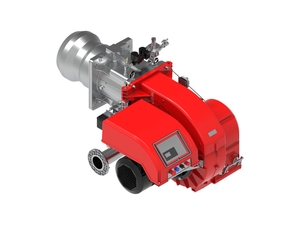

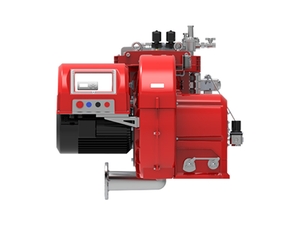

BTN350-450GHAC GHAE Series Dual Fuel Burner is a dual fuel burner family for gas and heavy oil boiler and process heat applications, covering the 600 to 4200 kW output range.
Operating Modes
Modulation; Electronic modulation
Key Features
Dual fuel operation supports gas firing together with heavy oil firing.
Combustion air and burner-head settings can be adjusted during commissioning.
The hinged body design supports easier inspection and maintenance.
Servo-motor air control supports staged or modulating operation according to model configuration.
Heavy-oil variants support pressure atomization and dual-fuel firing.
A flange and high-temperature insulation pad are used for boiler connection.
Combustion air intake includes a throttle damper.
Three-phase motor drives the fan.
Flame supervision is provided by ionization electrode and photoelectric or ultraviolet flame detection.
Electrical protection rating is IP40.
General Specifications
Model
Article No.
Power(kW)
Power supply
Motor power(kW)
Package size(L*W*H/mm)
Weight(kg)
BTN350GHAC
202 24 083
600~3600
380V 50Hz
7.5
/
/
BTN350GHAE
202 24 087
/
/
BTN450GHAC
202 24 084
640~4200
9.2
/
/
BTN450GHAE
202 24 088
/
/
Dimensions
Model
A1(mm)
A2(mm)
B1(mm)
B2(mm)
C(mm)
D(mm)
E(mm)
F(mm)
G(mm)
H(mm)
I(mm)
L(mm)
M(mm)
N(mm)
BTN350GHAC
555
400
519
355
1434
358
290
178
DN65
528
400
452
4-M16
350
BTN350GHAE
BTN450GHAC
BTN450GHAE

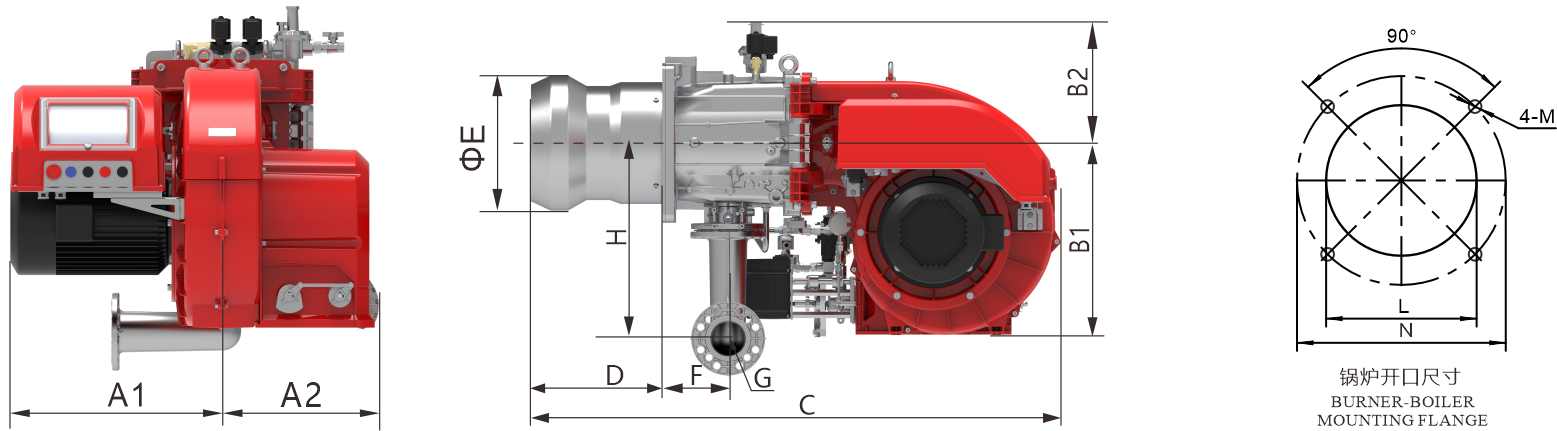

Burner outline and mounting dimensions for the BTN350–450GHAC/GHAE family.
Performance Curve

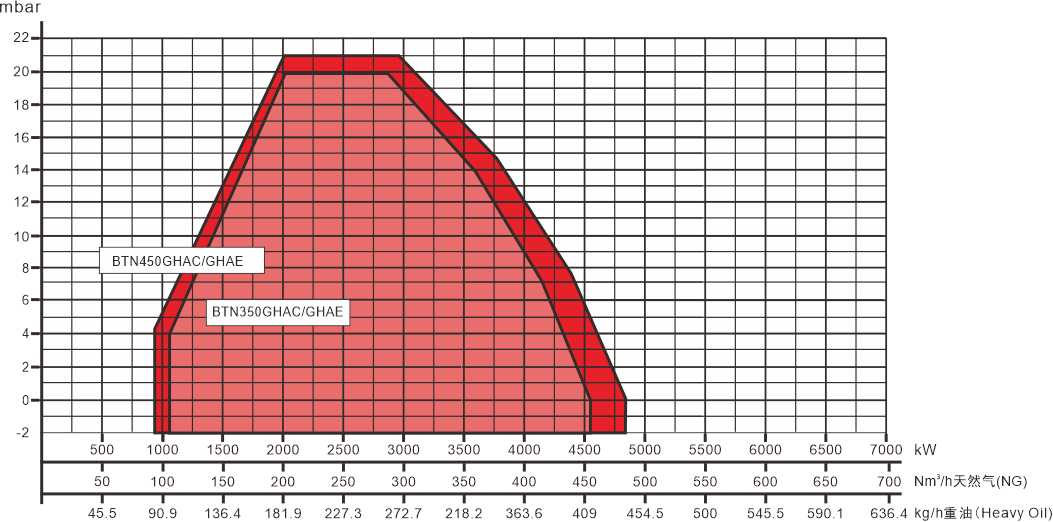

Operating envelopes for the illustrated BTN350GHAC/GHAE and BTN450GHAC/GHAE burners.
