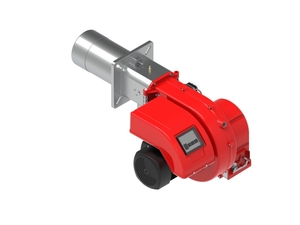

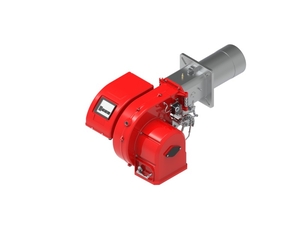

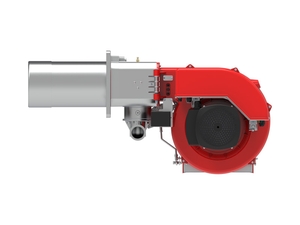

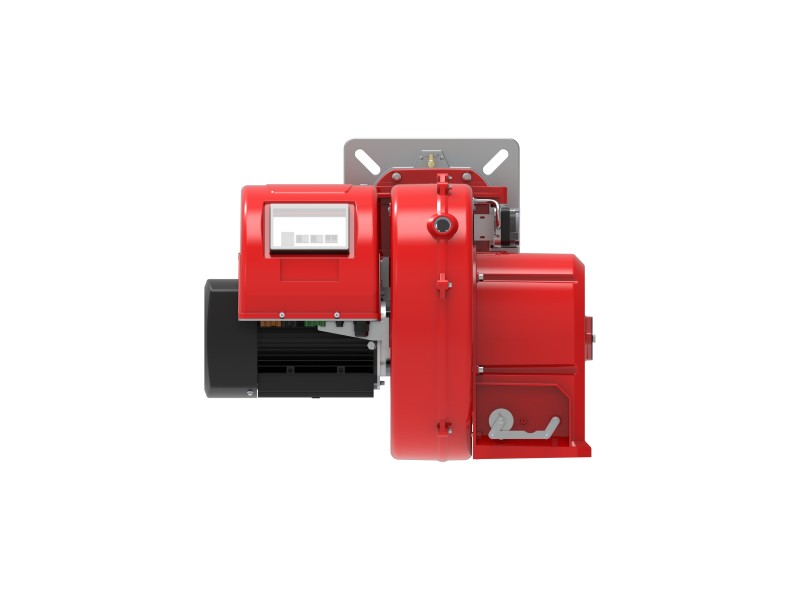

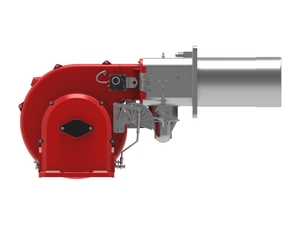

BTN210-250GC Series is a gas burner family for medium-to-large boiler and process heat applications, covering 470 to 2650 kW with two-stage, progressive, or modulating control.
Operating Modes
Two-stage; Progressive or modulating
Key Features
- Air and gas are mixed in the burner head for stable combustion.
- Combustion air and blast-pipe settings can be adjusted during commissioning.
- The hinged body can open from both sides, making maintenance access easier.
- Maximum and minimum air flow for the firing stages is controlled with high precision; the air damper closes fully at shutdown to reduce chimney heat loss.
- A cam-driven servomotor adjusts air and fuel delivery together.
- Fixed boiler coupling flange supports secure installation.
- Combustion air intake includes a throttle damper.
- Three-phase motor drives the fan.
- An ionization electrode monitors flame presence.
- Electrical protection rating is IP40.
General Specifications
| Model |
Article No. |
Power(kW) |
Power supply |
Motor power(kW) |
Package size(L*W*H/mm) |
Weight(kg) |
| BTN210GC |
202 22 058 |
470~2290 |
380V 50Hz |
4.5 |
1010x905x760 |
100.5 |
| BTN250GC |
202 22 059 |
600~2650 |
380V 50Hz |
5.5 |
1010x905x760 |
102 |

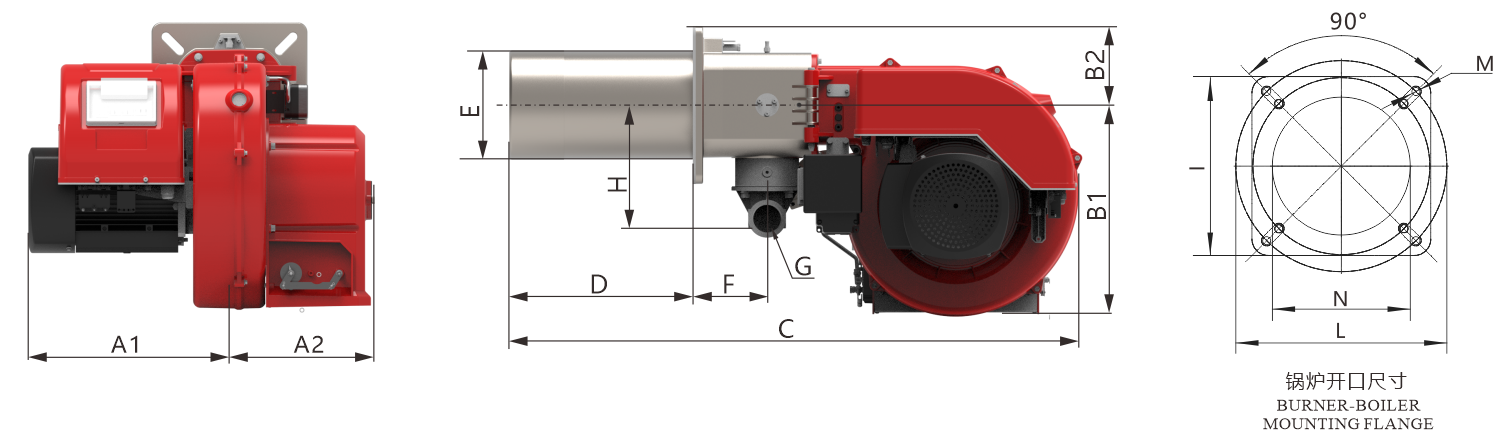

Dimensions
| Model |
A1(mm) |
A2(mm) |
B1(mm) |
B2(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
H(mm) |
I(mm) |
L(mm) |
M(mm) |
N(mm) |
| BTN210GC |
375 |
299 |
428 |
160 |
1165 |
373 |
222 |
151 |
G2" |
231 |
320 |
290~370 |
4-M16 |
232 |
| BTN250GC |
395 |
299 |
428 |
160 |
1165 |
373 |
222 |
151 |
G2" |
231 |
320 |
290~370 |
4-M16 |
232 |

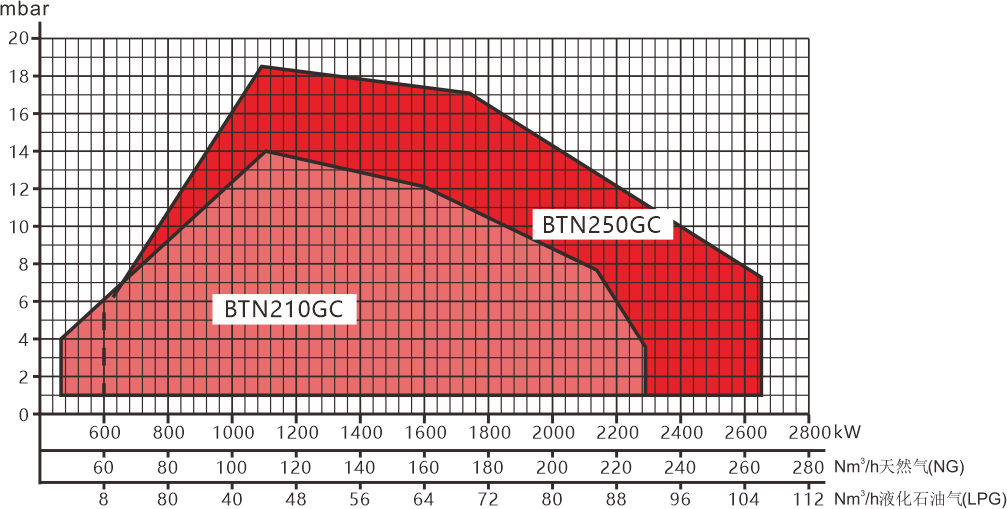

Performance Curve
