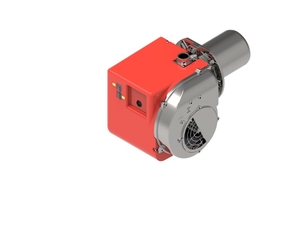

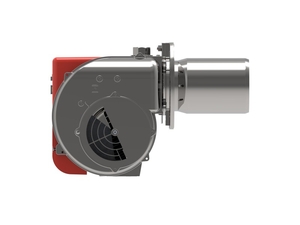

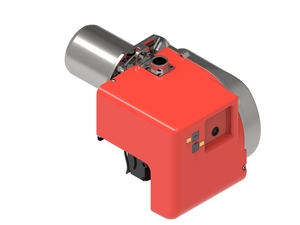

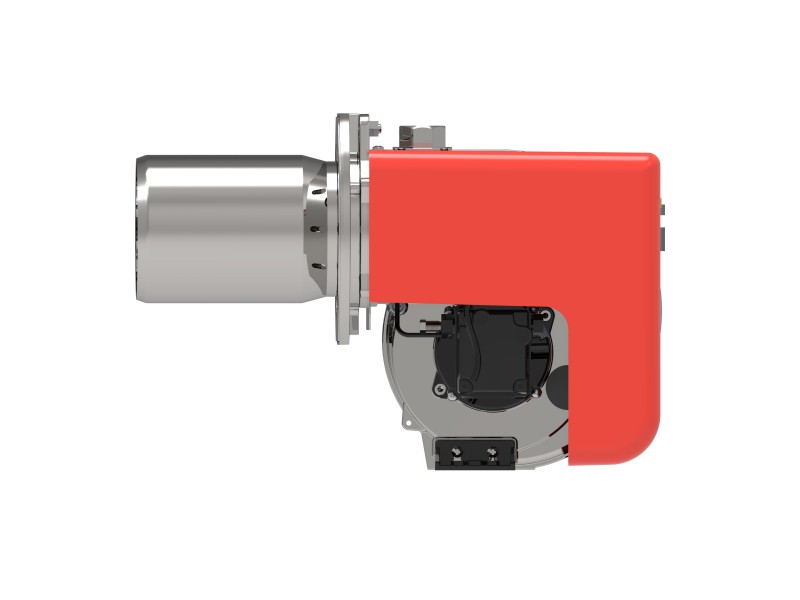

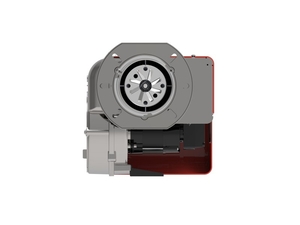

BTN15-30GL Series Dual Fuel Burner is a dual fuel burner family for gas and light oil boiler and process heat applications, covering the 50 to 280 kW output range.
Operating Modes
Single-stage
Key Features
- Dual fuel operation supports gas firing together with light oil firing.
- Combustion air and burner-head settings can be adjusted during commissioning.
- The hinged body design supports easier inspection and maintenance.
- Servo-motor air control supports staged or modulating operation according to model configuration.
- Light-oil variants support pressure atomization and dual-fuel firing.
- A flange and high-temperature insulation pad are used for boiler connection.
- Combustion air intake includes a throttle damper.
- Single-phase motor drives the fan.
- Flame supervision is provided by ionization electrode and photoelectric or ultraviolet flame detection.
- Electrical protection rating is IP40.
General Specifications
| Model |
Article No. |
Power(kW) |
Power supply |
Motor power(kW) |
Package size(L*W*H/mm) |
Weight(kg) |
| BTN15GL |
202 23 013 |
50~160 |
230V 50Hz |
0.2 |
525X365X380 |
12 |
| BTN20GL |
202 23 014 |
60~205 |
230V 50Hz |
0.2 |
525X365X380 |
12 |
| BTN30GL |
202 23 015 |
100~280 |
230V 50Hz |
0.25 |
525X365X380 |
12.5 |

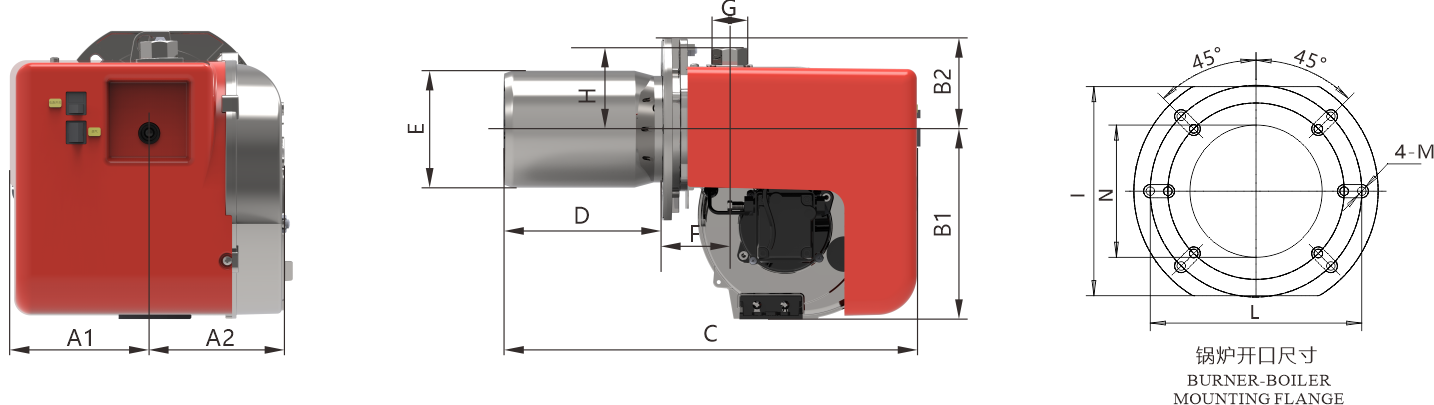

Dimensions
| Model |
A1(mm) |
A2(mm) |
B1(mm) |
B2(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
H(mm) |
I(mm) |
L(mm) |
N(mm) |
| BTN15GL |
157 |
137 |
204 |
98 |
438 |
162 |
114 |
72 |
G1" |
144 |
195-220 |
160-190 |
124 |
| BTN20GL |
157 |
137 |
204 |
98 |
445 |
169 |
125 |
72 |
G1" |
144 |
195-220 |
160-190 |
135 |
| BTN30GL |
157 |
137 |
204 |
98 |
445 |
169 |
125 |
72 |
G1" |
144 |
195-220 |
160-190 |
135 |

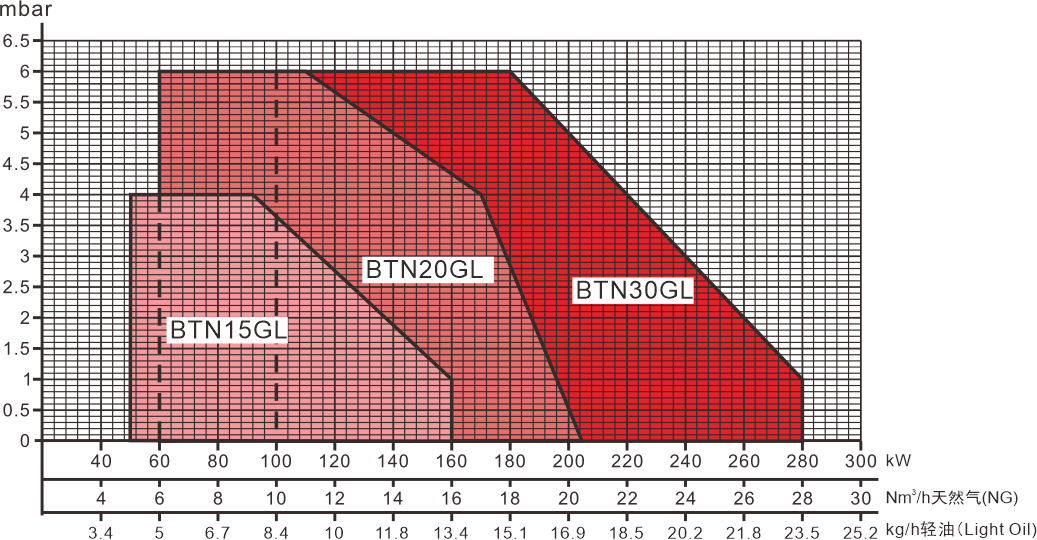

Performance Curve
