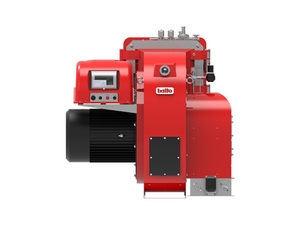

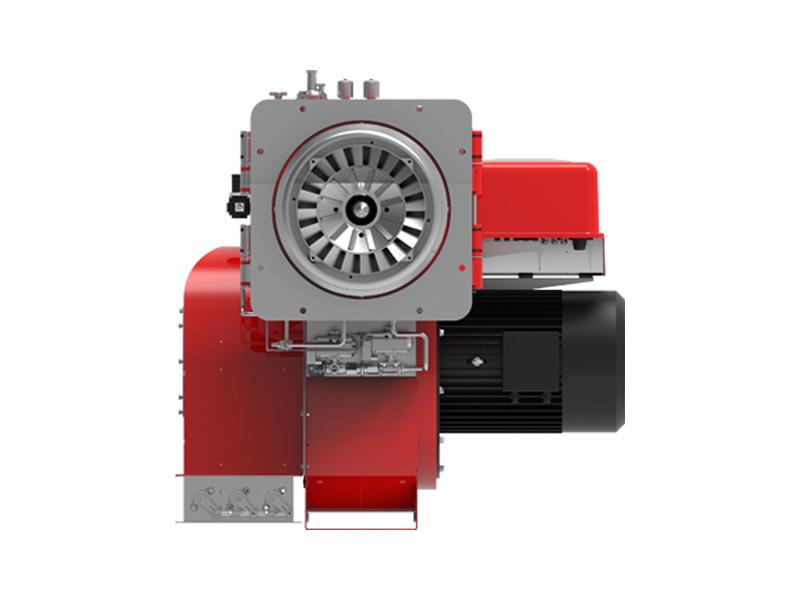

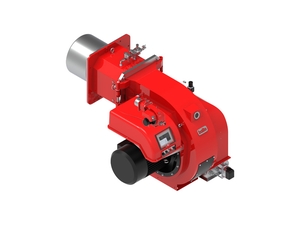

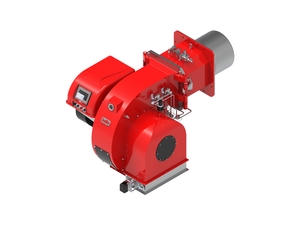

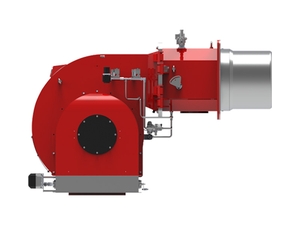

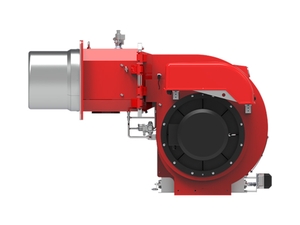

BTN1200-1800 Heavy Oil Burner

BTN1200-1800HC HAE Series is a heavy oil burner family for boiler and industrial heat applications, covering the 1715 to 17500 kW output range with staged or electronic modulation configurations.

Operating Modes

Modulation; Electronic modulation

Key Features

• Air atomization supports stable heavy-oil preparation for combustion.
• Combustion air and head settings can be adjusted for optimized combustion.
• The hinged body opens from both sides for easier maintenance.
• Progressive or proportional versions use a servomotor for first- and second-stage air-flow regulation.
• Electronic proportional control uses two servomotors to regulate fuel and air independently.
• When firing pauses, the damper closes to reduce heat loss in the furnace.
• A cam-driven servomotor can adjust air and fuel supply together.
• A flange and high-temperature insulation pad are used for boiler connection.
• The air inlet is designed with noise reduction.
• High-temperature stainless-steel flame disc supports durable operation.
• An independent heavy-oil electric heater group and three-phase motor drive the oil pump.
• Light resistance monitors flame presence.
• Electrical protection rating is IP40.

General Specifications

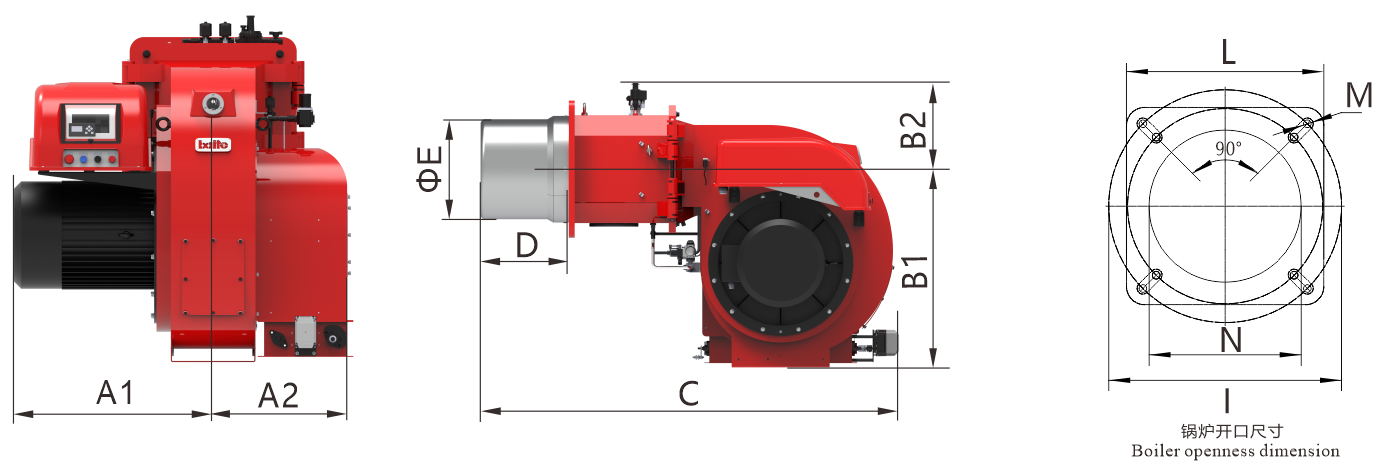

Dimensions

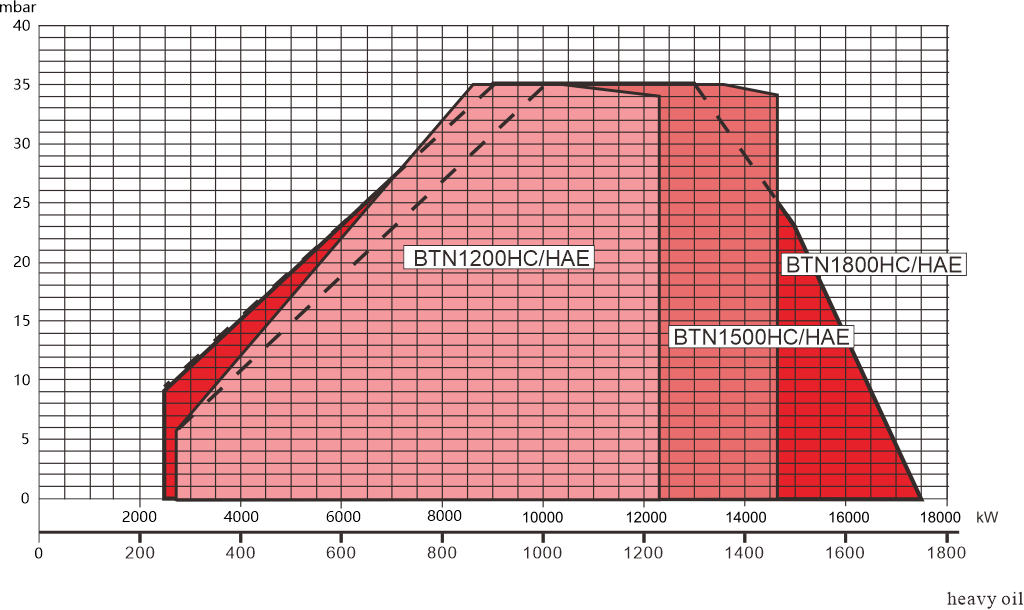

Performance Curve
