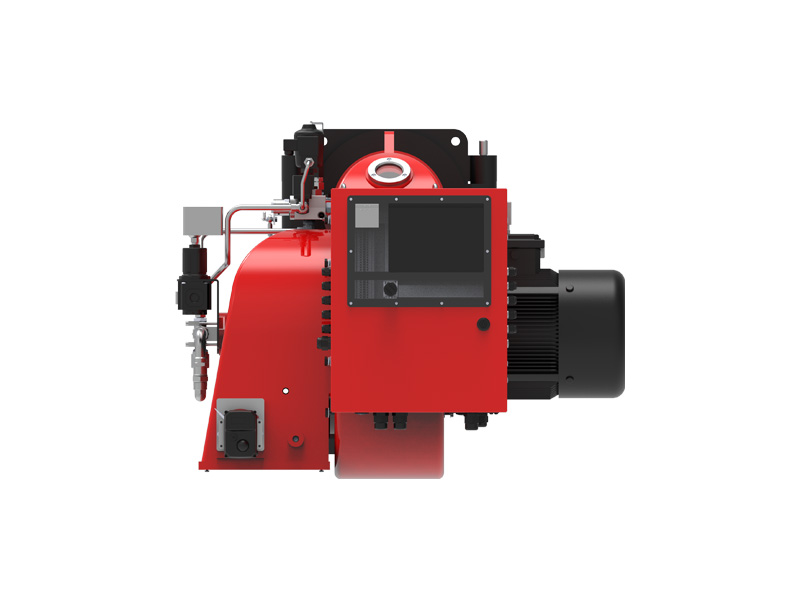

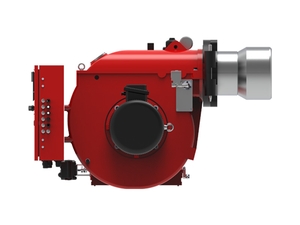

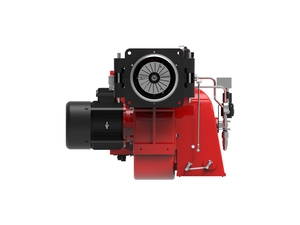

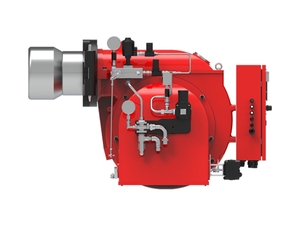

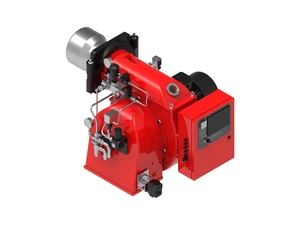

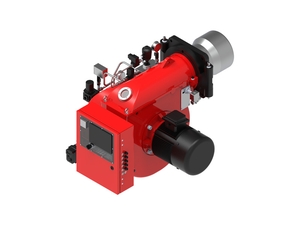

BT30-60HAE Series is a heavy oil burner family for boiler and industrial heat applications, covering the 1220 to 5600 kW output range with staged or electronic modulation configurations.
Operating Modes
Electronic modulation; Electronic version without heating tank
Key Features
Air or steam atomization supports stable heavy-oil preparation for combustion.
Combustion air and blast-pipe adjustment help tune combustion values on site.
The hinged body opens from both sides for easier service access.
The atomization unit can be removed without taking the burner off the boiler, simplifying maintenance.
When firing pauses, the throttle closes to reduce furnace heat loss.
The electronic modulation type uses two servo motors to control the proportional regulation of fuel and air respectively.
The fuel circuit includes a regulator and stop valve.
The fuel pre-heater includes a thermometer and adjustable temperature controller.
One flange and one insulating seal are supplied for boiler fastening.
Combustion air intake includes an air-flow adjustment device.
Adjustable burner head uses a steel gas pipe and diffuser.
A three-phase motor drives the fan.
A photocell monitors flame presence.
Electrical protection rating is IP40.
General Specifications
Model
Article No.
Power(kW)
Power supply
Motor power(kW)
Package size(L*W*H/mm)
Weight(kg)
BT30HAE
201 21 206
1220~3350
380V 50Hz
7.5
1296x1046x1177
265
BT30HAE-A
201 21 216
1296x1046x977
232
BT40HAE
201 21 205
1280~3950
9
1296x1046x1177
265
BT40HAE-A
201 21 215
1296x1046x977
260
BT60HAE
201 21 209
1840~5600
12.5
2010x1080x1279
335
BT60HAE-A
201 21 219
1860x1080x1079
Dimensions
Model
A1(mm)
A2(mm)
B1(mm)
B2(mm)
C(mm)
D(mm)
E(mm)
F(mm)
N(mm)
L(mm)
I(mm)
M(mm)
BT30HAE
447.3
495
754
181
1197
268
260
264
280
393
330
4-M16
BT40HAE
BT60HAE
290
1727
445
365
325
380
520
580
6-M16

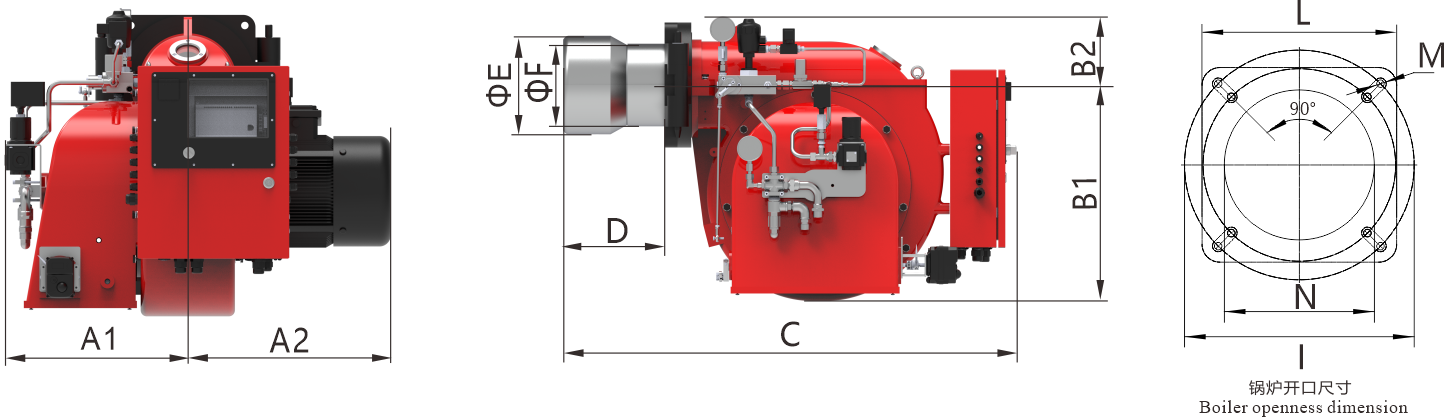

Burner outline and mounting dimensions for the BT30–60HAE family.

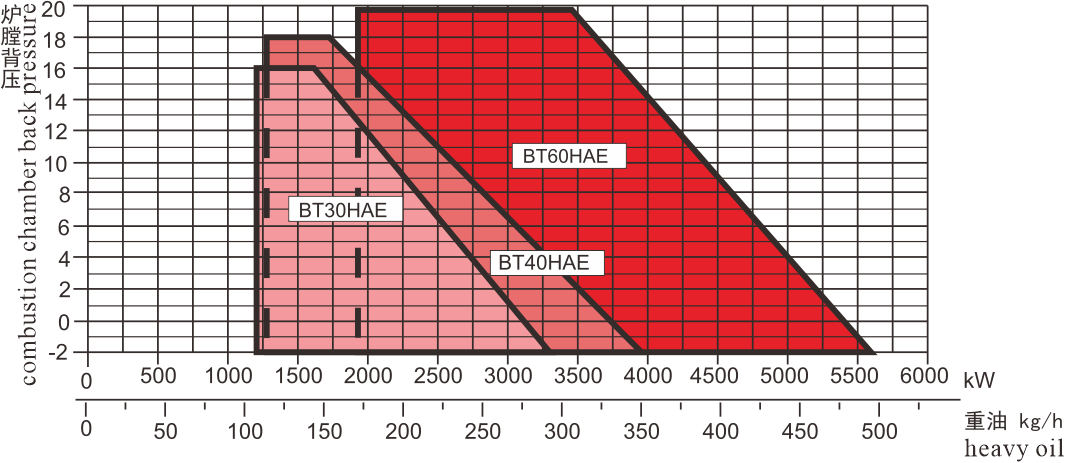

Performance Curve
Operating envelopes for the illustrated BT30HAE, BT40HAE and BT60HAE burners.
