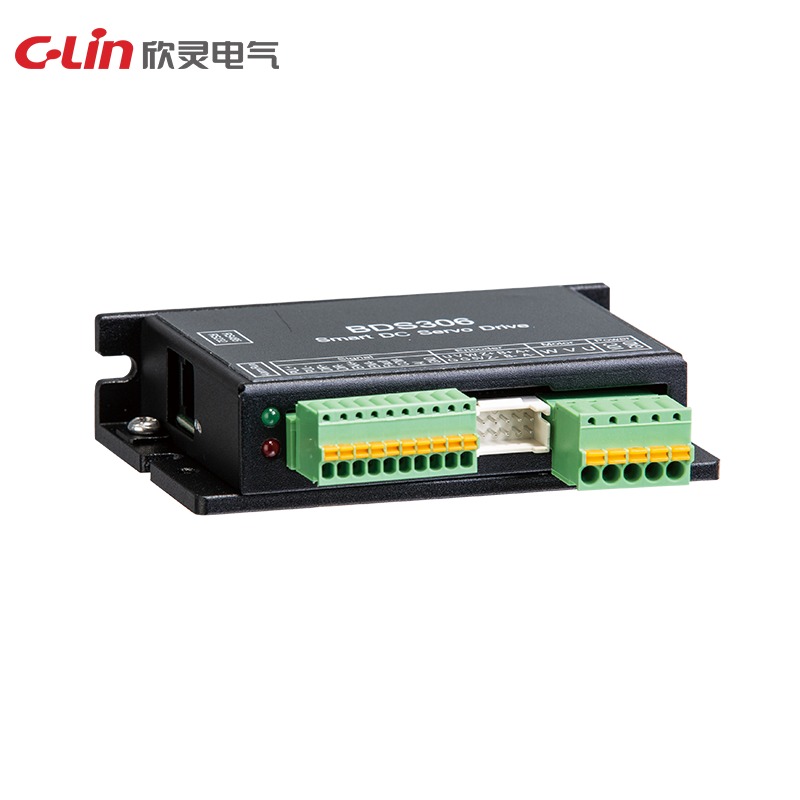

BDS306 is a compact servo drive for low-voltage motion-control equipment that needs position, speed or torque control in a narrow panel space. It uses DC24V input, supports RS232/RS485 communication and works with compound incremental encoder feedback.
| Parameter | Specification |
|---|---|
| Model | BDS306 |
| Input Voltage | DC24V |
| Output Current | 15A peak |
| Communication Interface | RS232 / RS485 |
| Encoder | Compound incremental encoder |
| Control Modes | Position mode, speed mode and torque mode |
| Protection Class | IP20 |
| Cooling Method | Natural cooling |
| Dimensions | 20.5 x 86 x 55 mm |
| Operating Environment | Indoor use; altitude 2000m or below without derating, derating required above 2000m; avoid corrosive gases and liquids |
