BD3-6 Split Type Low NOx Burner

BD 3-6 GE FGR Series Split Type Low NOx Burner View 1
BD 3-6 GE FGR Series Split Type Low NOx Burner View 2
BD 3-6 GE FGR Series Split Type Low NOx Burner View 3
BD 3-6 GE FGR Series Split Type Low NOx Burner View 4
BD 3-6 GE FGR Series Split Type Low NOx Burner View 5
BD 3-6 GE FGR Series Split Type Low NOx Burner View 6

Description

BD 3-6 GE FGR Series Split Type Low NOx Burner is a split type burner family for large boiler rooms, district heating, and industrial process heat applications, covering the 1200 to 7800 kW output range.

Operating Modes

Two-stage; Progressive modulation; Electronic modulation

Key Features

  • Split type layout supports large boiler rooms and process heat systems, including hot water boilers, steam boilers, and thermal oil furnaces.
  • The system can be matched with an induced draft fan according to firing capacity, boiler back pressure, and fuel conditions.
  • The program controller and flame detector include 24-hour flame signal self-checking.
  • A digital pipeline control system uses three servo motors to control combustion air, gas volume, and flue gas recirculation volume.
  • Flue gas recirculation mixes part of the exhaust gas with combustion air before combustion, lowering chamber temperature and oxygen concentration to suppress NOx formation.
  • Multiple nozzles distribute combustion and help reduce localized high-temperature oxidation.
  • The steel-welded sealed housing has an openable top cover for internal maintenance.
  • UV flame detectors are used for flame supervision.
  • Electrical protection rating is IP40.

General Specifications

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BD 3 GE FGR / 1200~3830 380V 50Hz / / /
BD 4 GE FGR / 1300~5000 380V 50Hz / / /
BD 6 GE FGR / 1400~7800 380V 50Hz / / /

Dimensions

Model A1(mm) A2(mm) B1(mm) B2(mm) C(mm) C1(mm) D(mm) E(mm) F(mm) G(mm) H(mm) K(mm)
BD 3 GE FGR 495 400 450 250 1765 700 540 312.5 178 DN65 527 710
BD 4 GE FGR 495 400 450 250 1765 700 540 312.5 178 DN65 527 710
BD 6 GE FGR 495 400 450 250 1775 710 545 336 178 DN65 527 710
Model I(mm) L(mm) M(mm) N(mm) R(mm) R1(mm) S(mm) S1(mm) T(mm) T1(mm) U(mm) U1(mm) V(mm)
BD 3 GE FGR 400 452 4-M16 350 409 311 400 323 370 260 370 260 12-Φ12
BD 4 GE FGR 400 452 4-M16 350 409 311 400 323 370 260 370 260 12-Φ12
BD 6 GE FGR 400 452 4-M16 350 409 311 400 323 370 260 370 260 12-Φ12

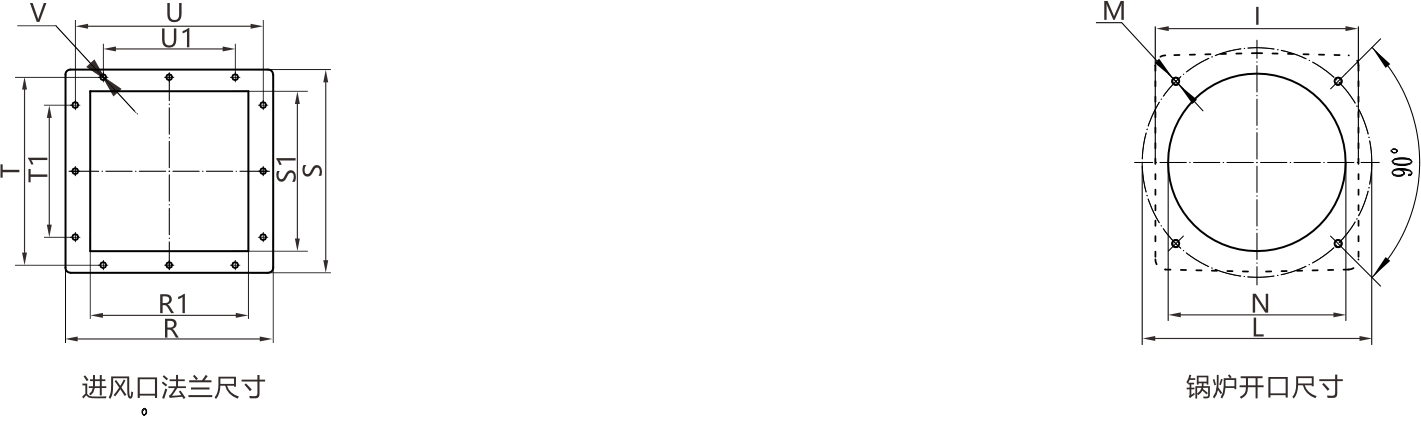

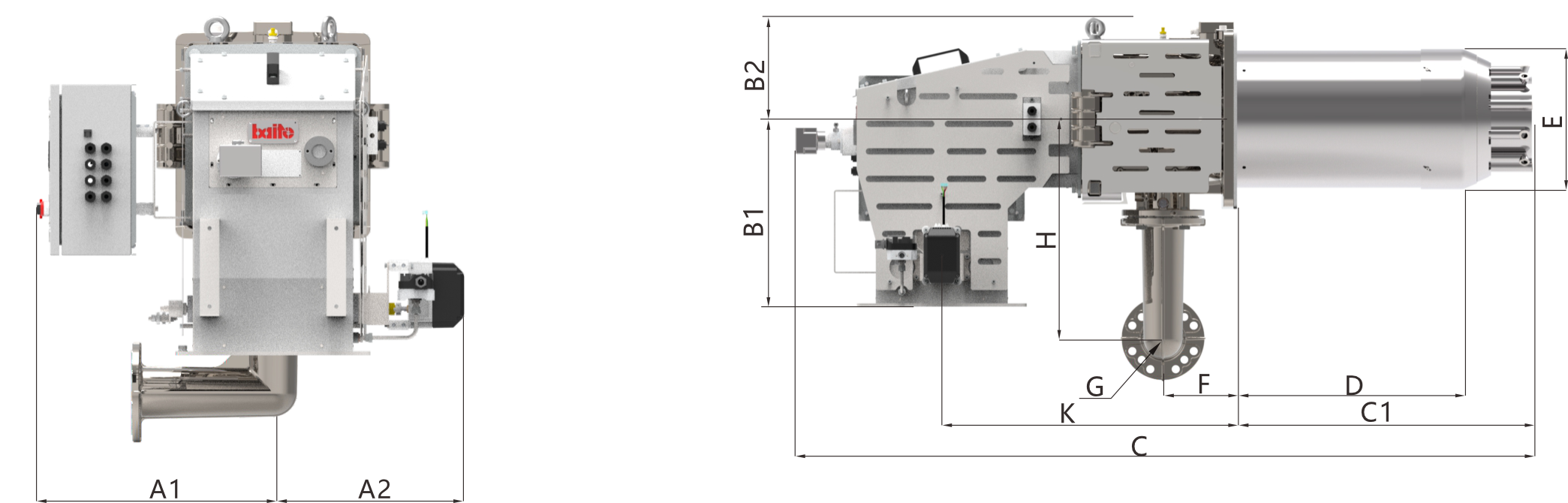

BD 3-6 GE FGR Series Burner DimensionsBD 3-6 GE FGR Series Boiler Opening
