BD 16-20 Split Type Low NOx Burner

BD 16-20 GE FGR Series Split Type Low NOx Burner View 1
BD 16-20 GE FGR Series Split Type Low NOx Burner View 2
BD 16-20 GE FGR Series Split Type Low NOx Burner View 3
BD 16-20 GE FGR Series Split Type Low NOx Burner View 4
BD 16-20 GE FGR Series Split Type Low NOx Burner View 5
BD 16-20 GE FGR Series Split Type Low NOx Burner View 6

Description

BD 16-20 GE FGR Series Split Type Low NOx Burner is a split type burner family for large boiler rooms, district heating, and industrial process heat applications, covering the 3000 to 20000 kW output range.

Operating Modes

Two-stage; Progressive modulation; Electronic modulation

Key Features

  • Split type layout supports large boiler rooms and process heat systems, including hot water boilers, steam boilers, and thermal oil furnaces.
  • The system can be matched with an induced draft fan according to firing capacity, boiler back pressure, and fuel conditions.
  • The program controller and flame detector include 24-hour flame signal self-checking.
  • A digital pipeline control system uses three servo motors to control combustion air, gas volume, and flue gas recirculation volume.
  • Flue gas recirculation mixes part of the exhaust gas with combustion air before combustion, lowering chamber temperature and oxygen concentration to suppress NOx formation.
  • Multiple nozzles distribute combustion and help reduce localized high-temperature oxidation.
  • The steel-welded sealed housing has an openable top cover for internal maintenance.
  • UV flame detectors are used for flame supervision.
  • Electrical protection rating is IP40.

General Specifications

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BD 16 GE FGR / 3000~16000 380V 50Hz / / /
BD 20 GE FGR / 4000~20000 380V 50Hz / / /

Dimensions

Model A1(mm) A2(mm) B1(mm) B2(mm) C(mm) C1(mm) D(mm) E(mm) F(mm) G(mm) H(mm) K(mm)
BD 16 GE FGR 510.5 474.5 761 575 2135 853 542 544 250 DN100 / 850
BD 20 GE FGR 510.5 474.5 761 575 2135 853 561 590 250 DN100 / 850
Model I(mm) L(mm) M(mm) N(mm) R(mm) R1(mm) S(mm) S1(mm) T(mm) T1(mm) U(mm) U1(mm) V(mm)
BD 16 GE FGR Φ750 700 4-M16 560 542 452 652 559 620 520 510 410 12-Φ11
BD 20 GE FGR Φ750 700 4-M16 560 542 452 652 559 620 520 510 410 12-Φ11

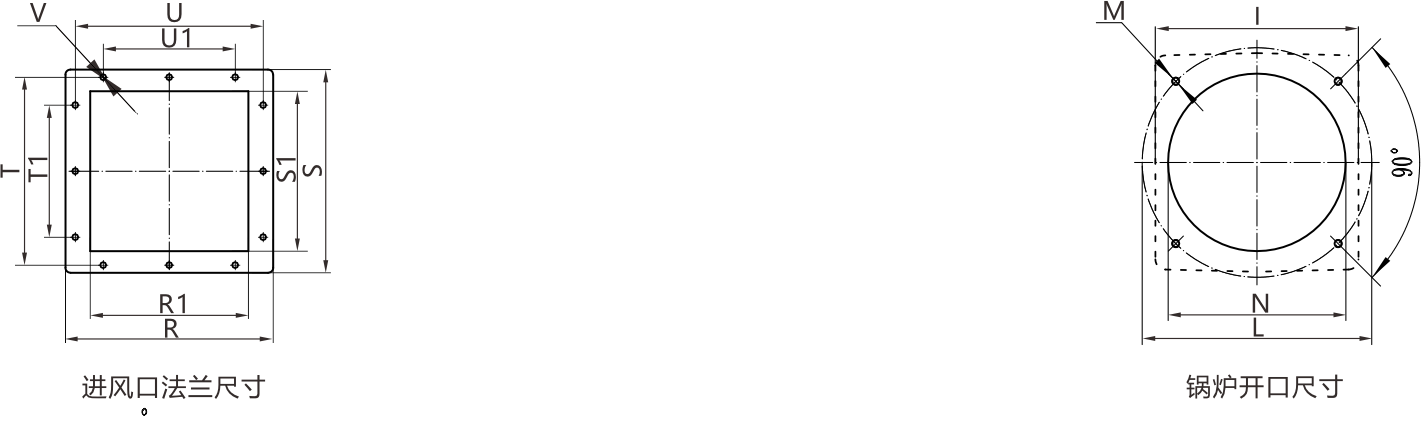

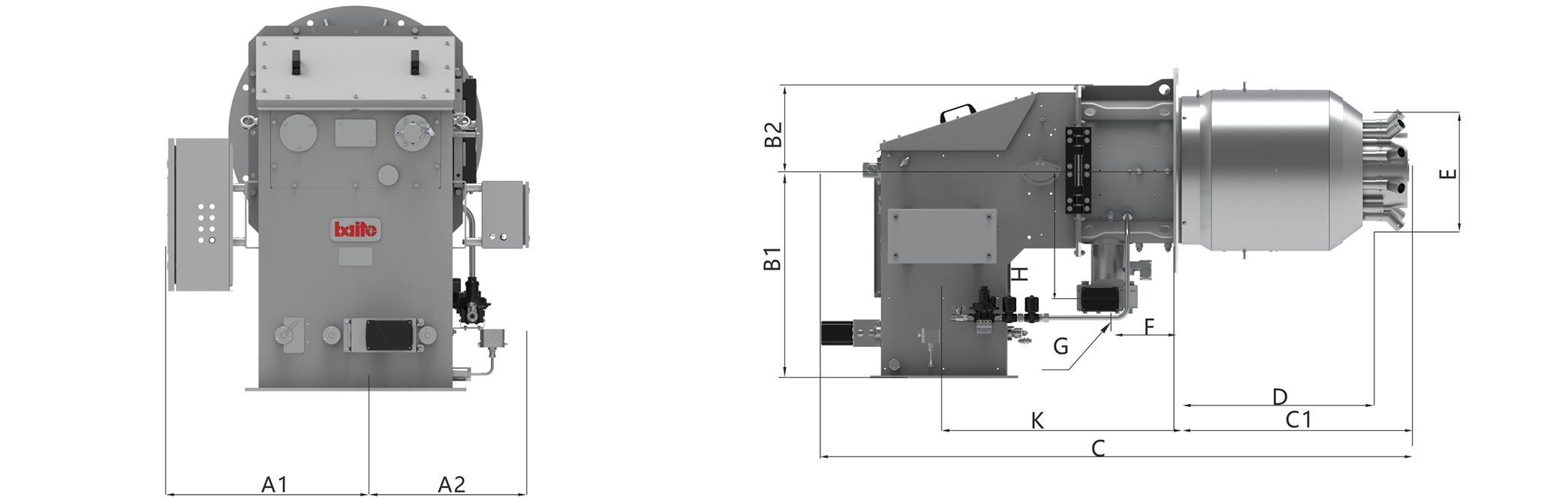

BD 16-20 GE FGR Series Burner DimensionsBD 16-20 GE FGR Series Boiler Opening
