BB Solderless Breadboards with 270 to 3220 Tie Points

Description

Solderless circuit prototyping

BB474A through BB474O cover compact breadboards, single-matrix boards and larger assemblies with aluminium baseboards and binding posts. The contact grid is 2.54mm. Select the matrix arrangement, distribution-strip placement and mounting envelope together with the total tie-point count.

Tie points are insertion holes, not independent circuit nodes. The drawings below show physical layouts and dimensions; they do not define a complete internal continuity map or guarantee continuity across gaps in distribution strips. Check the required connections and rail breaks before wiring a circuit.

Model	Total tie points	Main matrix sections	Distribution-strip arrangement shown	Support and terminals
ULO-BB474A	270	One compact split matrix	Along both outer edges	Insulator and adhesive backing; mounting holes
ULO-BB474B	630	One split matrix	No separate outer distribution strips shown	Insulator and adhesive backing
ULO-BB474C	690	One split matrix	Along both outer edges	Insulator and adhesive backing; mounting holes
ULO-BB474D	700	One split matrix	Along both outer edges	Insulator and adhesive backing; mounting holes
ULO-BB474E	760	One split matrix	Along both outer edges	Insulator and adhesive backing; mounting holes
ULO-BB474F	830	One split matrix	Separate strips along both outer edges	Insulator and adhesive backing
ULO-BB474G	840	One split matrix	Separate strips along both outer edges	Insulator and adhesive backing
ULO-BB474H	1360	Two split matrices	Between matrices	Aluminium baseboard, insulating layer, adhesive tape and binding posts
ULO-BB474I	1440	Two split matrices	Between matrices	Aluminium baseboard, insulating layer, adhesive tape and binding posts
ULO-BB474J	1540	Two split matrices	Between matrices and at one outer edge	Aluminium baseboard, insulating layer, adhesive tape and binding posts
ULO-BB474K	1640	Two split matrices	Between matrices and at both outer edges	Aluminium baseboard, insulating layer, adhesive tape and binding posts
ULO-BB474L	2360	Three split matrices	Between matrices, at outer edges and along one end	Aluminium baseboard, insulating layer, adhesive tape and binding posts
ULO-BB474M	2390	Three split matrices	Between matrices, at outer edges and along one end	Aluminium baseboard, insulating layer, adhesive tape and binding posts
ULO-BB474N	3180	Four split matrices	Between matrices, at outer edges and along one end	Aluminium baseboard, insulating layer, adhesive tape and binding posts
ULO-BB474O	3220	Four split matrices	Between matrices, at outer edges and along one end	Aluminium baseboard, insulating layer, adhesive tape and binding posts

Electrical, environmental and material data

Characteristic	BB474A through BB474O
Contact pitch	2.54mm
Contact impedance	≤100mΩ
Insulation impedance	1000MΩ; limit qualifier unspecified
Dielectric withstand test	500VAC RMS for 1 minute
Operating temperature	-20°C to +80°C
Insulating material	Thermoplastic, material group I
Flammability classification	UL94V-0 material grade
Contact material	Copper alloy
Contact finish	Full nickel plating
Housing colour	White

The 500VAC value is a short-duration dielectric test, not a continuous working-voltage rating. Rated current, working voltage and acceptable wire-size range are unspecified. The material flammability grade does not establish a product certification.

Ordering fields

Choose the exact BB474 suffix and its fixed tie-point count from the selection table. The remaining ordering fields are common to all 15 models. The model-specific diagrams retain the complete field sequence.

Field	Selection
Model	BB474A through BB474O, according to layout
Number of contacts	The fixed total associated with the selected model
Connector type	S: socket
Contact plating	N: full nickel
Housing colour	W: white

BB474A compact board

The 270-point board has an 82.26mm body length, 83.76mm length including the projection and 47.3mm overall width. Its mounting-hole centres are 70.26mm × 33.02mm, with Ø3.5mm holes and Ø6.0mm recesses. Overall thickness is 8.2mm.

BB474A ordering fields for the 270-point board — BB474A fixed count and socket, plating and colour codes.

BB474A compact matrix, mounting holes and side section — BB474A contact layout, mounting dimensions and adhesive-backed construction.

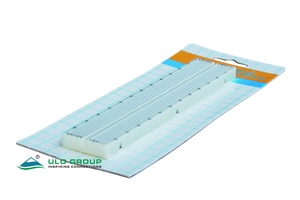

BB474B matrix board

The 630-point matrix measures 165mm × 37.1mm with an 8.4mm overall thickness. The central separation is 4.8mm; the board does not show separate outer distribution strips.

BB474B ordering fields for the 630-point board — BB474B fixed count and ordering fields.

BB474B matrix layout and adhesive-backed side section — BB474B matrix dimensions and backing arrangement.

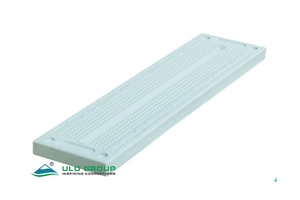

BB474C, BB474D and BB474E boards with mounting holes

Model	Tie points	Body length	Body width	Longitudinal mounting-hole centres	Thickness
BB474C	690	173.7mm	45.8mm	161.7mm	8.2mm
BB474D	700	176.24mm	45.8mm	164.24mm	8.2mm
BB474E	760	188.94mm	45.8mm	176.94mm	8.2mm

All three layouts show 33.02mm transverse mounting-hole spacing, Ø3.5mm mounting holes, Ø6mm recesses and a 2.54mm contact grid. Use the matching drawing for the individual matrix length.

BB474C ordering fields for 690 tie points — BB474C 690-point ordering arrangement.

BB474C board outline, contact layout and mounting holes — BB474C 173.7mm board and 161.7mm mounting centres.

BB474D ordering fields for 700 tie points — BB474D 700-point ordering arrangement.

BB474D board outline, contact layout and mounting holes — BB474D 176.24mm board and 164.24mm mounting centres.

BB474E ordering fields for 760 tie points — BB474E 760-point ordering arrangement.

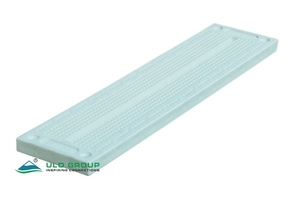

BB474E board outline, contact layout and mounting holes — BB474E 188.94mm board and 176.94mm mounting centres.

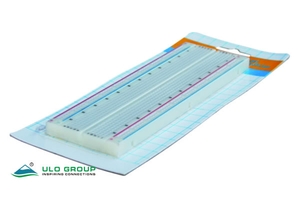

BB474F and BB474G modular boards

BB474F has 830 tie points, a 55.9mm overall width and 8.4mm thickness. Its 134mm dimension locates the indicated end features and is not an overall-length dimension. BB474G has 840 tie points and a 173mm × 65.6mm outline with 8.4mm thickness. Each layout includes a central split matrix and outer distribution strips.

BB474F ordering fields for 830 tie points — BB474F 830-point ordering fields.

BB474F matrix and outer distribution strips — BB474F physical layout, width and backing section.

BB474G ordering fields for 840 tie points — BB474G 840-point ordering fields.

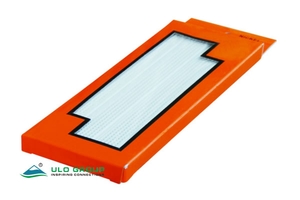

BB474G matrix and distribution-strip dimensions — BB474G 173mm board layout and 65.6mm overall width.

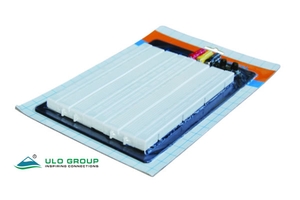

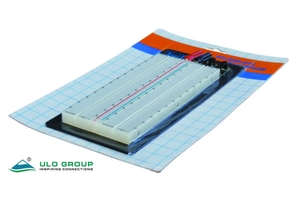

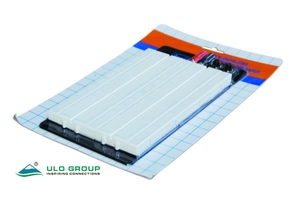

BB474H through BB474K two-matrix assemblies

These assemblies combine two split matrices with distribution strips, binding posts and an aluminium baseboard. BB474H uses the 165mm matrix format; BB474I, BB474J and BB474K show the 173mm format with different strip arrangements. Reference dimensions below describe the baseboard plan, not binding-post height.

Model	Tie points	Baseboard reference length	Baseboard reference width
BB474H	1360	230mm	110mm
BB474I	1440	235mm	131.8mm
BB474J	1540	235mm	144mm
BB474K	1640	235mm	156.2mm

BB474H ordering fields for 1360 tie points — BB474H 1360-point assembly ordering fields.

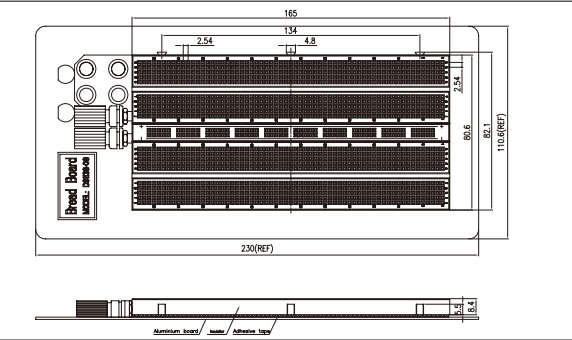

BB474H two-matrix layout, baseboard and binding posts — BB474H central distribution strips and 230mm × 110mm reference baseboard.

BB474I ordering fields for 1440 tie points — BB474I 1440-point assembly ordering fields.

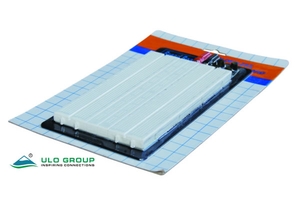

BB474I two-matrix layout with central distribution strips — BB474I binding-post arrangement and 235mm × 131.8mm reference baseboard.

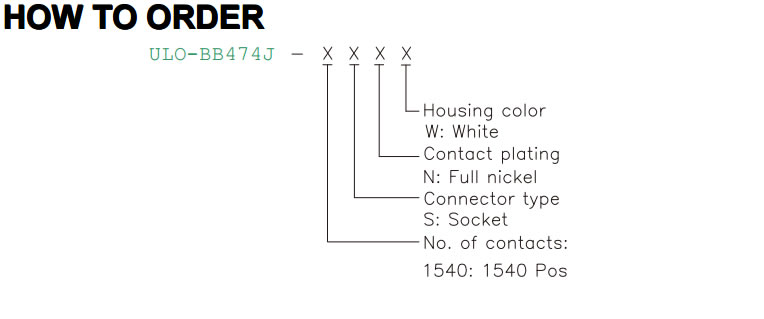

BB474J ordering fields for 1540 tie points — BB474J 1540-point assembly ordering fields.

BB474J matrices with central and outer distribution strips — BB474J strip placement and 235mm × 144mm reference baseboard.

BB474K ordering fields for 1640 tie points — BB474K 1640-point assembly ordering fields.

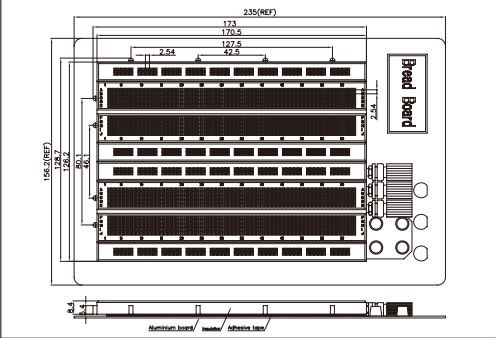

BB474K two-matrix assembly with distribution strips at both edges — BB474K expanded strip layout and 235mm × 156.2mm reference baseboard.

BB474L through BB474O larger assemblies

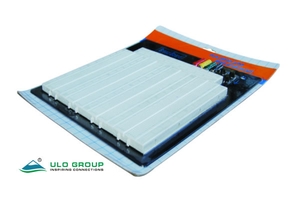

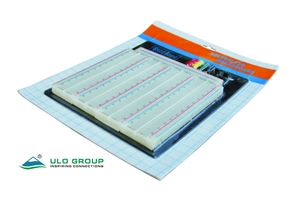

BB474L and BB474M have three main split matrices; BB474N and BB474O have four. Additional distribution strips run between matrices, around the outer edges and along the binding-post end. L and N use the 173mm matrix format, while M and O use the 165mm format. The drawings preserve the different rail placements and backing construction.

Model	Tie points	Main matrices	Baseboard reference length	Baseboard reference width
BB474L	2360	3	248mm	196mm
BB474M	2390	3	240mm	186mm
BB474N	3180	4	260mm	246mm
BB474O	3220	4	248mm	219mm

BB474L ordering fields for 2360 tie points — BB474L three-matrix assembly ordering fields.

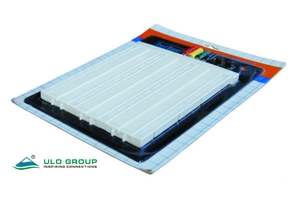

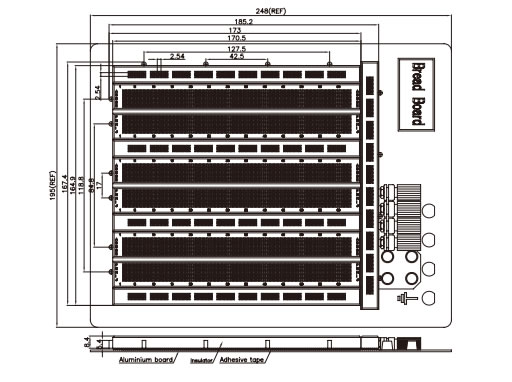

BB474L three matrices, distribution strips and binding-post baseboard — BB474L layout and 248mm × 196mm reference baseboard.

BB474M ordering fields for 2390 tie points — BB474M three-matrix assembly ordering fields.

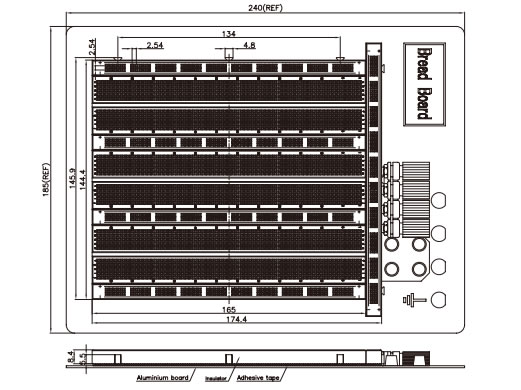

BB474M three matrices and transverse end strip — BB474M layout and 240mm × 186mm reference baseboard.

BB474N ordering fields for 3180 tie points — BB474N four-matrix assembly ordering fields.

BB474N four matrices, end strips and binding posts — BB474N layout and 260mm × 246mm reference baseboard.

BB474O ordering fields for 3220 tie points — BB474O four-matrix assembly ordering fields.

BB474O four-matrix layout and backing section — BB474O layout and 248mm × 219mm reference baseboard; the illustrated component indicates placement on the matrix.
