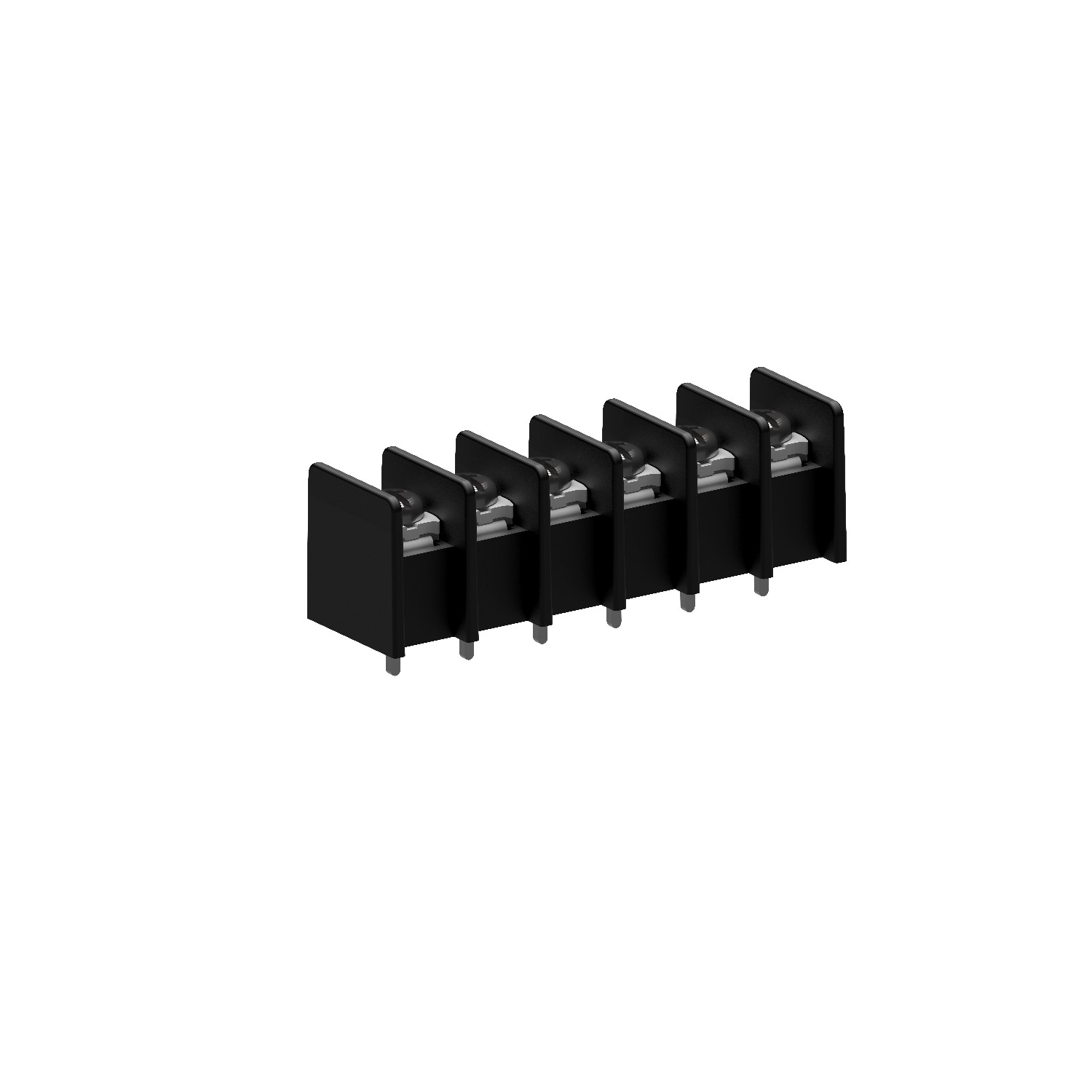

B76203 headers provide 7.62 mm terminal block connections in 2-, 3- or 6-position single-row layouts. Confirm the circuit count and mating terminal for the finished assembly.
| Connector system | Board-to-Board |
|---|---|
| Product role | Vertical header |
| Centerline | 7.62 mm |
| Positions / rows | 2, 3 or 6 / single row |
| Housing material | Black PBT UL94V-0 |
| Contact material and finish | Brass, tin plating |
| Maximum current / voltage | 15 A / 250 VAC/DC |
| Operating temperature | -25 °C to 125 °C |
| Screw torque | 0.5 N m |
| UL file | E364711 |
