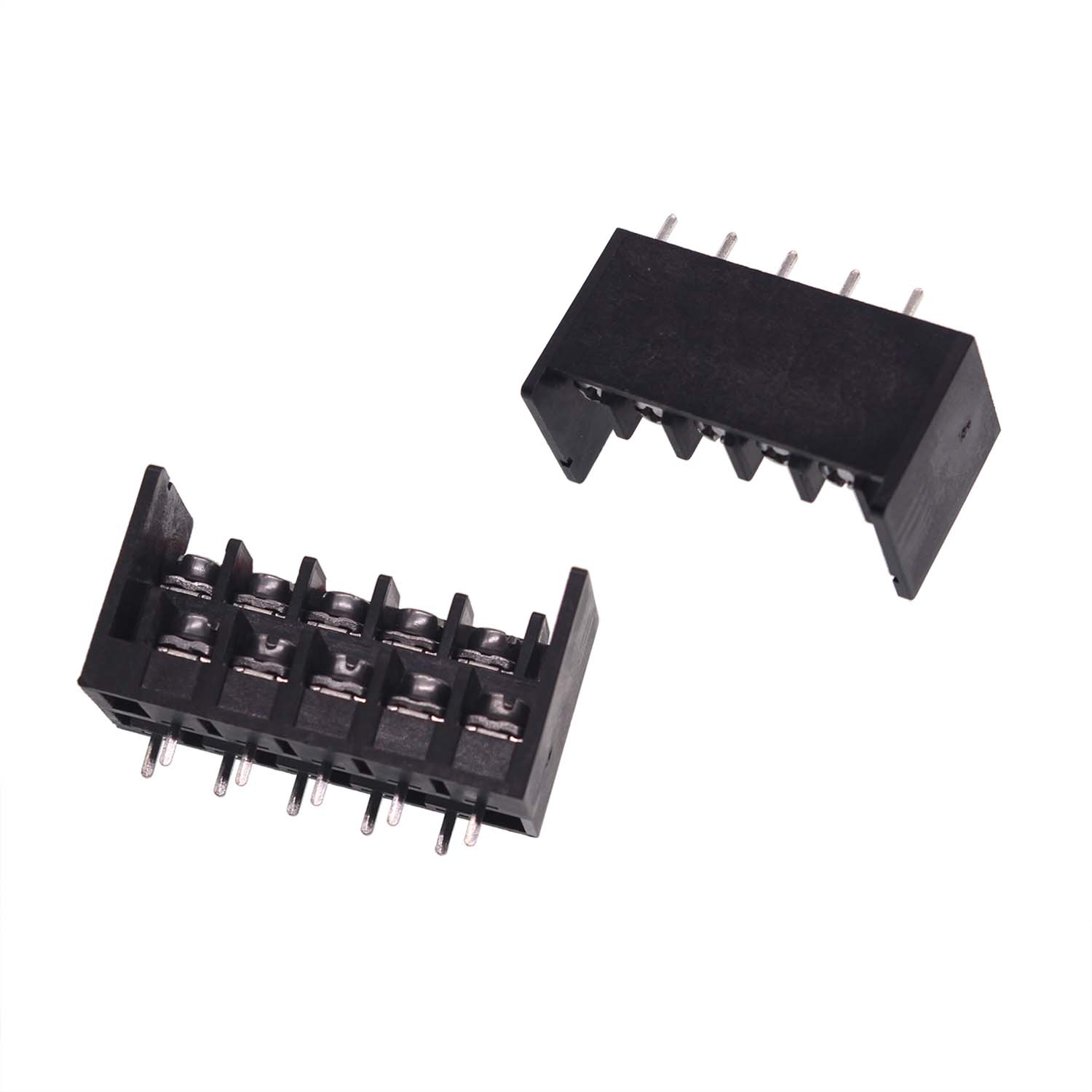

B76202 is a 7.62 mm double-row terminal block component family with vertical headers and matching terminals. Select the circuit count and component reference for the required connection.
| Connector system | Board-to-Board |
|---|---|
| Component roles | Vertical header and terminal |
| Centerline | 7.62 mm |
| Positions / rows | 4–24 / double row |
| Maximum current / voltage | 10 A / 300 VAC/DC |
| Wire range | 22–14 AWG |
| Materials | Black PBT with brass/tin header; phosphor bronze/tin terminal |
| Operating temperature | -25 °C to 105 °C header; -25 °C to 125 °C terminal |
| UL file | E364711 |
