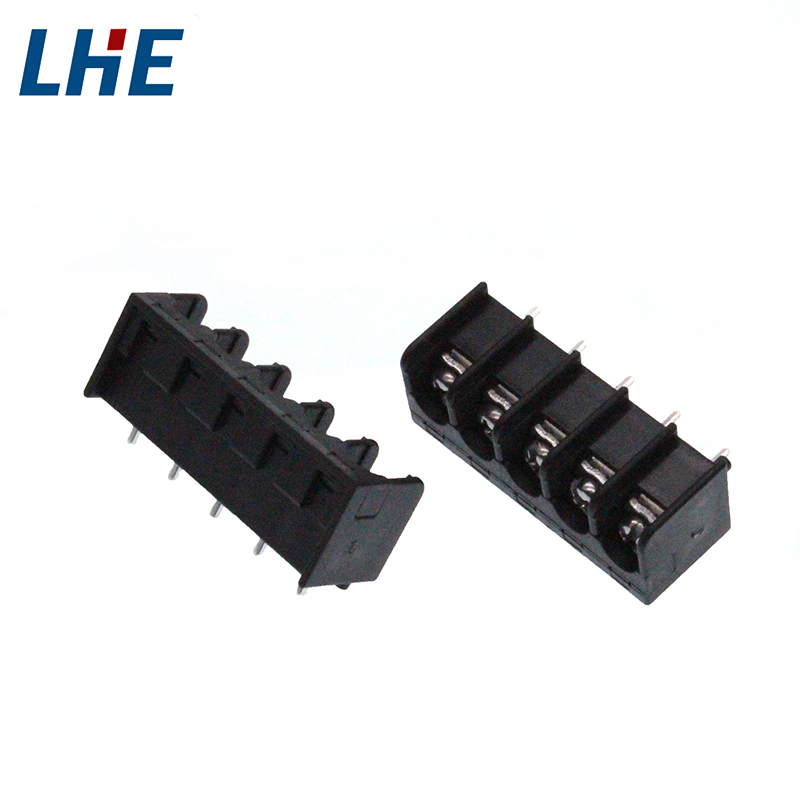

B76201 is a 7.62 mm terminal block component family with vertical headers and a matching terminal. Select the 2- or 5-position header and confirm the required component reference.
| Connector system | Board-to-Board |
|---|---|
| Component roles | Vertical header and terminal |
| Centerline | 7.62 mm |
| Positions / rows | 2 or 5 / single row |
| Maximum current / voltage | 20 A / 250 VAC/DC |
| Materials | Black PBT with brass/tin header; phosphor bronze/tin terminal |
| Operating temperature | -25 °C to 125 °C header; -25 °C to 105 °C terminal |
| Screw torque | 0.5 N m |
| UL file | E364711 |
