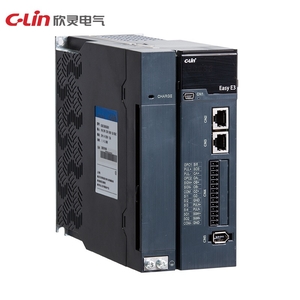

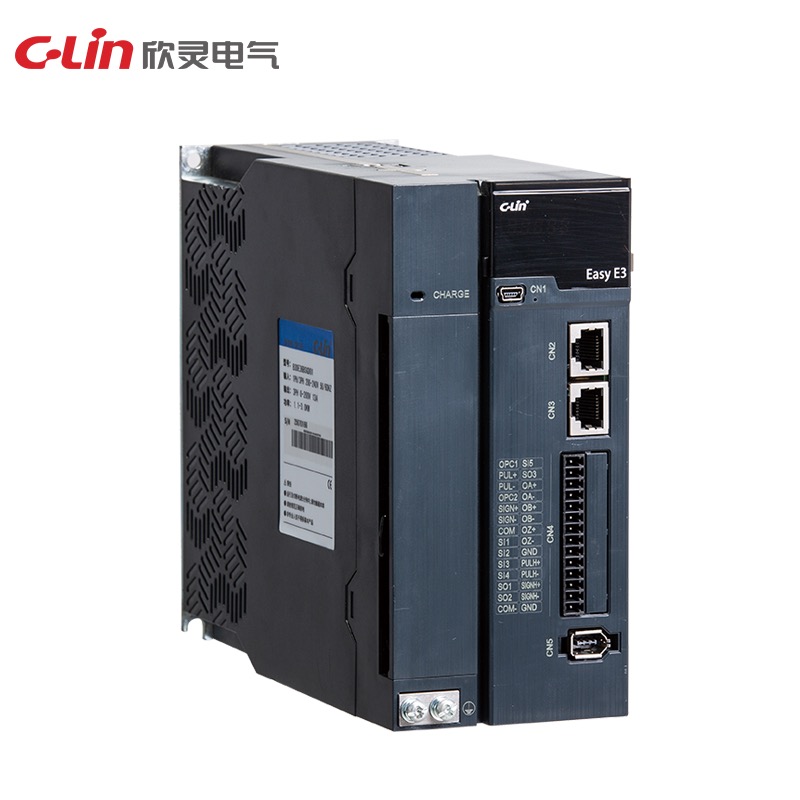

B3DE Series AC servo drivers are used for positioning and motion-control systems that need fast response, encoder feedback and selectable command interfaces. ABN and ASE use the same servo-drive platform; ABN is intended for EtherCAT motion control, while ASE is used for position and internal speed control.
Common Parameters
| Model coverage | 50W to 5.5kW |
|---|
| Input voltage options | Single-phase / three-phase AC200V and three-phase AC400V |
|---|
| Feedback interfaces | 2500-line encoders and 17/23-bit serial encoders |
|---|
| Response | Speed frequency response up to 1.2kHz |
|---|
| Positioning | Optional command smoothing for stable acceleration and deceleration |
|---|
| Reliability | Strong anti-interference capability; customization supported |
|---|
| Input voltage example | 1PH/3PH AC220V 50/60Hz |
|---|
| Rated power examples | 1300W, 1800W, 2300W |
|---|
| Rated torque examples | 8.28, 11.46, 14.64 N·m |
|---|
| Rated speed | 1500 r/min |
|---|
| Encoder | 17-bit, 23-bit |
|---|
| Overload capacity | 3 times or 2.5 times depending on model |
|---|
| Protection class | IP20 |
|---|
| Overall dimensions | 80×170×196mm |
|---|
| Cooling method | Forced air cooling |
|---|
| Application environment | Indoor use; altitude ≤2000m without derating; avoid corrosive gases and liquids |
|---|
B3DE ABN
| Control modes | EtherCAT: CSP / CSV / CST |
|---|
| Application focus | Networked motion-control systems |
|---|
B3DE ASE
| Control modes | Position control and internal speed control |
|---|
| Application focus | Pulse/position control and internal speed operation |
|---|
