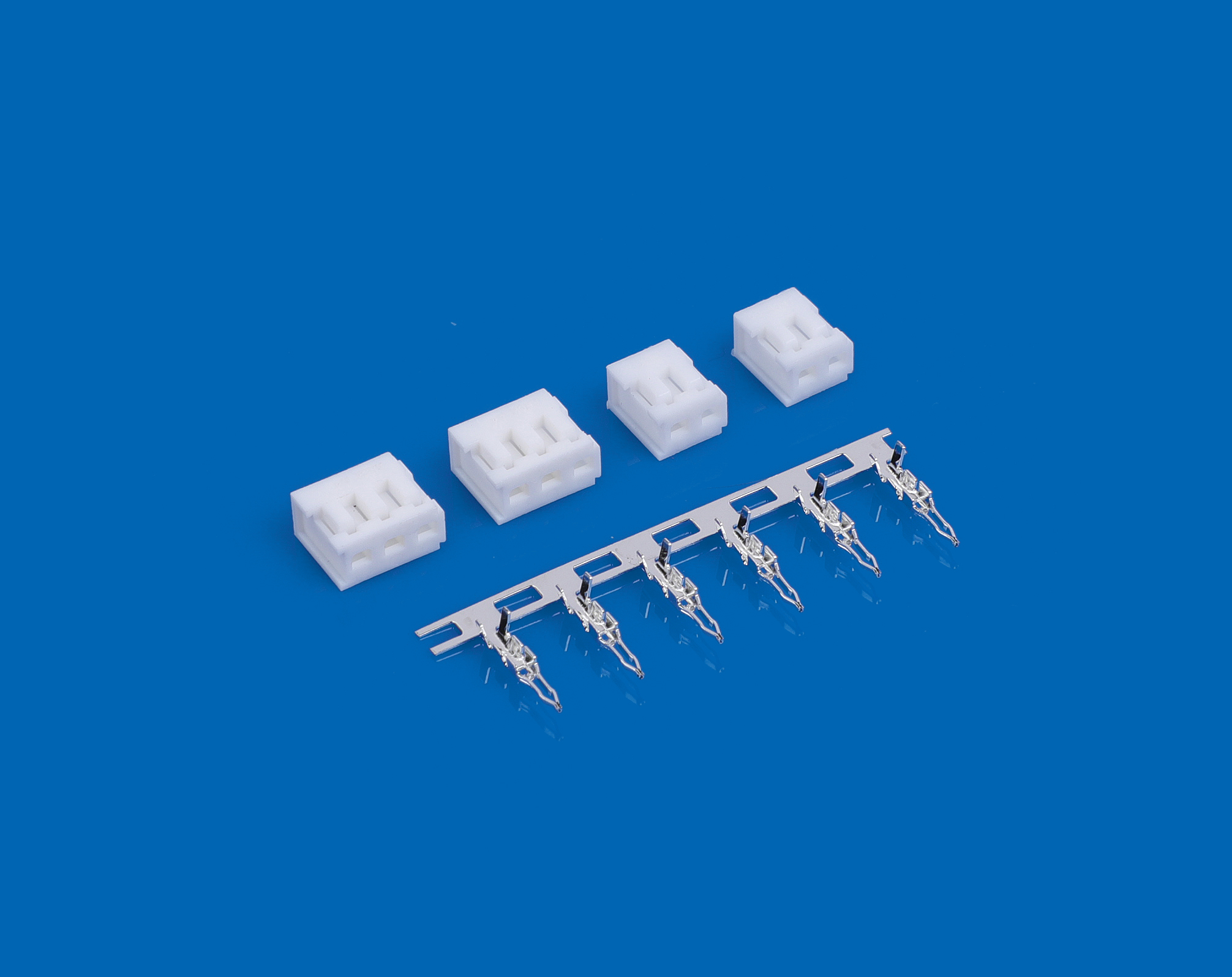

B2504 housings provide two- or three-position board-to-board interfaces on a 2.5 mm single-row centerline. Select the circuit count and confirm the compatible contact system for the assembly.
| Connector system | Board-to-Board |
|---|---|
| Product role | Housing |
| Centerline | 2.5 mm |
| Positions | 2 or 3 |
| Rows | Single row |
| Housing material | White nylon 66 UL94V-0 |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Packaging | Bag/carton |
