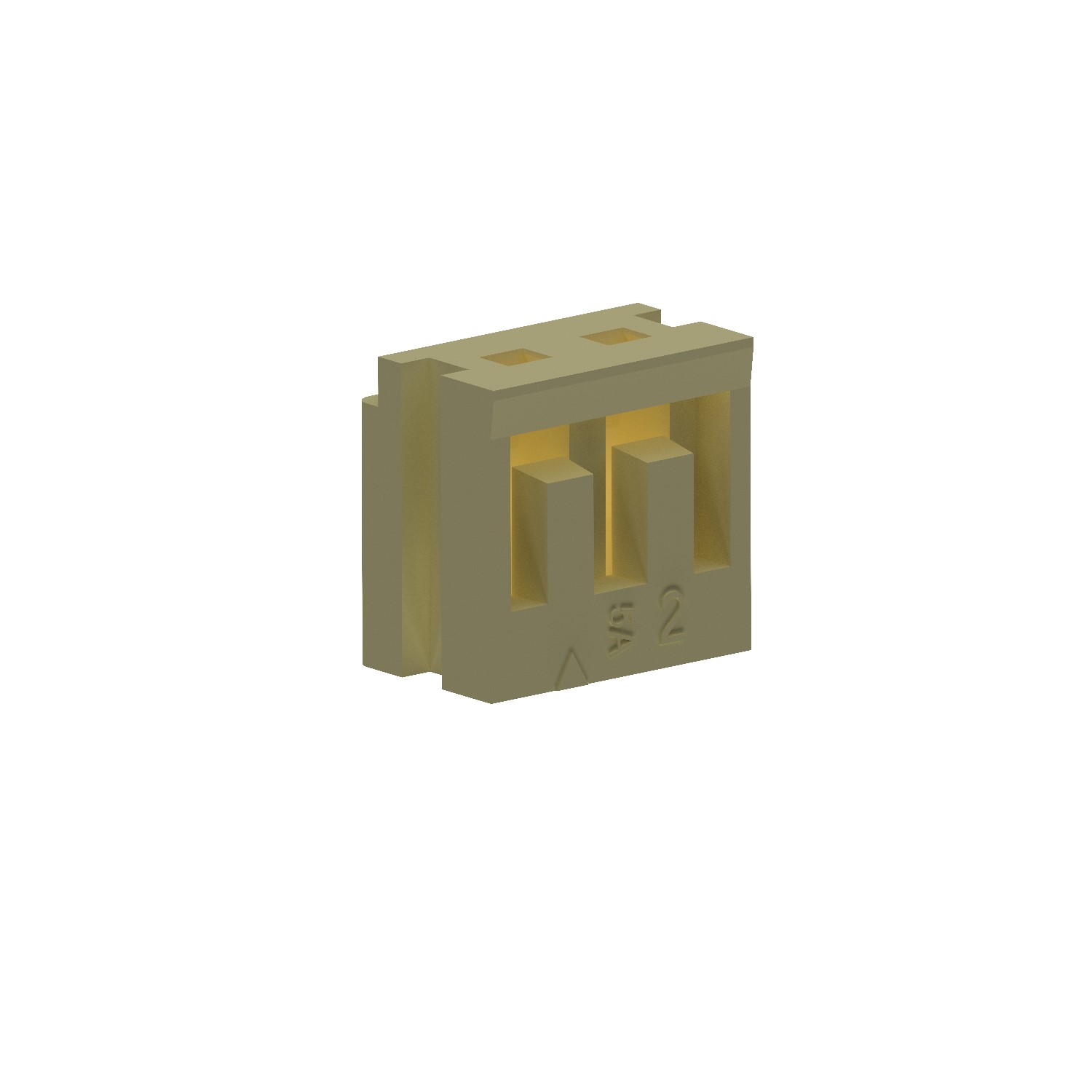

B2503-H02 is a two-position board-to-board housing with a 2.5 mm centerline. The white nylon 66 UL94V-0 body provides a single-row interface for the selected compatible contact system.
| Connector system | Board-to-Board |
|---|---|
| Product role | Housing |
| Centerline | 2.5 mm |
| Positions | 2 |
| Rows | Single row |
| Housing material | White nylon 66 UL94V-0 |
| Maximum current | 2 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Packaging | Bag/carton |
