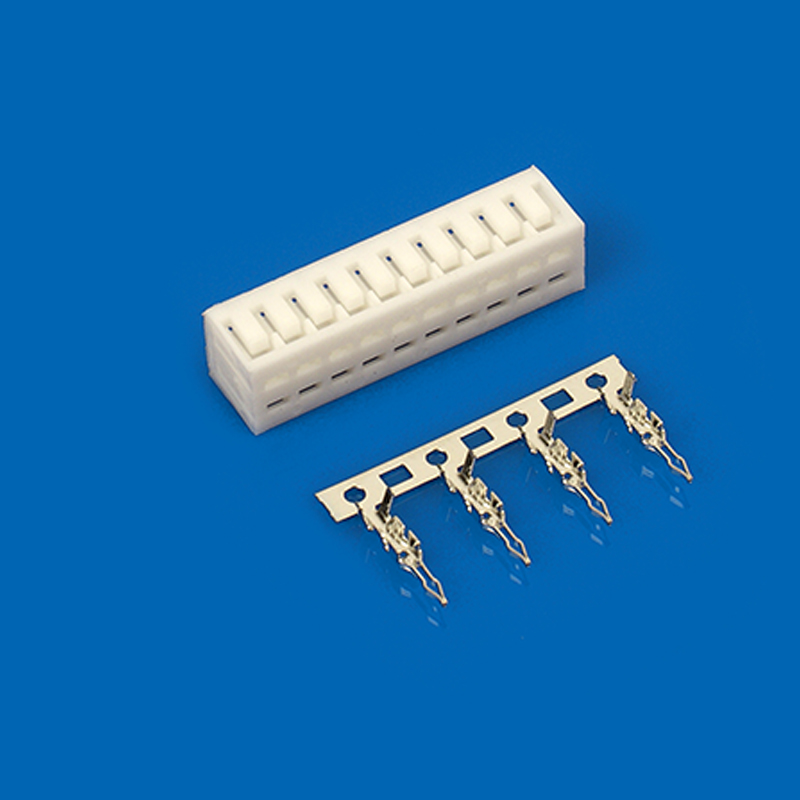

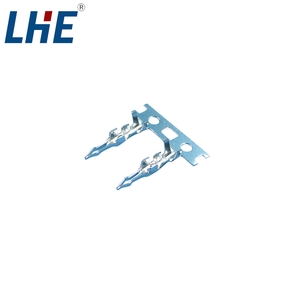

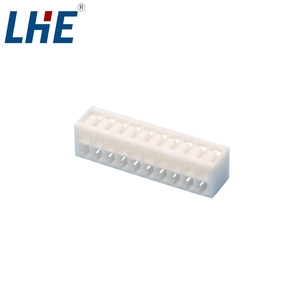

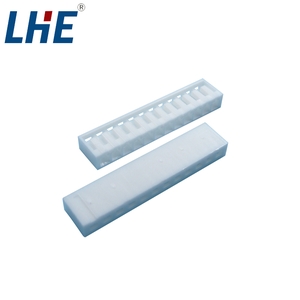

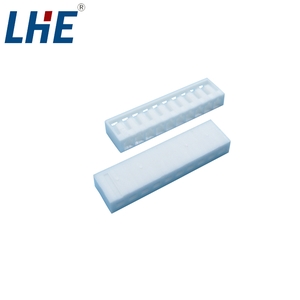

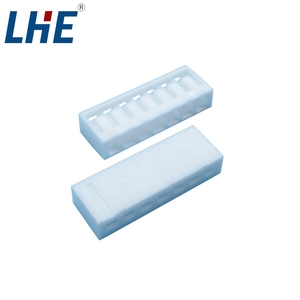

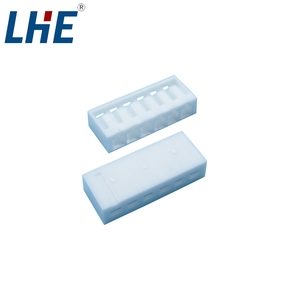

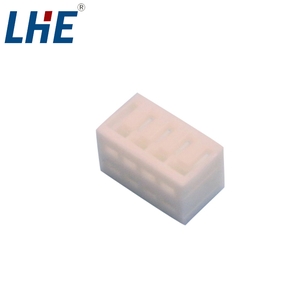

B2501 is a 2.5 mm board-to-board connector family with matching housings and crimp terminals. Select the circuit count and single- or double-row layout for the required assembly.
| Connector system | Board-to-Board |
|---|---|
| Component roles | Housing and terminal |
| Centerline | 2.5 mm |
| Positions | 3–30 |
| Rows | Single or double row |
| Housing material | White nylon 66 UL94V-0 |
| Contact material and finish | Phosphor bronze, tin plating |
| Wire range | 28–22 AWG |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Packaging | Bag/carton or reel |
