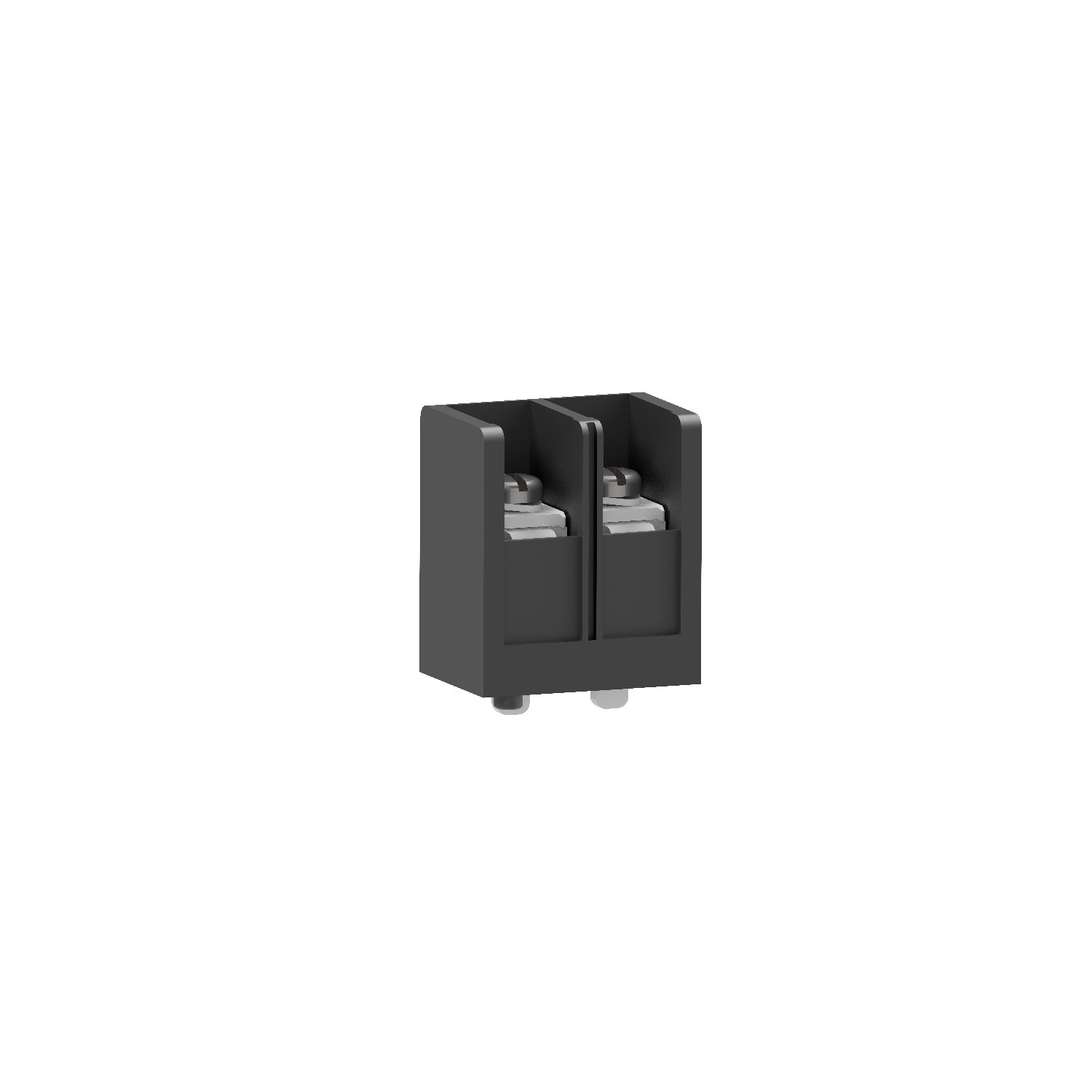

B14501 headers provide 14.5 mm terminal block connections in two- or three-position single-row layouts. Confirm the selected circuit count and mating terminal for the final assembly.
| Connector system | Board-to-Board |
|---|---|
| Product role | Vertical header |
| Centerline | 14.5 mm |
| Positions / rows | 2 or 3 / single row |
| Housing material | Black PBT |
| Contact material and finish | Brass, tin plating |
| Maximum current / voltage | 60 A / 600 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
