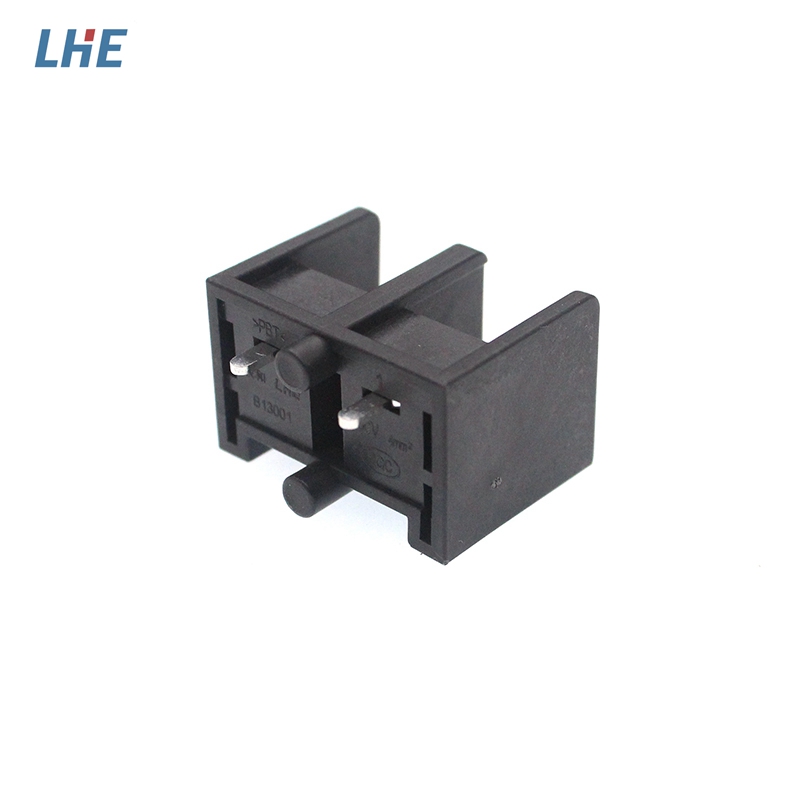

B13001-WV02 is a two-position vertical terminal block header on a 13 mm single-row centerline. Confirm the mating terminal and conductor arrangement before production.
| Connector system | Board-to-Board |
|---|---|
| Product role | Vertical header |
| Centerline | 13 mm |
| Positions / rows | 2 / single row |
| Housing material | Black PBT |
| Contact material and finish | Brass, tin plating |
| Maximum current / voltage | 20 A / 600 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
