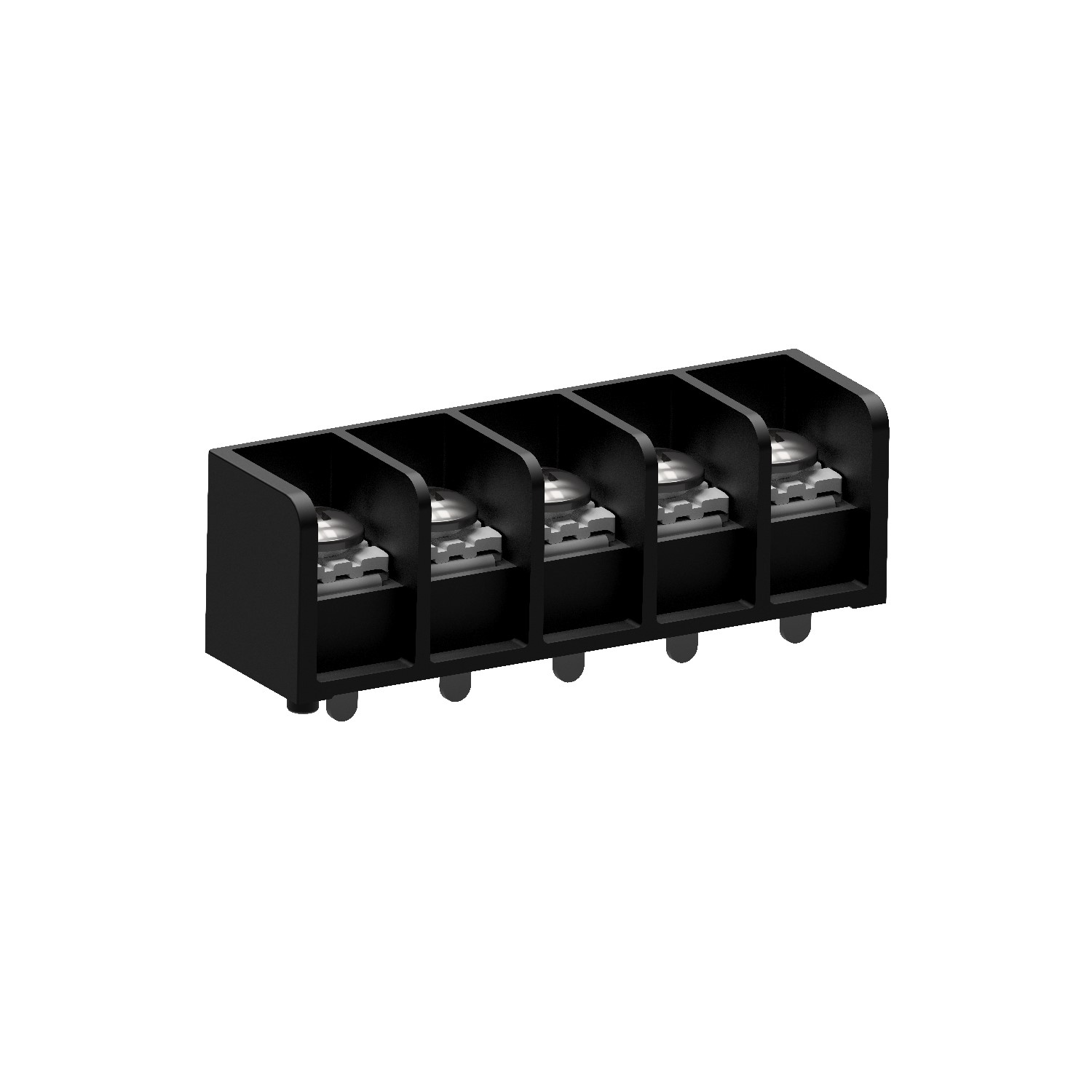

B12301-DWV05 is a five-position vertical terminal block header with a 12.3 mm single-row centerline. Confirm the mating terminal, conductor and torque requirement before production.
| Connector system | Board-to-Board |
|---|---|
| Product role | Vertical header |
| Centerline | 12.3 mm |
| Positions / rows | 5 / single row |
| Housing material | Black PBT UL94V-0 |
| Contact material and finish | Brass, tin plating |
| Wire range | AWG 14–10 |
| Maximum current / voltage | 40 A / 600 VAC/DC |
| Operating temperature | -25 °C to 125 °C |
| Screw torque | 1.2 N m |
| UL file | E364711 |
