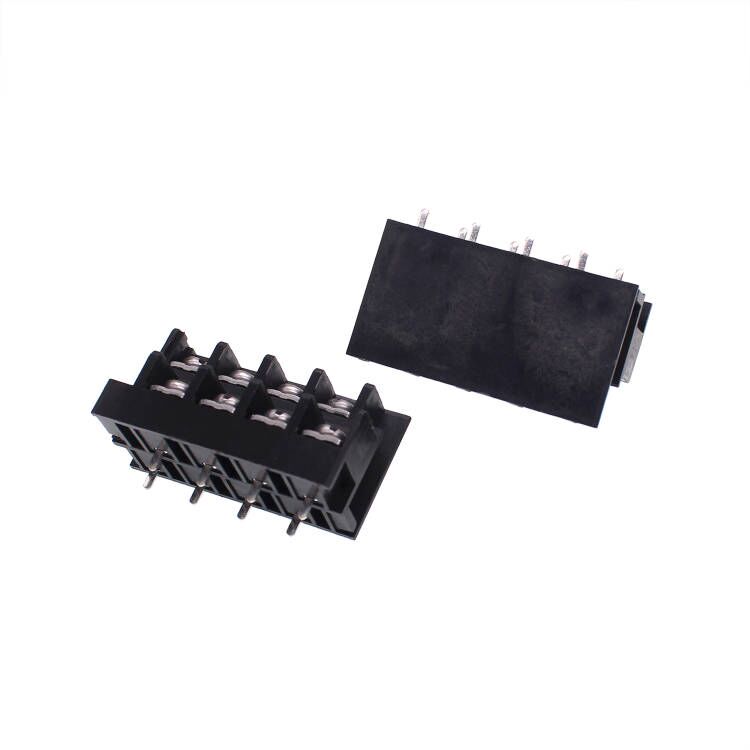

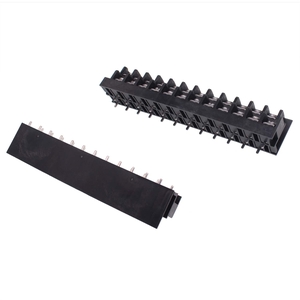

B11001 is an 11 mm terminal block component family with vertical double-row headers and matching terminals. Select the header circuit count and terminal reference for the required board connection.
| Connector system | Board-to-Board |
|---|---|
| Component roles | Vertical header and terminal |
| Centerline | 11 mm |
| Positions | 4–24 |
| Rows | Double row |
| Housing material | Black PBT |
| Contact materials | Brass or phosphor bronze, tin plating by component |
| Wire range | 24–12 AWG |
| Maximum current | 20 A |
| Maximum voltage | 600 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
