AW1000-AW5000 Air Filter-Regulators

Series Part Number

Part Number: A W 3000 - 03 D
Explanation:

Series

A - A-series air-preparation family

Function

W - Combined air filter-regulator

Body Size

1000 - M5 port
2000 - Port codes 01 or 02
3000 - Port codes 02 or 03
4000 - Port codes 03, 04 or 06
5000 - Port codes 06 or 10

Port Size

M5 - M5×0.8
01 - 1/8in
02 - 1/4in
03 - 3/8in
04 - 1/2in
06 - 3/4in
10 - 1in; select a port code allowed for the body size

Drain

Blank - Standard drain; manual drainage for the 2000 body and differential-pressure drainage for the other sizes
D - Automatic drain

Description

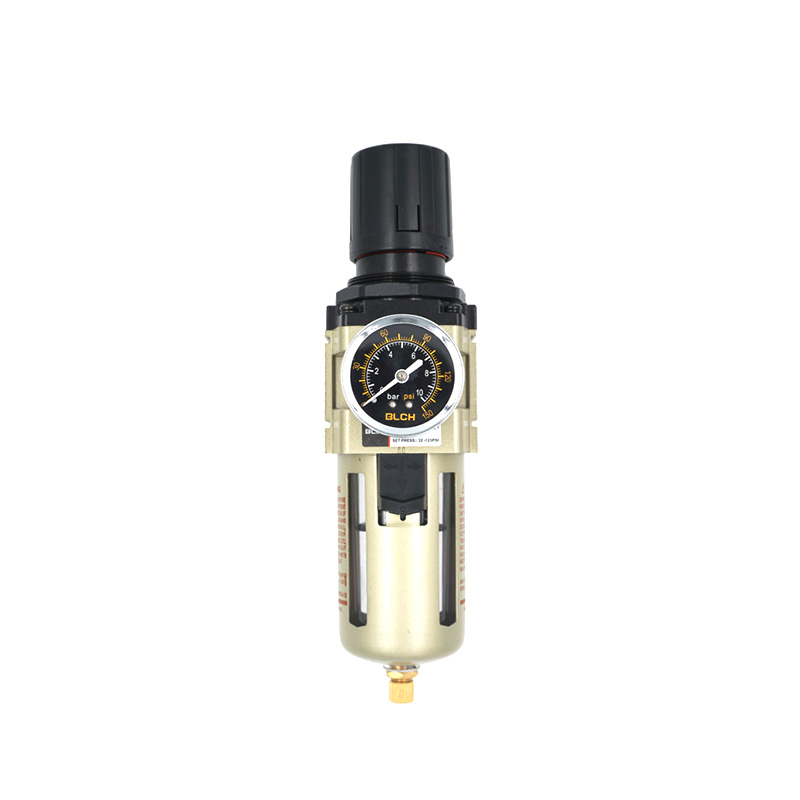

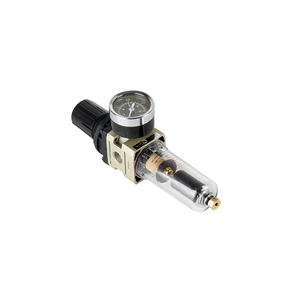

AW filter-regulators integrate air filtration and pressure adjustment across five body sizes. The range includes compact units with exposed PC bowls and larger units with iron bowl guards. Standard and D automatic-drain versions have different installation heights.

Models, ports and flow

Standard modelAutomatic-drain modelAir portMaximum flow, L/min (ANR)Gauge portGauge
AW1000-M5AW1000-M5DM5×0.8100M5×0.8Y20
AW2000-01AW2000-01D1/8″5501/8″Y40
AW2000-02AW2000-02D1/4″
AW3000-02AW3000-02D2000
AW3000-03AW3000-03D3/8″
AW4000-03AW4000-03D40001/4″Y50
AW4000-04AW4000-04D1/2″
AW4000-06AW4000-06D3/4″4500
AW5000-06AW5000-06D5000
AW5000-10AW5000-10D1″—

Operating specifications

ParameterSpecification
Working pressure, AW10000.15-0.7MPa
Working pressure, AW2000-AW50000.15-0.85MPa
Maximum pressure1.0MPa
Ambient temperature-5-60°C
Filtration40μm standard; 5μm optional
Body materialAluminum alloy
Bowl materialPC
Bowl guardAW1000-AW2000: without; AW3000-AW5000: iron guard

Ordering code

For example, AW3000-03D identifies an AW filter-regulator with a 3000 body, a 3/8″ port and an automatic drain. A blank drain suffix denotes the standard differential-pressure drain; the 2000 size also has manual drainage.

Port codeConnection
M5M5
011/8″
021/4″
033/8″
041/2″
063/4″
101″

Construction details

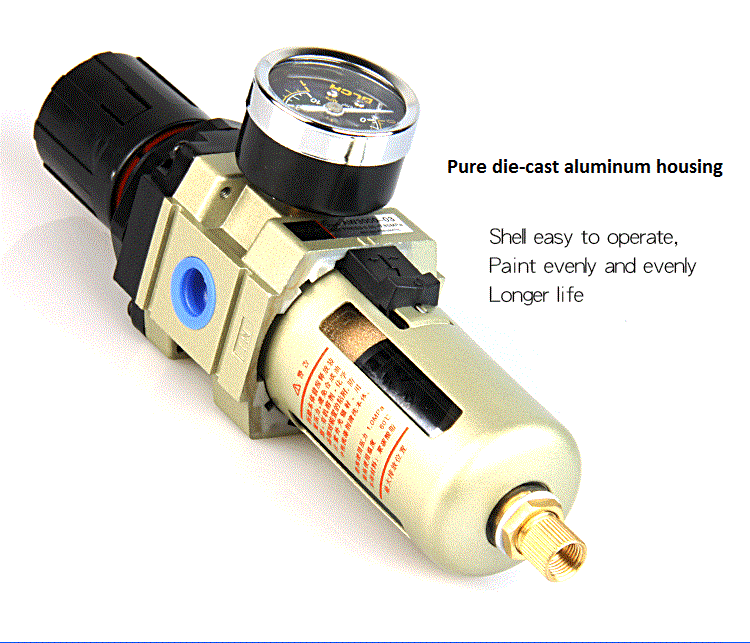

AW filter-regulator with gauge, guarded bowl and drain
Guarded AW assembly and drain arrangement.

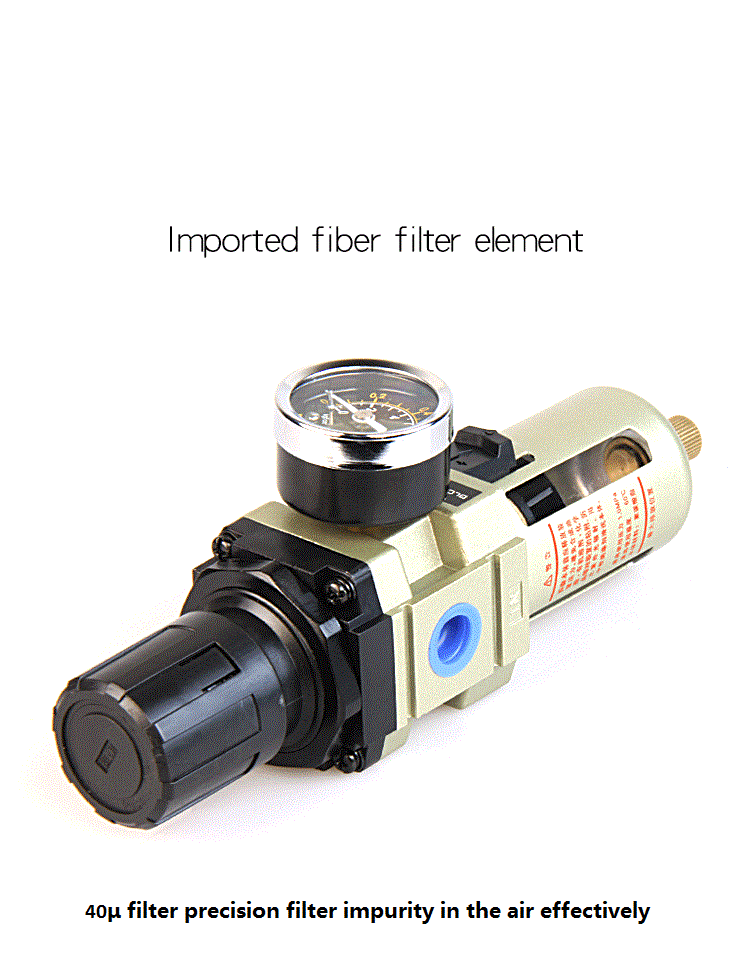

AW adjustment knob and side connection
Pressure adjustment and air connection.

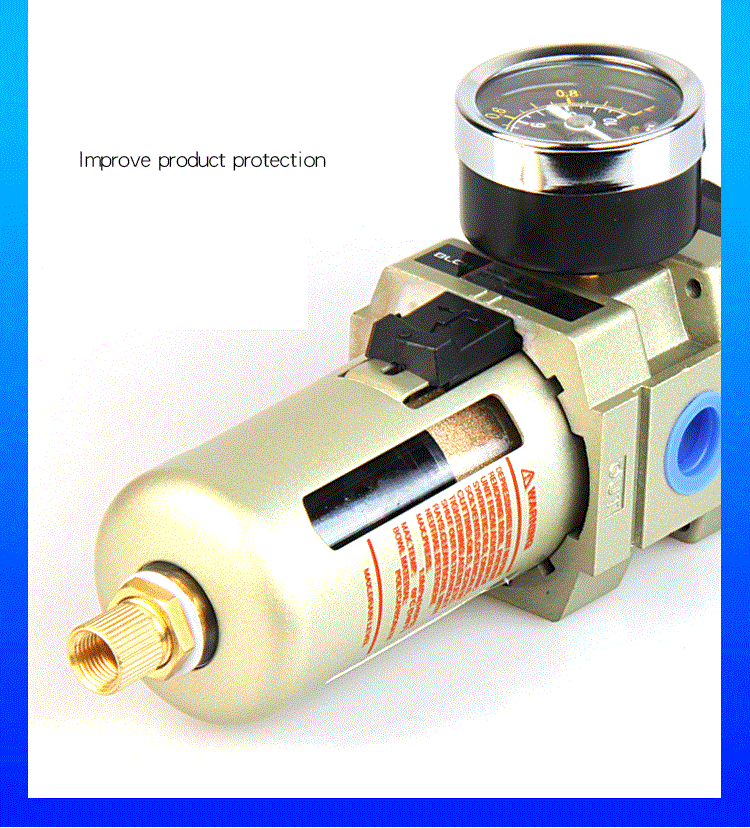

AW bowl guard and viewing slot
Bowl guard, viewing slot and retaining latch.

Installation dimensions

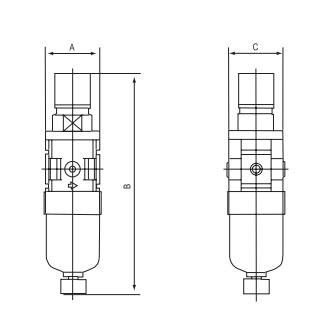

AW outline identifying dimensions A, B and C
Dimension references A, B and C; values below are in mm.
Model groupAB, standardB, D versionC
AW1000-M5 / AW1000-M5D2510812425
AW2000-01/02 and D versions4016519040
AW3000-02/03 and D versions5320724253
AW4000-03/04 and D versions7025927570
AW4000-06 / AW4000-06D76265278
AW5000-06/10 and D versions9033935491

The attached Pneumatic Components Catalogue covers the AW range and other pneumatic components.
