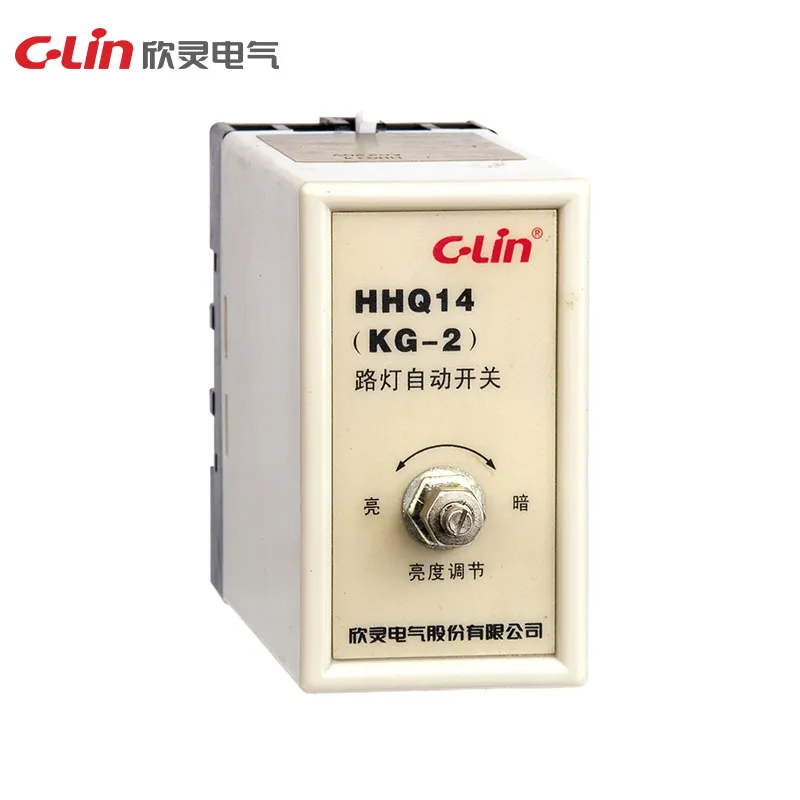

HHQ14 Series automatic street light switches turn lighting on or off according to ambient brightness, making them suitable for dusk-to-dawn outdoor lighting control. The compact unit combines adjustable sensitivity, remote optical-probe wiring and rail or device mounting for outdoor lighting panels.
| Model / specification | HHQ14 (KG-2) |
|---|---|
| Working power | AC220V 50Hz |
| Control mode | On at dark and off at dawn; sensitivity adjustable |
| Wiring length | ≤100m for the light-control element |
| Active output | 6-pin and 5-pin outputs |
| Contact capacity | 3A AC250V resistive load |
| Optical probe cutout | Φ16±0.2mm |
| Installation | Device type or 35mm rail type |
| Dimensions | 42×75×116mm |
