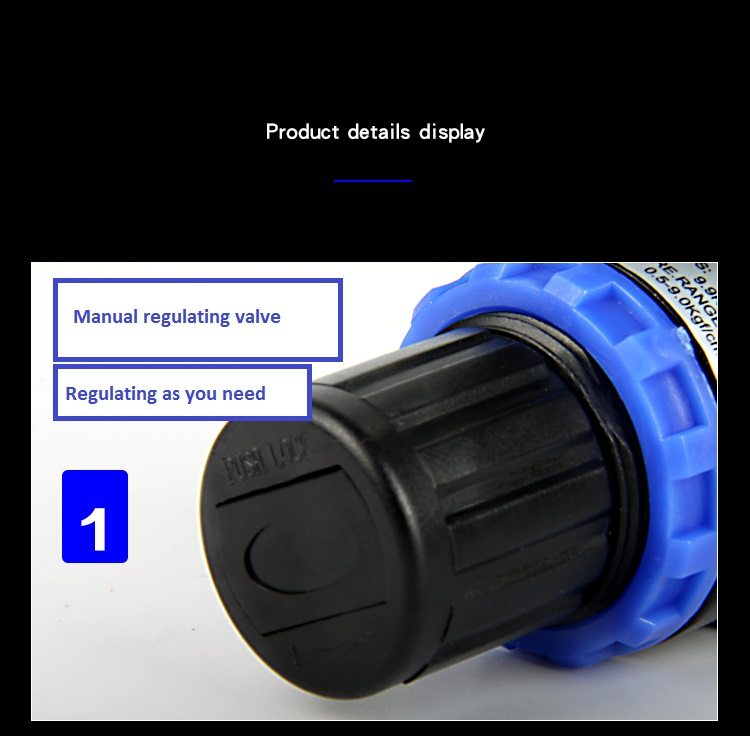

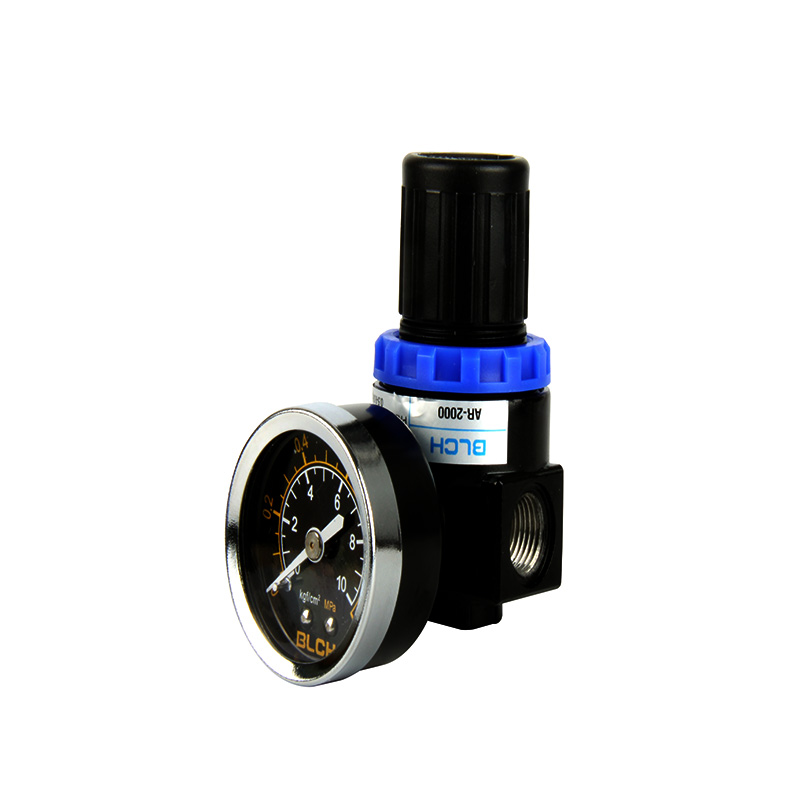

AR and BR air regulators provide manual pressure adjustment in two compact body formats. A push-in locking mechanism helps retain the selected pressure setting. Choose AR2000 for the smaller 1/4″ connection or a BR model for higher flow and additional port sizes.
| Model | Port Rc(G) | Maximum flow, L/min (ANR) |
|---|---|---|
| AR2000 | 1/4″ | 650 |
| BR2000 | 1/4″ | 1400 |
| BR3000 | 3/8″ | |
| BR4000 | 1/2″ |
The ordering prefix selects AR or BR. Suffix 2000 denotes a 1/4″ connection; BR3000 and BR4000 use 3/8″ and 1/2″ connections respectively.
| Parameter | Specification |
|---|---|
| Working pressure | 0.15-0.85MPa |
| Maximum pressure | 1.0MPa |
| Ambient temperature | -5-60°C |

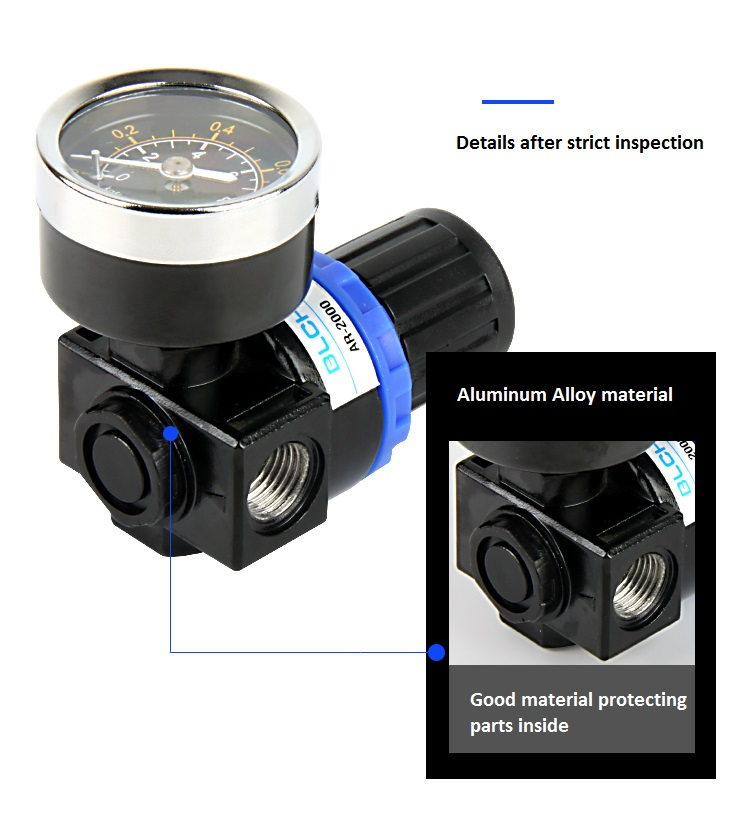

| Body material | Aluminum alloy |

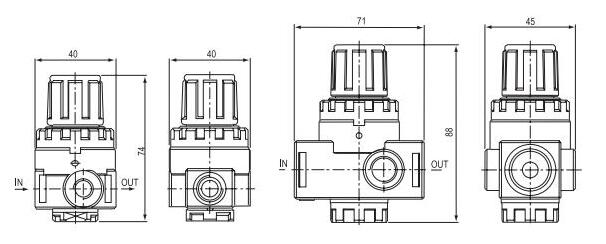

The smaller outline shows a 40mm width and 74mm height. The larger outline shows a 71mm front width, 45mm side width and 88mm height. Follow the inlet and outlet directions marked in the drawing.
The attached Pneumatic Components Catalogue covers these regulators and related air preparation components.
