AR1000–5000 Air Pressure Regulators

Series Part Number

Part Number: A R 3000 - 03
Explanation:

Series

A - A-series air-preparation family; standard models without a D suffix shown

Function

R - Air pressure regulator

Body Size

1000 - M5 port
2000 - Port codes 01 or 02
3000 - Port codes 02 or 03
4000 - Port codes 03, 04 or 06
5000 - Port codes 06 or 10

Port Size

M5 - M5×0.8
01 - 1/8in
02 - 1/4in
03 - 3/8in
04 - 1/2in
06 - 3/4in
10 - 1in; select a port code allowed for the body size

Description

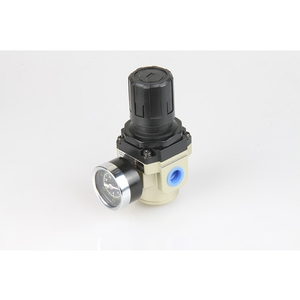

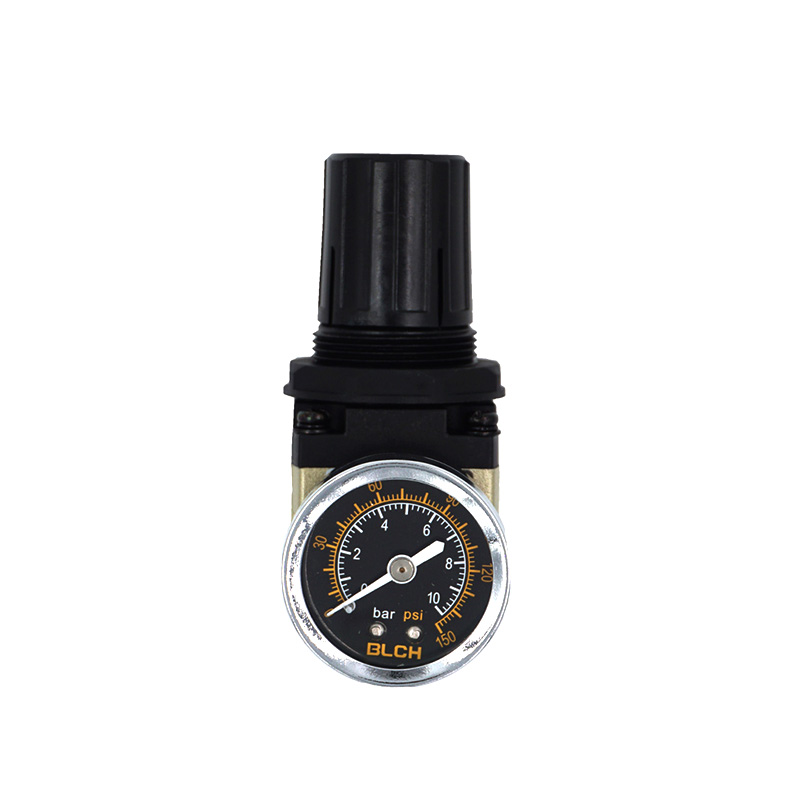

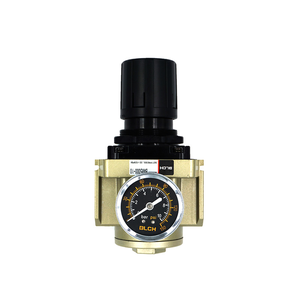

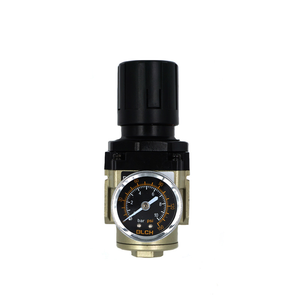

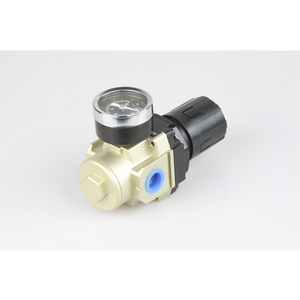

AR1000–5000 air pressure regulators cover five body sizes, with connections from M5 to 1″ and maximum flows from 100 to 8000L/min (ANR). An adjustment knob controls the regulated pressure, while the front gauge provides a local pressure reading. The aluminum alloy body is rated for a maximum pressure of 1.0MPa.

Model selection

ModelD-suffix modelPort Rc(G)Gauge portGaugeMaximum flow (ANR)
AR1000-M5AR1000-M5DM5×0.8M5×0.8Y20100L/min
AR2000-01AR2000-01D1/8″1/8″Y40550L/min
AR2000-02AR2000-02D1/4″
AR3000-02AR3000-02D2500L/min
AR3000-03AR3000-03D3/8″
AR4000-03AR4000-03D1/4″Y506000L/min
AR4000-04AR4000-04D1/2″
AR4000-06AR4000-06D3/4″
AR5000-06AR5000-06D8000L/min
AR5000-10—1″—

Select the complete model code when ordering. Confirm the required configuration for D-suffix versions before purchase.

Operating specifications

ParameterAR1000AR2000–5000
Working pressure0.15-0.7MPa0.15-0.85MPa
Maximum pressure1.0MPa
Ambient temperature-5-60°C
Body materialAluminum alloy

Ordering code

In AR3000-03, AR identifies the regulator series, 3000 identifies the body size and 03 identifies the 3/8″ connection. Available body sizes are 1000, 2000, 3000, 4000 and 5000; use the selection table to match each size to its available ports.

Port codeConnection
M5M5
011/8″
021/4″
033/8″
041/2″
063/4″
101″

Overall dimensions

ModelA (mm)B (mm)C (mm)
AR1000-M5256025
AR2000-01/02409240
AR3000-02/035312353
AR4000-03/047014670
AR4000-0676150
AR5000-06/109016590

The attached Pneumatic Components Catalogue includes the AR regulator range and installation drawings.
