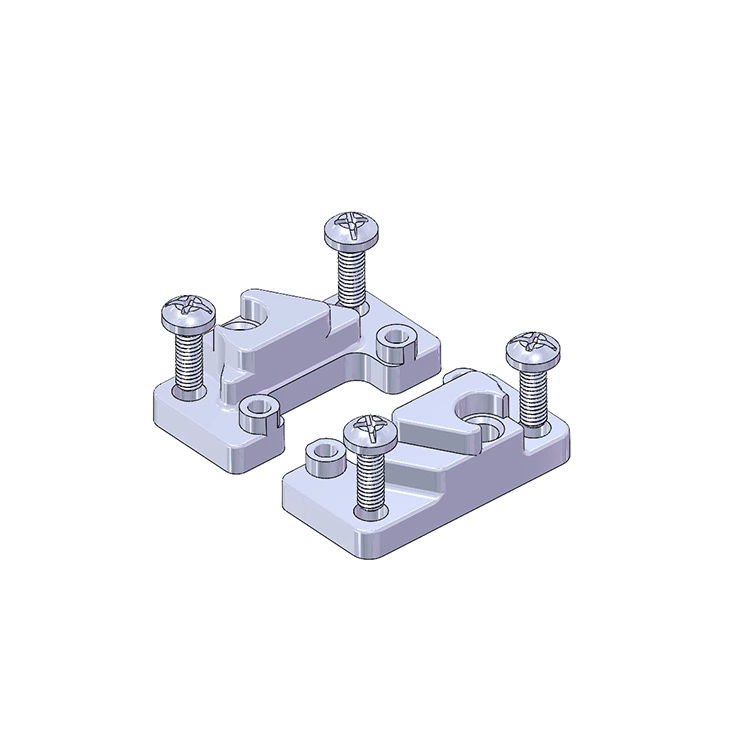

APT-C mounting flanges are mounting accessories for HC6B, HC10B, HC16B and HC24B hood arrangements. The aluminium blocks provide screw fixing positions and an M6 threaded interface. Select their installed spacing to match the chosen hood drawing.
| Property | Specification |
|---|---|
| Model | APT-C |
| Block material | Die-cast aluminium |
| Connection | Bolted mounting with stainless steel fastening elements |
| Block footprint | 41.6x20.4mm |
| Fixing-screw centre spacing | 32mm |
| Threaded connection | M6 |
| Base thickness | 5mm |
| Block height | 14mm, excluding projecting screws |
These open mounting blocks provide mechanical attachment. Environmental sealing depends on the complete hood, mating interface and cable-entry assembly. Check mounting orientation and access to the fastening screws before installation.
