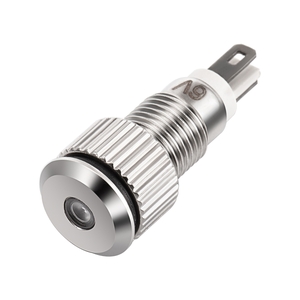

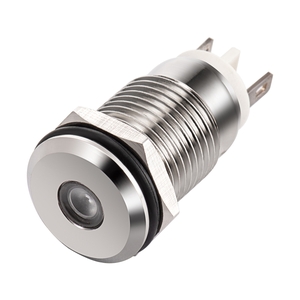

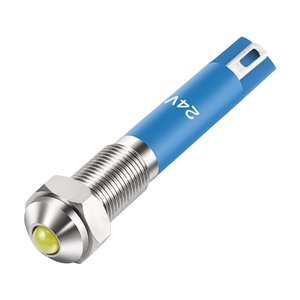

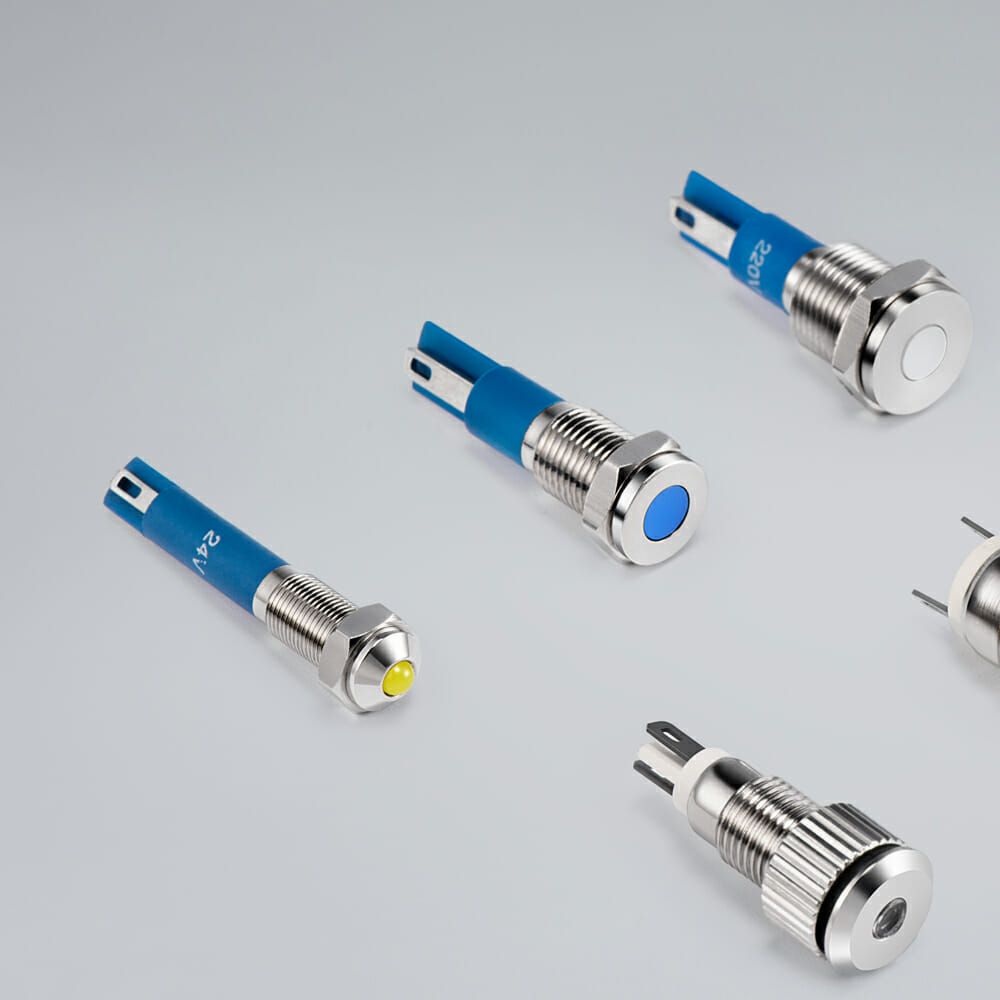

Anti-Vandal Pilot Indicator

Anti-vandal pilot indicators are illuminated status indicators designed for control panels, equipment interfaces and vehicle dashboards. They provide clear visual feedback for power, function, battery, signal or system status without an actuation function. The metal body and sealed construction make them suitable for demanding environments where durability, visibility and reliable indication are required.

Key Features

• Pilot lamp indicator design for status indication only.
• Anti-vandal construction with robust metal body options.
• Available panel cutout sizes from 6mm to 19mm.
• IP67-rated sealing for dust and moisture protection.
• Multiple LED color options, including red, green and blue.
• Multiple illumination voltage options for different electrical systems.
• Nominal LED lamp life up to 40,000 hours.
• Termination options include solder lugs or 150mm attached wire leads.
• Custom wire length is available on request.

Options

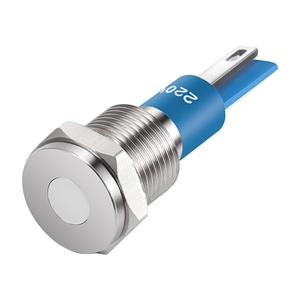

• Series: PI series and PV series pilot indicators.
• Panel cutout: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm and 19mm depending on model.
• Body finish: stainless steel or black finish.
• Lens color: red, green or blue.
• Termination: solder lug or wire lead.

Applications

• Kiosks and ticket dispensers.
• Industrial control panels and equipment interfaces.
• Agricultural machinery and vehicle control systems.
• Commercial electronics, off-road vehicles and other rugged applications.

Order Code

Notes:
PV models are available only in 8mm and 12mm sizes. LED base voltage is 1.8V at 20mA for red, yellow and orange LED colors, and 2.8V at 20mA for blue, green and white LED colors.

Dimensions
