The HHG1M Series is used for solid-state AC load switching in control panels where DC input control, electrical isolation and anti-interference performance are important. The two versions share the same control input, current range, package size and thermal requirements, while the load-voltage code selects the applicable AC output range.
Common Parameters
| Output type | SSR-DA |
|---|
| Control voltage | 3-32VDC |
|---|
| Control current | 6-25mA |
|---|
| Load current | 10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A, 100A |
|---|
| On-state voltage drop | AC ≤1.6VAC |
|---|
| On-off time | AC ≤10ms |
|---|
| Off-state leakage current | AC ≤10mA |
|---|
| Dielectric strength | ≥2500VAC |
|---|
| Ambient temperature | -30°C to 80°C |
|---|
| Dimensions | 60×45×29mm |
|---|
| Installation | Bolt installation |
|---|
| Thermal instruction | Use a heat sink above 5A; use forced-air or water cooling above 80A |
|---|

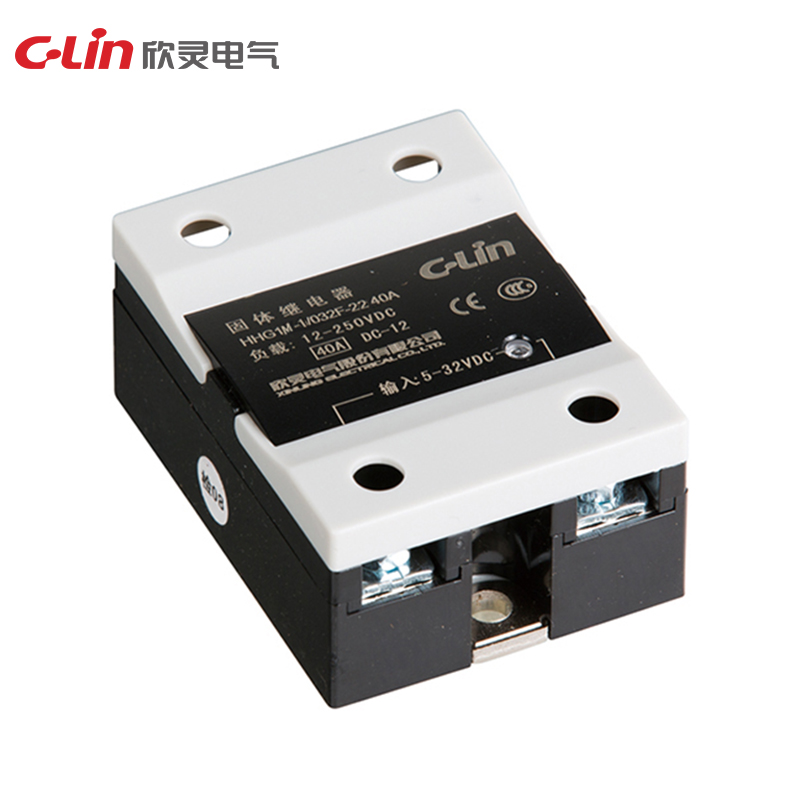

HHG1M-1/032F-22
| Load voltage code | 22 |
|---|
| Load voltage | 24-240VAC |
|---|
HHG1M-1/032F-38
| Load voltage code | 38 |
|---|
| Load voltage | 24-440VAC |
|---|
