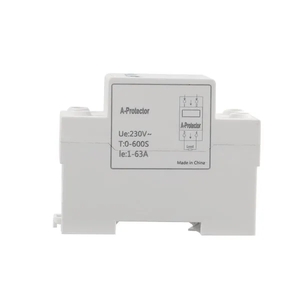

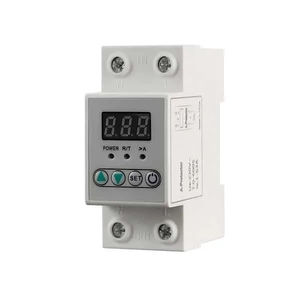

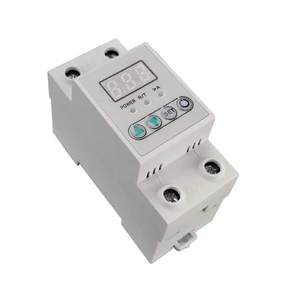

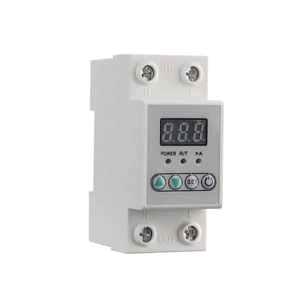

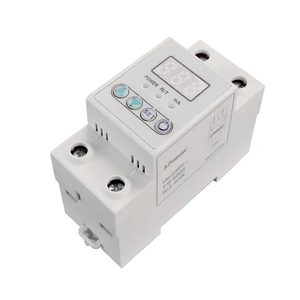

The ANP-2P current protector is a two-pole DIN rail device for AC220V circuits. It provides current display, adjustable over-current trip setting, reset/start delay and ON/OFF control for distribution-board protection applications. The voltage data in the technical table describes the device supply and measurement conditions, while the adjustable protection setting is the over-current trip value.
Current Protection Settings
| Technical parameter | Setting range | Step | Factory setting |
|---|
| Over-current trip value | 1A to 63A | 1A | 20A |
| Reset/start delay | 1s to 300s | 1s | 5s |
Current Specifications
| Current specification | 15A | 25A | 32A | 50A | 63A |
|---|
| Rated operating current In | 15A | 25A | 32A | 50A | 63A |
| Maximum operating current Imax within 10 minutes | 25A | 30A | 40A | 60A | 80A |
| Maximum load power | 3.6kW | 5.5kW | 7kW | 11kW | 13.9kW |
Electrical Data
| Item | Specification |
|---|
| Rated supply voltage | AC220V |
| Operation voltage range | AC80V to AC350V |
| Rated frequency | 50/60Hz |
| Error | 2% |
| Voltage measurement accuracy | 1%, not exceeding 1% of the overall range |
| Rated insulation voltage | 400V |
| Output contact | 1 normally open contact |
Timing and Life Data
| Item | Specification |
|---|
| Over-voltage and under-voltage trip delay | 0.5s |
| Electrical life | 105 operations |
| Mechanical life | 106 operations |
Installation and Environment
| Item | Specification |
|---|
| Protection degree | IP20 |
| Pollution degree | 3 |
| Altitude | Not more than 2000 m |
| Operating temperature | -50°C to +55°C |
| Relative humidity | Not more than 50% at 40°C without condensation |
| Storage temperature | -30°C to +70°C |
