AL1000–5000 Air Lubricators

Series Part Number

Part Number: A L 3000 - 03
Explanation:

Series

A - A-series air-preparation family

Function

L - Air lubricator

Body Size

1000 - M5 port
2000 - Port codes 01 or 02
3000 - Port codes 02 or 03
4000 - Port codes 03, 04 or 06
5000 - Port codes 06 or 10

Port Size

M5 - M5×0.8
01 - 1/8in
02 - 1/4in
03 - 3/8in
04 - 1/2in
06 - 3/4in
10 - 1in; select a port code allowed for the body size

Description

AL1000–5000 air lubricators supply oil mist to pneumatic circuits that require lubrication. The range spans M5 to 1″ connections and maximum flows of 90-5000L/min (ANR). All models use an aluminum alloy body and a polycarbonate bowl; AL3000–5000 models add a bowl guard.

Model selection

ModelPort Rc(G)Maximum flow (ANR)
AL1000-M5M5×0.890L/min
AL2000-011/8″500L/min
AL2000-021/4″
AL3000-022000L/min
AL3000-033/8″
AL4000-034000L/min
AL4000-041/2″
AL4000-063/4″4500L/min
AL5000-065000L/min
AL5000-101″

Operating limits and materials

ParameterSpecification
AL1000 working pressure0.15-0.7MPa
AL2000–5000 working pressure0.15-0.85MPa
Maximum pressure1.0MPa
Ambient temperature-5-60°C
Recommended lubricantTurbine No.1 oil, ISO VG32
BodyAluminum alloy
BowlPolycarbonate (PC)

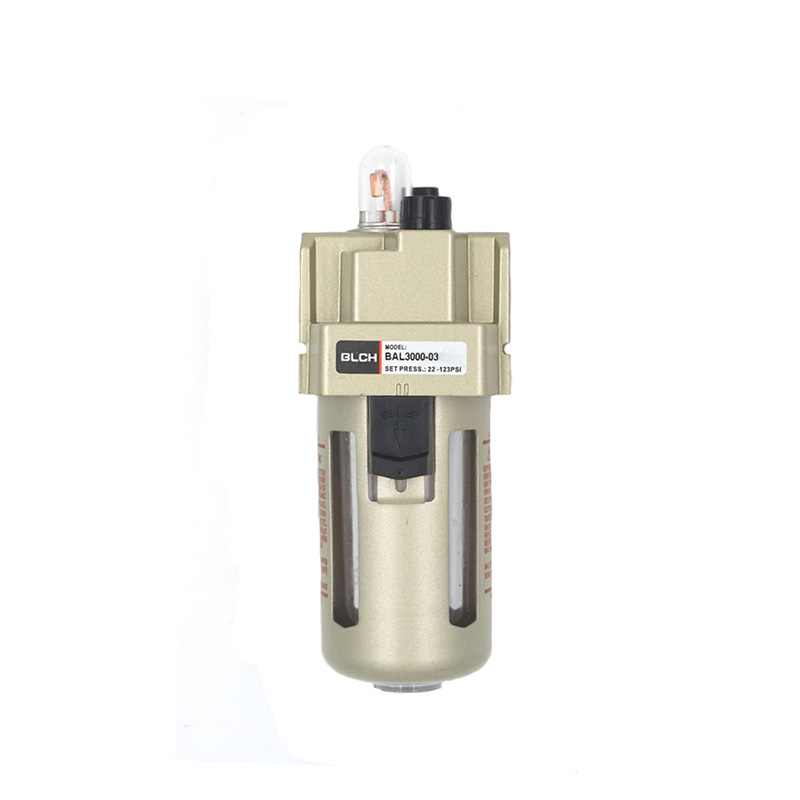

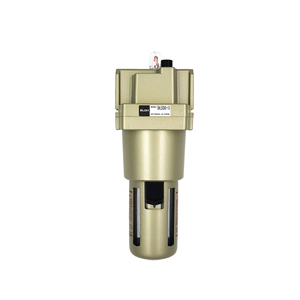

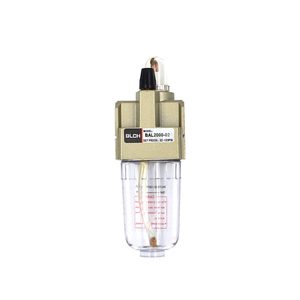

Bowl guardAL1000–2000: without guard; AL3000–5000: iron guard

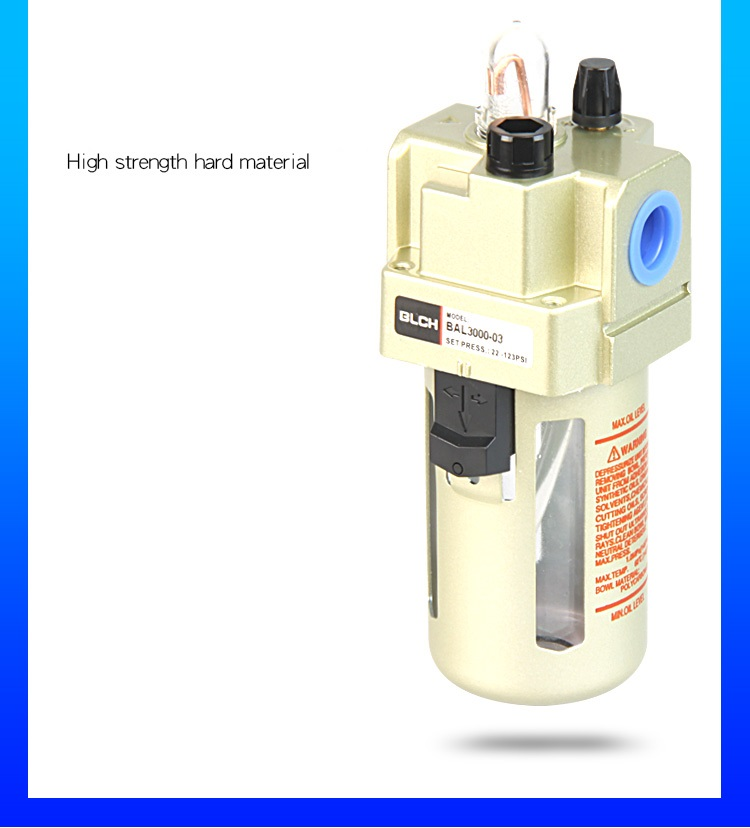

AL3000 lubricator head, oil sight dome, fill plug and guarded bowl
AL3000 lubricator construction with a guarded bowl and visible oil-feed components.

Ordering code

In AL3000-03, A identifies the series, L identifies the lubricator function, 3000 is the body size and 03 is the 3/8″ port code. Body sizes are 1000, 2000, 3000, 4000 and 5000.

Port codeConnection
M5M5
011/8″
021/4″
033/8″
041/2″
063/4″
101″

Overall dimensions

ModelWidth AHeight BDepth C
AL1000-M525mm77mm25mm
AL2000-01/0240mm120mm40mm
AL3000-02/0353mm142mm53mm
AL4000-03/0470mm173mm70mm
AL4000-0675mm178mm
AL5000-06/1090mm250mm90mm

The attached Pneumatic Components Catalogue includes AL lubricators, structural drawings and installation information.
