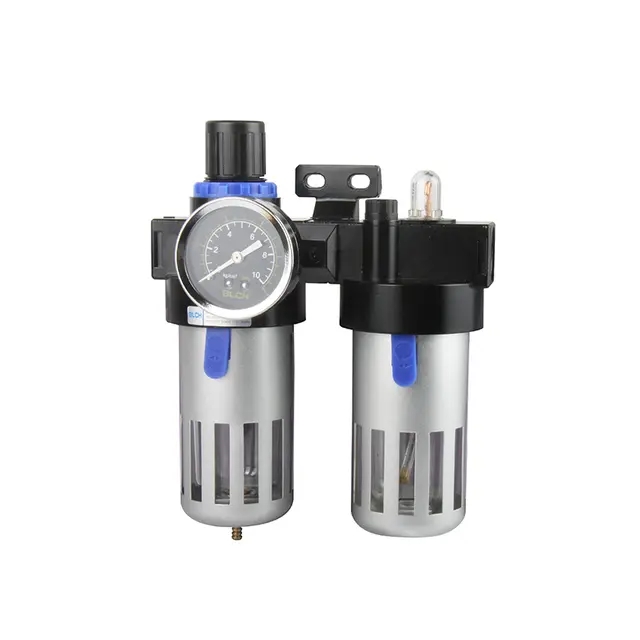

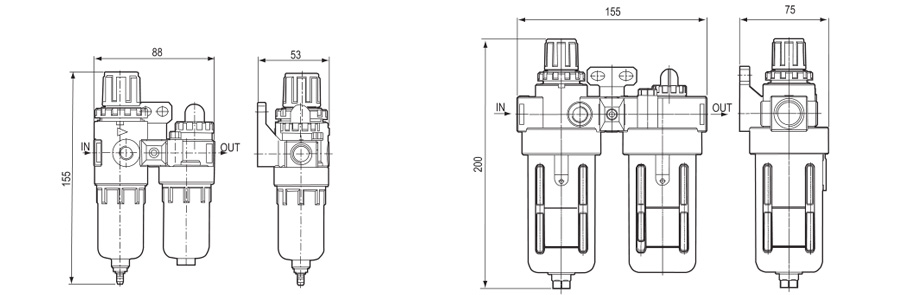

AFC2000 and BFC2000-BFC4000 combine a filter-regulator with a separate lubricator for compressed-air preparation. The AFC model uses smaller unguarded bowls; BFC models provide larger bowls with iron guards and three port-size choices.
Choose the AFC or BFC family, followed by its port code: AFC2000 is 1/4″; BFC2000 is 1/4″, BFC3000 is 3/8″, and BFC4000 is 1/2″.
| Model | Filter-regulator | Lubricator | Port Rc(G) | Maximum flow, L/min (ANR) | Drain bowl | Oil bowl | Bowl guards |
|---|---|---|---|---|---|---|---|
| AFC2000 | AFR2000 | AL2000 | 1/4″ | 650 | 15mL | 25mL | Without guards |
| BFC2000 | BFR2000 | BL2000 | 1/4″ | 1400 | 60mL | 90mL | Iron guards |
| BFC3000 | BFR3000 | BL3000 | 3/8″ | 1400 | |||
| BFC4000 | BFR4000 | BL4000 | 1/2″ | 1400 |
| Item | Specification |
|---|---|
| Working medium | Air |
| Working pressure | 0.15-0.85MPa |
| Maximum pressure | 1.0MPa |
| Ambient temperature | -5-60°C |
| Filtration | 40μm standard; 5μm optional |
| Recommended oil | No. 1 turbine oil, ISO VG32 |

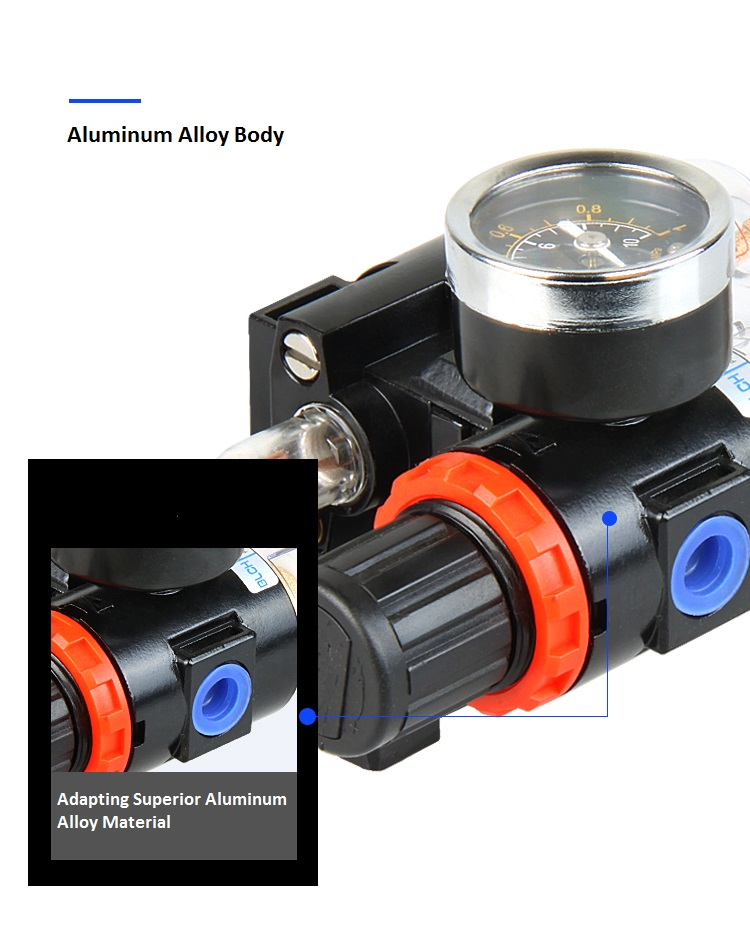

| Body material | Die-cast aluminum alloy |
| Bowl material | Polycarbonate (PC) |

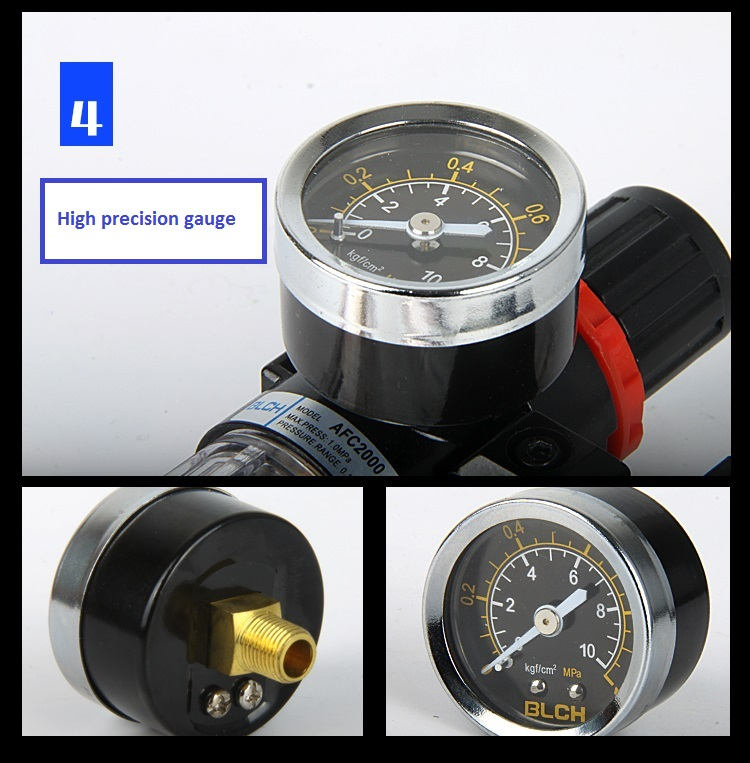

The pressure regulator uses a press-in locking mechanism to help retain the setting. A local gauge indicates pressure, and a transparent lubricator dome allows oil dripping to be observed.

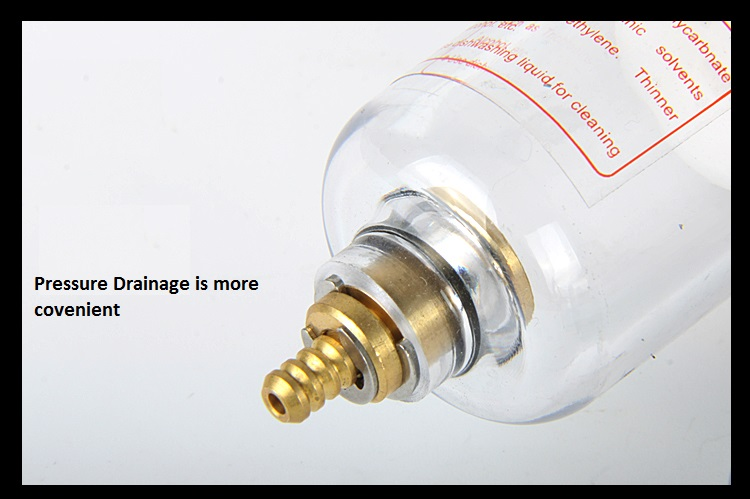

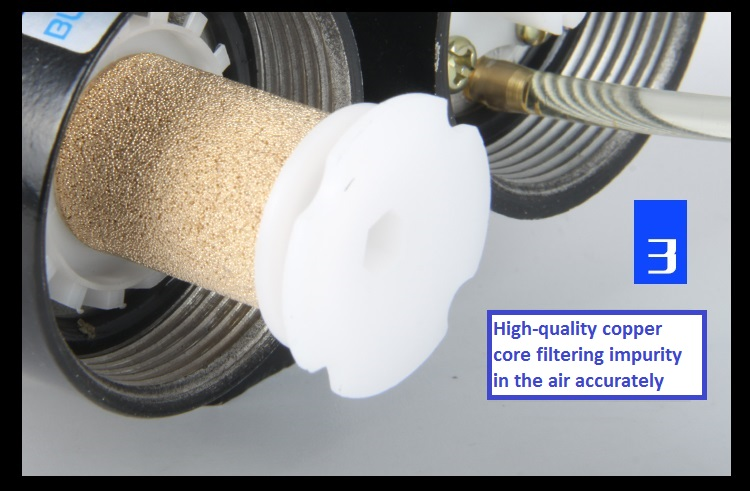

The filter collects moisture and particles in the drain bowl. The bowl drain and filter element are shown below.
| Item | Details |
|---|---|
| Condition | New |
| Origin | Zhejiang, China |
| Warranty | 1 year |
| After-warranty support | Online support |
| Outgoing inspection | Inspection video and machinery test report offered |
The attached Pneumatic Components Catalogue covers the wider range of pneumatic products.
