AF1000-AF5000 Compressed-Air Filters

Series Part Number

Part Number: A F 3000 - 03 D
Explanation:

Series

A - A-series air-preparation family

Function

F - Air filter

Body Size

1000 - M5 port
2000 - Port codes 01 or 02
3000 - Port codes 02 or 03
4000 - Port codes 03, 04 or 06
5000 - Port codes 06 or 10

Port Size

M5 - M5×0.8
01 - 1/8in
02 - 1/4in
03 - 3/8in
04 - 1/2in
06 - 3/4in
10 - 1in; select a port code allowed for the body size

Drain

Blank - Standard drain; manual drainage for the 2000 body and differential-pressure drainage for the other sizes
D - Automatic drain

Description

AF1000-AF5000 air filters cover M5 through 1″ connections with 40μm standard filtration and a 5μm option. Five body sizes and standard or D automatic-drain versions provide a choice of flow capacity, bowl protection and installation height.

Models and flow ratings

Standard modelAutomatic-drain modelPort Rc(G)Maximum flow, L/min (ANR)
AF1000-M5AF1000-M5DM5×0.8110

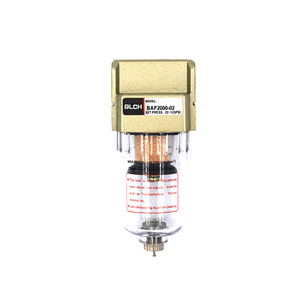

AF2000-01AF2000-01D1/8″750
AF2000-02AF2000-02D1/4″
AF3000-02AF3000-02D1500
AF3000-03AF3000-03D3/8″

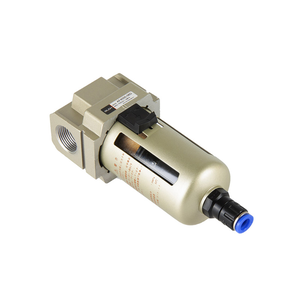

AF4000-03AF4000-03D4000
AF4000-04AF4000-04D1/2″
AF4000-06AF4000-06D3/4″6000
AF5000-06AF5000-06D7000
AF5000-10AF5000-10D1″

Shared specifications and materials

ParameterSpecification
Maximum pressure1.0MPa
Ambient temperature-5-60°C
Filtration40μm standard; 5μm optional
BodyAluminum alloy
BowlPC
Bowl guardAF1000-AF2000: without; AF3000-AF5000: iron guard

Ordering and drainage

AF3000-03D identifies an A-series filter with a 3000 body, a 3/8″ port and an automatic drain. A blank drain suffix denotes standard differential-pressure drainage, with manual drainage on the 2000 size.

Port codeConnection
M5M5
011/8″
021/4″
033/8″
041/2″
063/4″
101″

Construction details

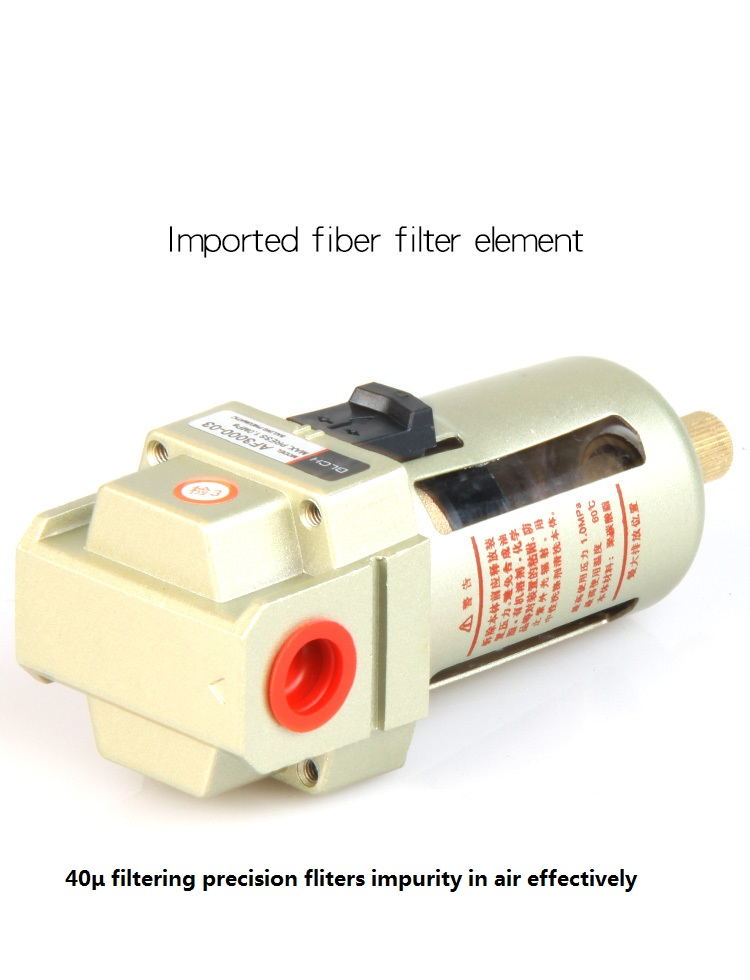

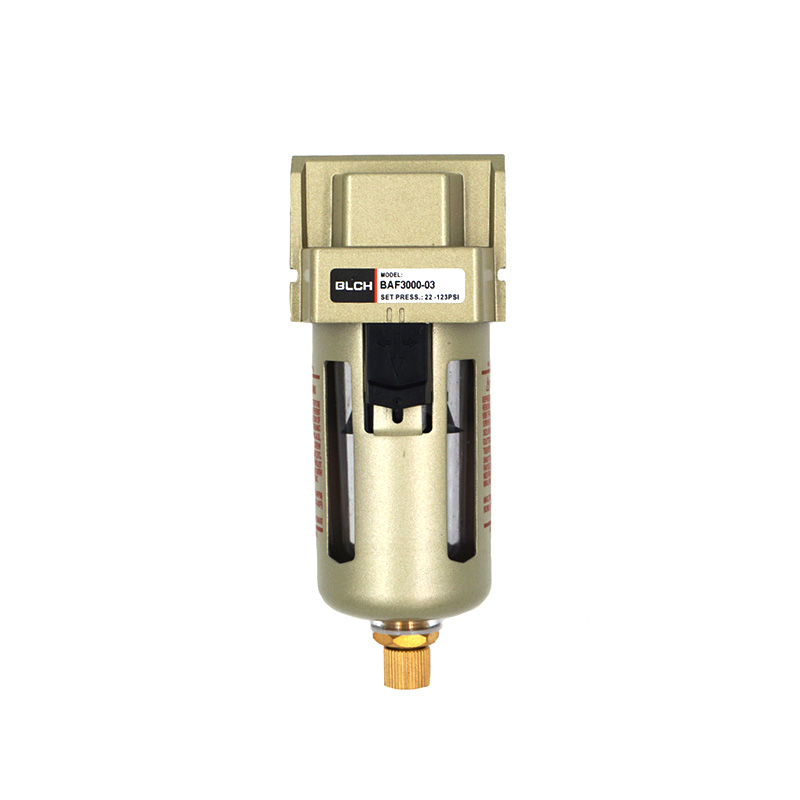

AF filter body and guarded bowl with viewing slots
AF filter body, bowl guard and side connection.

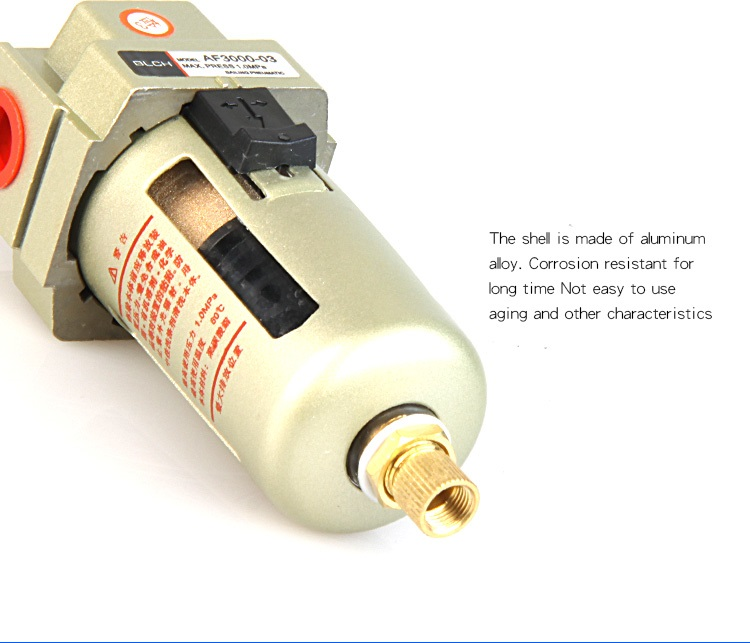

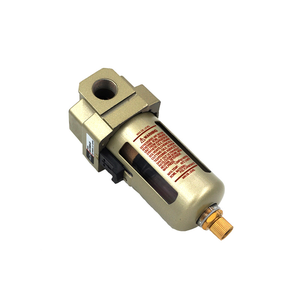

AF filter drain and bowl retaining latch
Lower drain outlet and bowl retaining latch.

Installation dimensions

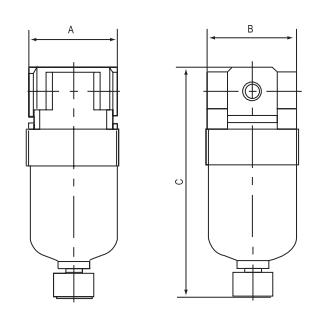

AF filter front and side outline identifying width, depth and height
AF installation outline: A is front width, B is side depth and C is height; dimensions in mm.
Model groupWidth ADepth BHeight C, standardHeight C, D version
AF1000-M5 and D version25256986
AF2000-01/02 and D versions404097119
AF3000-02/03 and D versions5353133170
AF4000-03/04 and D versions7070170184
AF4000-06 and D version76175188
AF5000-06/10 and D versions9091248262
