| Part Number: | AD402 | - | 04 |
|---|---|---|---|
| Explanation: |
Model AD402 - Automatic water-trap model |
Port Size 04 - 1/2in inlet connection; 3/8in drain connection |
AD402 and AH402 automatic water traps discharge condensate from compressed-air systems without routine manual drain operation. Both use a 1/2″ air connection and a 3/8″ drain connection, with a specified working range of 0.15-0.85MPa.
| Model | Port code | Air port Rc(G) | Drain port Rc |
|---|---|---|---|
| AD402 | 04 | 1/2″ | 3/8″ |
| AH402 |
| Parameter | Specification |
|---|---|
| Working pressure range | 0.15-0.85MPa |
| Maximum working pressure | 1.0MPa |
| Ambient temperature | 5-60°C |
Use a drain pipe with a diameter greater than 10mm and a length no greater than 5m. Route the pipe without upward bends. The compressor power must be greater than 3.7kW.

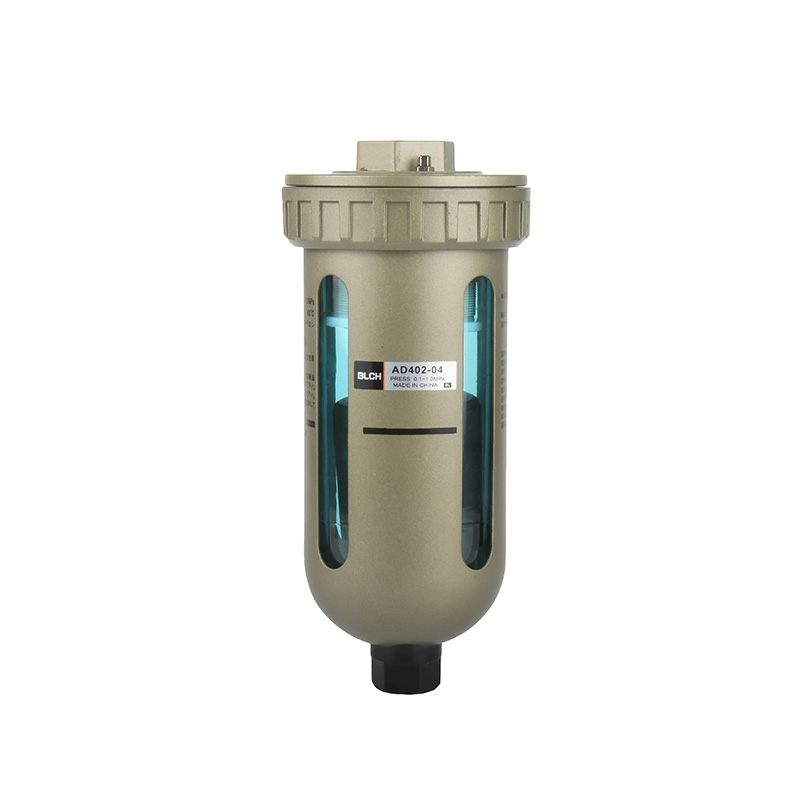

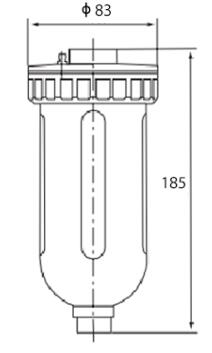

The illustrated AD402-04 has viewing slots around the bowl. Its outline shows an Ø83mm body profile and a 185mm vertical dimension.

The attached Pneumatic Components Catalogue includes AD and AH drain information and installation guidance.
