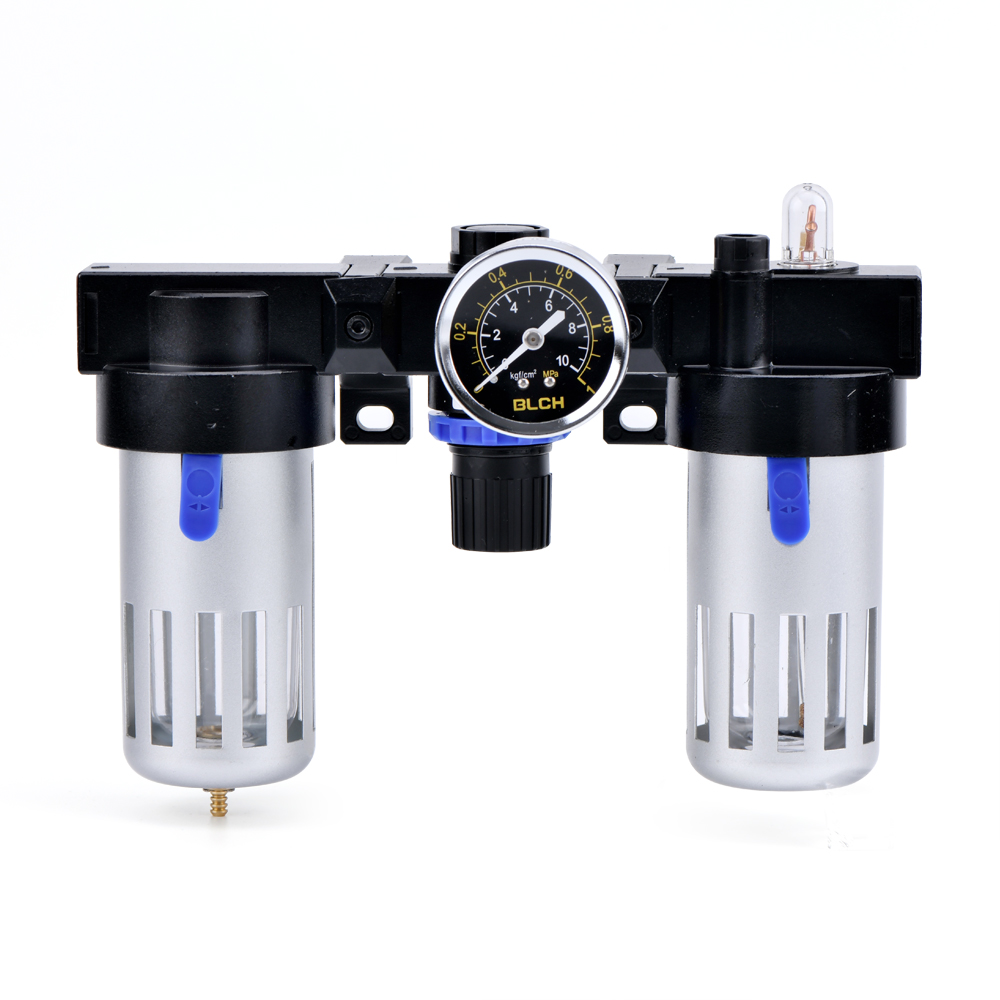

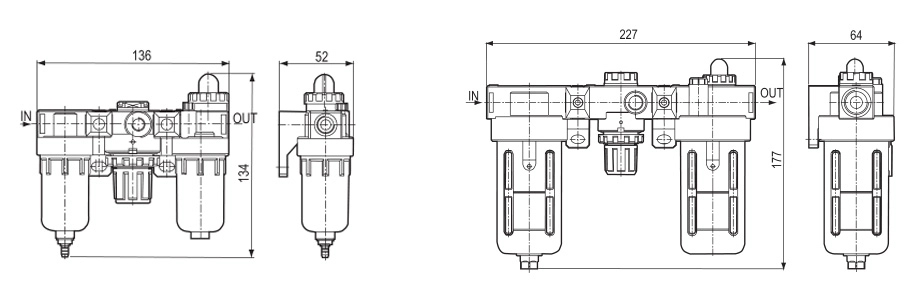

The AC/BC series combines separate air filters, pressure regulators and lubricators. AC2000 uses AF, AR and AL components with transparent bowls; the larger BC configurations use BF, BR and BL components with iron bowl guards.
The AC or BC prefix identifies the three-unit combination. AC2000 has 1/4″ ports. In the BC range, 2000 specifies 1/4″, 3000 specifies 3/8″ and 4000 specifies 1/2″ ports.
| Model | Filter | Regulator | Lubricator | Port Rc(G) | Maximum flow, L/min (ANR) | Bowl guards |
|---|---|---|---|---|---|---|
| AC2000 | AF2000 | AR2000 | AL2000 | 1/4″ | 650 | Without guards |
| BC2000 | BF2000 | BR2000 | BL2000 | 1/4″ | 1400 | Iron guards |
| BC3000 | BF3000 | BR3000 | BL3000 | 3/8″ | 1400 | |
| BC4000 | BF4000 | BR4000 | BL4000 | 1/2″ | 1400 |
| Item | Specification |
|---|---|
| Working pressure | 0.15-0.85MPa |
| Maximum pressure | 1.0MPa |
| Ambient temperature | -5-60°C |

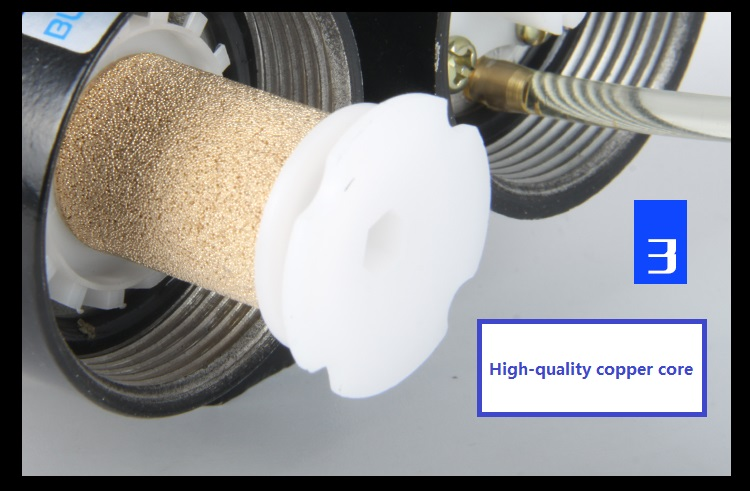

| Filtration | 40μm standard; 5μm optional |
| Recommended oil | No. 1 turbine oil, ISO VG32 |
| Body material | Aluminum alloy |
| Bowl material | Polycarbonate (PC) |

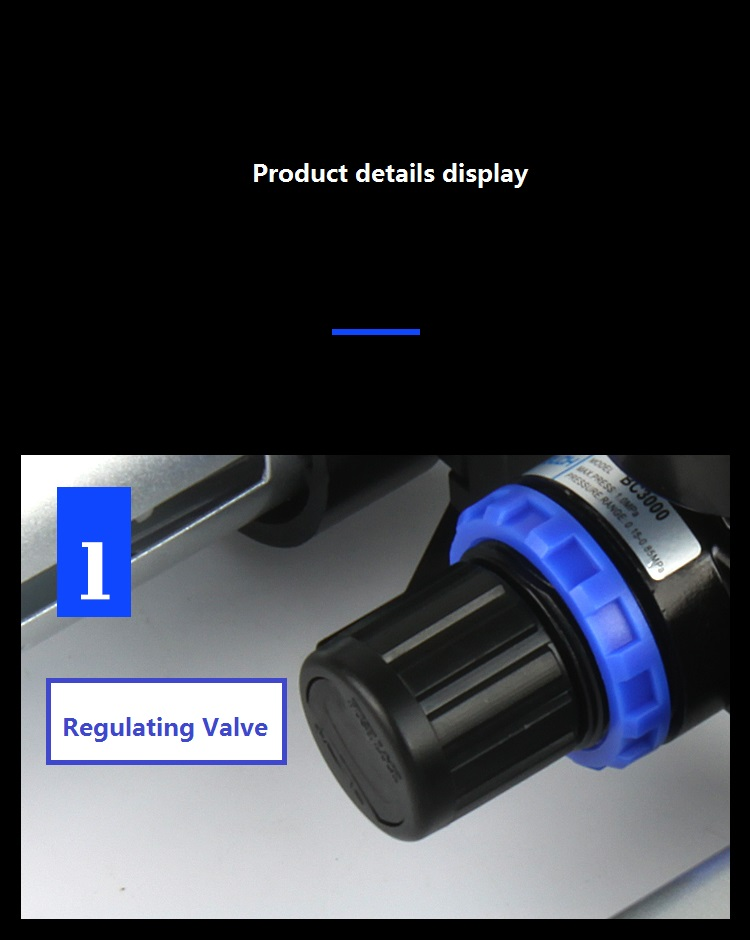

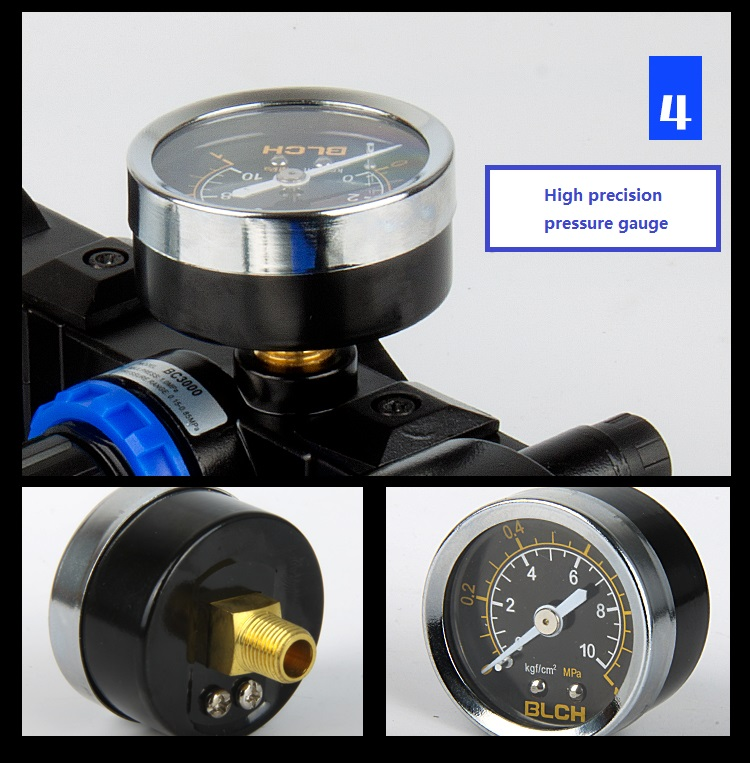

The regulator has a press-in locking mechanism to help prevent unintended changes to the pressure setting. The pressure gauge provides a local indication for adjustment.

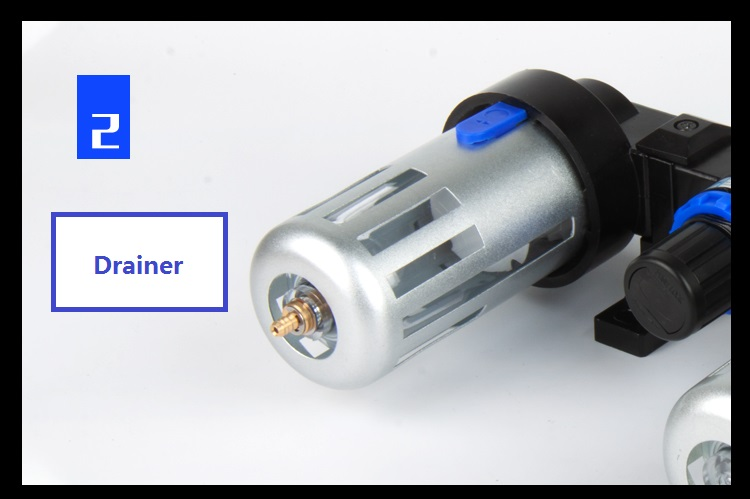

The filter separates moisture and particles from the air supply. Its bowl has a drain at the bottom. The lubricator includes a transparent dome for observing oil dripping.
The attached Pneumatic Components Catalogue covers air preparation units and the wider pneumatic range.
