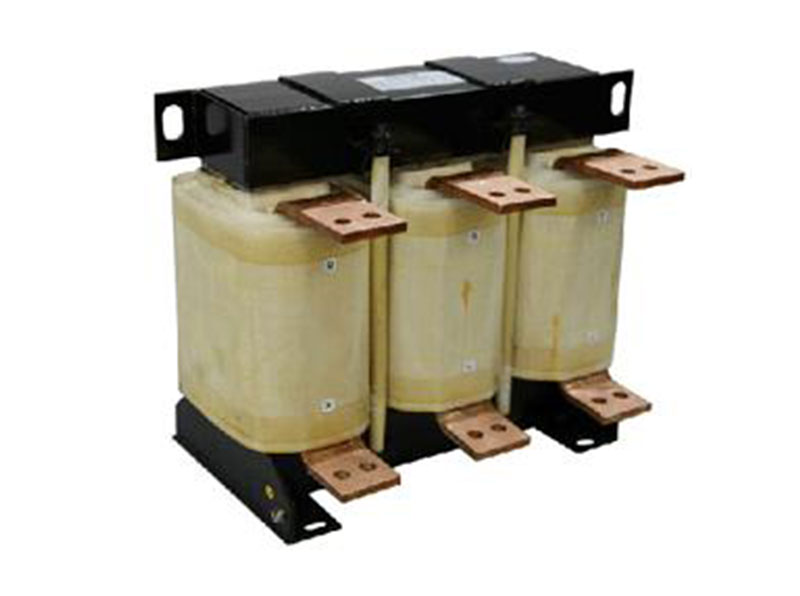

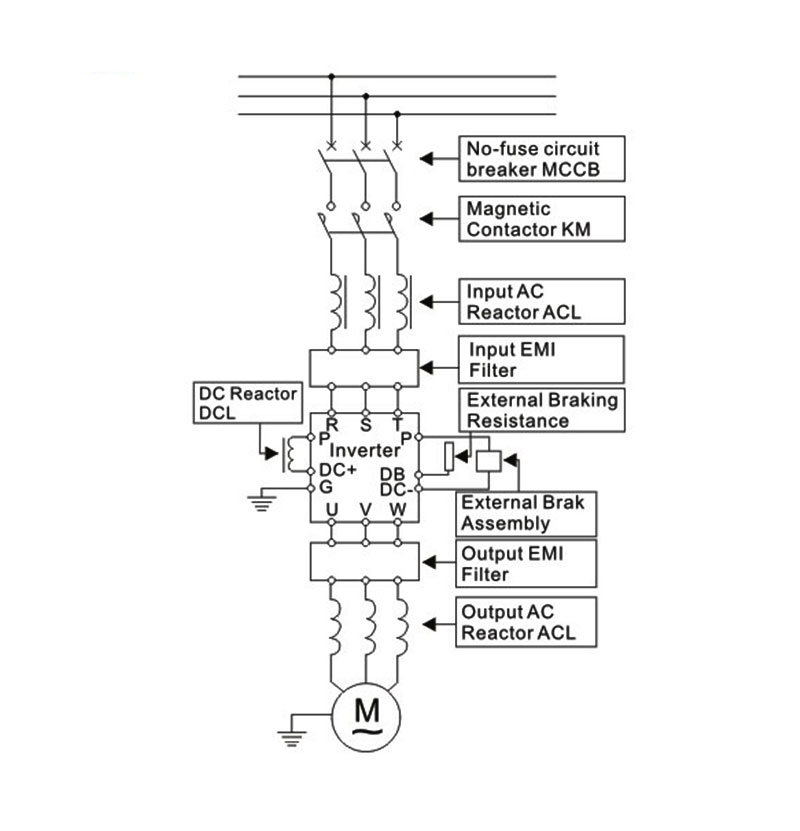

The AC output reactor installs between a frequency inverter and the motor. It smooths PWM output, reduces transient dv/dt, motor noise, eddy-current loss and leakage current, and protects drive switching components.
The captured design uses foil windings, F-class or higher insulation and vacuum pressure impregnation. Data lists three-phase 380V, 50Hz operation, 5-1600A current, 40°C ambient, IP00 protection and 1% voltage drop for the selection models.

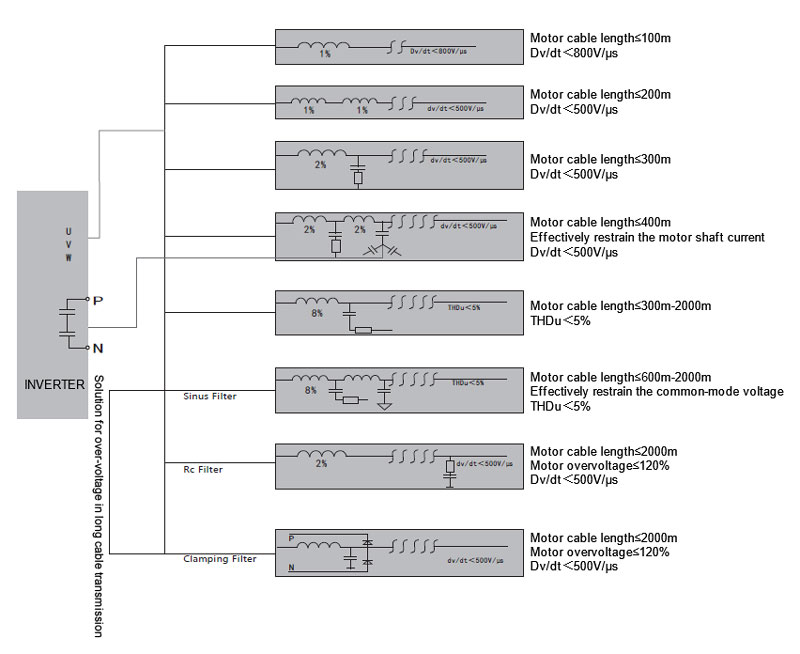

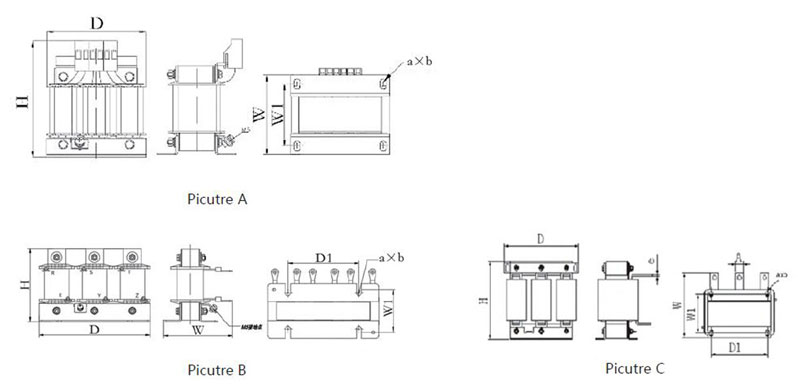

| Reactor Type | NO. | Power(kW) | Rated Current | Inductance | Voltage Drop | Insulation Class | Material | Weight (Kg) | Dimension(±0.5mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D*H*W | D1*W1 | a*b | |||||||||
| OCL-0005-EISC-E1M4C | A | 1.5 | 5A | 1.4mH | 1% | F | Cu | 2.4 | 110*130*84 | 91*65 | 6*11 |
| OCL-0007-EISC-E1M0C | 2.2 | 7A | 1mH | 1% | F | Cu | 2.4 | 110*130*84 | 91*65 | 6*11 | |
| OCL-0010-EISC-EM70C | 3.7 | 10A | 0.7mH | 1% | F | Cu | 2.4 | 110*130*84 | 91*65 | 6*11 | |
| OCL-0015-EISC-EM47C | 5.5 | 15A | 0.47mH | 1% | F | Cu | 3 | 155*140*84 | 95*61 | 6*15 | |
| OCL-0020-EISC-EM35C | 7.5 | 20A | 0.35mH | 1% | F | Cu | 3.8 | 155*140*84 | 95*61 | 6*15 | |
| OCL-0030-EISCL-EM23C | B | 11 | 30A | 0.23mH | 1% | F | Cu | 4.6 | 200*130*116 | 120*72 | 8.5*20 |
| OCL-0040-EISCL-EM18C | 15 | 40A | 0.18mH | 1% | F | Cu | 4.8 | 200*130*116 | 120*72 | 8.5*20 | |
| OCL-0050-EISCL-EM14C | 18.5 | 50A | 0.14mH | 1% | F | Cu | 5 | 200*130*116 | 120*72 | 8.5*20 | |
| OCL-0060-EISCL-EM12C | 22 | 60A | 0.12mH | 1% | F | Cu | 5.1 | 200*130*116 | 120*72 | 8.5*20 | |
| OCL-0080-EISC-E87UC | 30 | 80A | 0.09mH | 1% | F | Cu | 6 | 195*165*130 | 120*72 | 8.5*20 | |
| OCL-0090-EISC-E78UC | 37 | 90A | 0.08mH | 1% | F | Cu | 6 | 195*165*130 | 120*72 | 8.5*20 | |
| OCL-0120-EISC-E58UC | 45 | 120A | 0.06mH | 1% | F | Cu | 9 | 195*165*165 | 150*88 | 8*15 | |
| OCL-0150-EISH-E47UC | C | 55 | 150A | 0.05mH | 1% | F | AL | 10 | 195*210*155 | 120*92 | 8.5*20 |
| OCL-0200-EISH-E35UC | 75 | 200A | 0.04mH | 1% | F | AL | 12 | 195*210*165 | 120*102 | 8.5*20 | |
| OCL-0250-EISH-E28UC | 110 | 250A | 0.03mH | 1% | F | AL | 12 | 195*210*165 | 120*102 | 8.5*20 | |
| OCL-0290-EISH-E24UC | 132 | 290A | 0.02mH | 1% | F | AL | 20 | 255*240*175 | 182*91 | 11*18 | |
| OCL-0330-EISH-E21UC | 160 | 330A | 0.02mH | 1% | F | AL | 20 | 255*240*175 | 182*91 | 11*18 | |
| OCL-0390-EISH-E18UC | 185 | 390A | 0.02mH | 1% | F | AL | 20 | 255*245*175 | 182*91 | 11*18 | |
| OCL-0490-EISH-E14UC | 220 | 490A | 0.01mH | 1% | F | AL | 28 | 300*295*190 | 214*95 | 11*18 | |
| OCL-0530-EISH-E13UC | 250 | 530A | 0.01mH | 1% | F | AL | 29 | 300*295*190 | 214*95 | 11*18 | |
| OCL-0600-EISH-E12UC | 280 | 600A | 0.01mH | 1% | F | AL | 33 | 300*295*210 | 214*110 | 11*18 | |
| OCL-0660-EISH-E11UC | 300 | 660A | 0.01mH | 1% | F | AL | 38 | 300*315*210 | 214*110 | 11*18 | |
| OCL-0800-EISH-E8U7C | 380 | 800A | 0.01mH | 1% | F | AL | 40 | 325*350*215 | 243*112 | 12*20 | |
| OCL-1000-EISH-E7U0C | 450 | 1000A | 0.01mH | 1% | F | AL | 40 | 325*350*215 | 243*112 | 12*20 | |
| OCL-1200-EISH-E5U8C | 550 | 1200A | 0.01mH | 1% | F | AL | 56 | 325*395*235 | 243*132 | 12*20 | |
| OCL-1600-EISH-E4U3 | 630 | 1600A | 0.01mH | 1% | F | AL | 92 | 395*435*325 | 275*175 | 12*20 |
