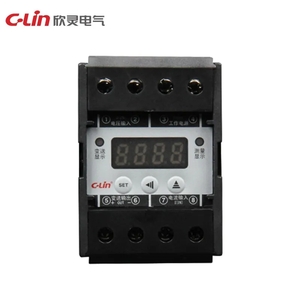

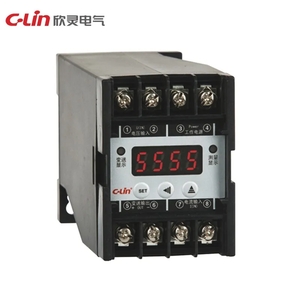

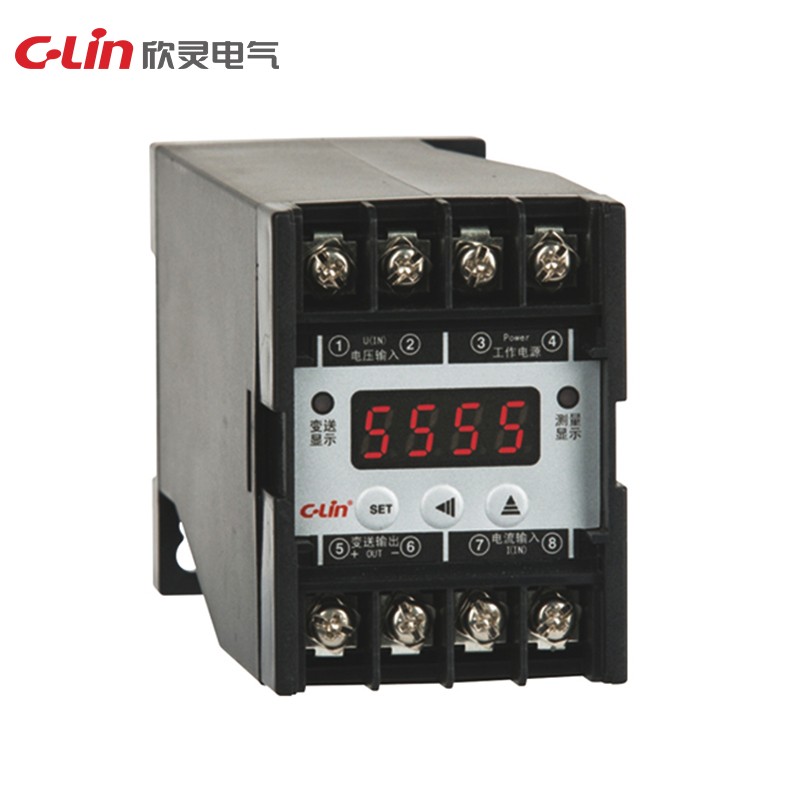

PAS Series transmitters convert AC current or AC voltage signals into isolated DC transmitter outputs for control panels, distribution cabinets and measurement systems. PAS-A handles current input and PAS-V handles voltage input, while both models share the same accuracy class, display behavior, output setting, supply and installation platform.
Common Parameters
| Measurement error | ≤0.5 class |
|---|
| Display mode | Manual switching between primary measured value and transmitter output value |
|---|
| Display range | Primary value 0-9999, settable |
|---|
| Transmission output | DC0-10mA, DC0-20mA or DC4-20mA, settable |
|---|
| Load impedance | ≤350Ω |
|---|
| Supply voltage | AC220V or AC380V |
|---|
| Dimensions | 79×50×105mm |
|---|

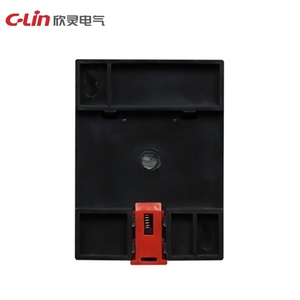

| Installation method | Standard DIN rail installation or fixed installation |
|---|
| Typical application | Signal isolation and measurement in explosion-proof control boxes, distribution cabinets, transformer boxes and related equipment |
|---|

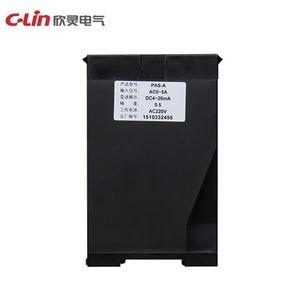

PAS-A
| Measurement signal | AC current |
|---|
| Input range | AC0-5A |
|---|
| Customization | Other current ranges can be customized |
|---|
PAS-V
| Measurement signal | AC voltage |
|---|
| Input range | AC0-500V |
|---|
| Customization | Other voltage ranges can be customized |
|---|
