A5081 5.08 mm wire-to-board connectors combine single-row housings and brass-contact board headers for larger-pitch harness interfaces. The formats cover 2–14 circuits and are specified for 5 A per contact and 250 VAC/DC maximum voltage.

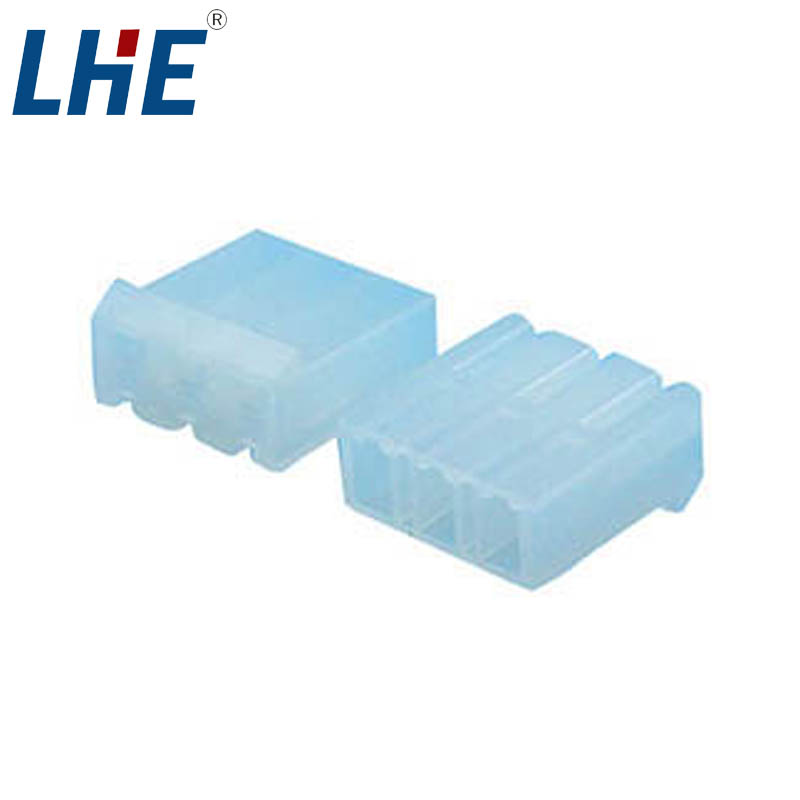

| Component | Selection point |
|---|---|
| H housings | Nylon 66 single-row housings for the selected circuit count |

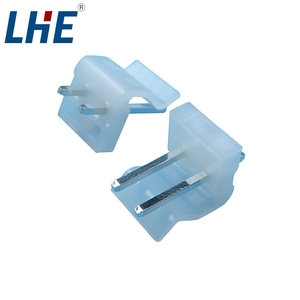

| Board headers | Vertical or right-angle brass-contact interfaces matched to the PCB |
| Centerline | 5.08 mm |
|---|---|
| Positions | 2–14 |
| Rows | Single row |
| Maximum current | 5 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 / Nylon 66 UL94V-2 (model-dependent options) |
Choose the circuit count and housing, then match the board header orientation and footprint. Verify the mating dimensions and keying on the applicable drawing.
