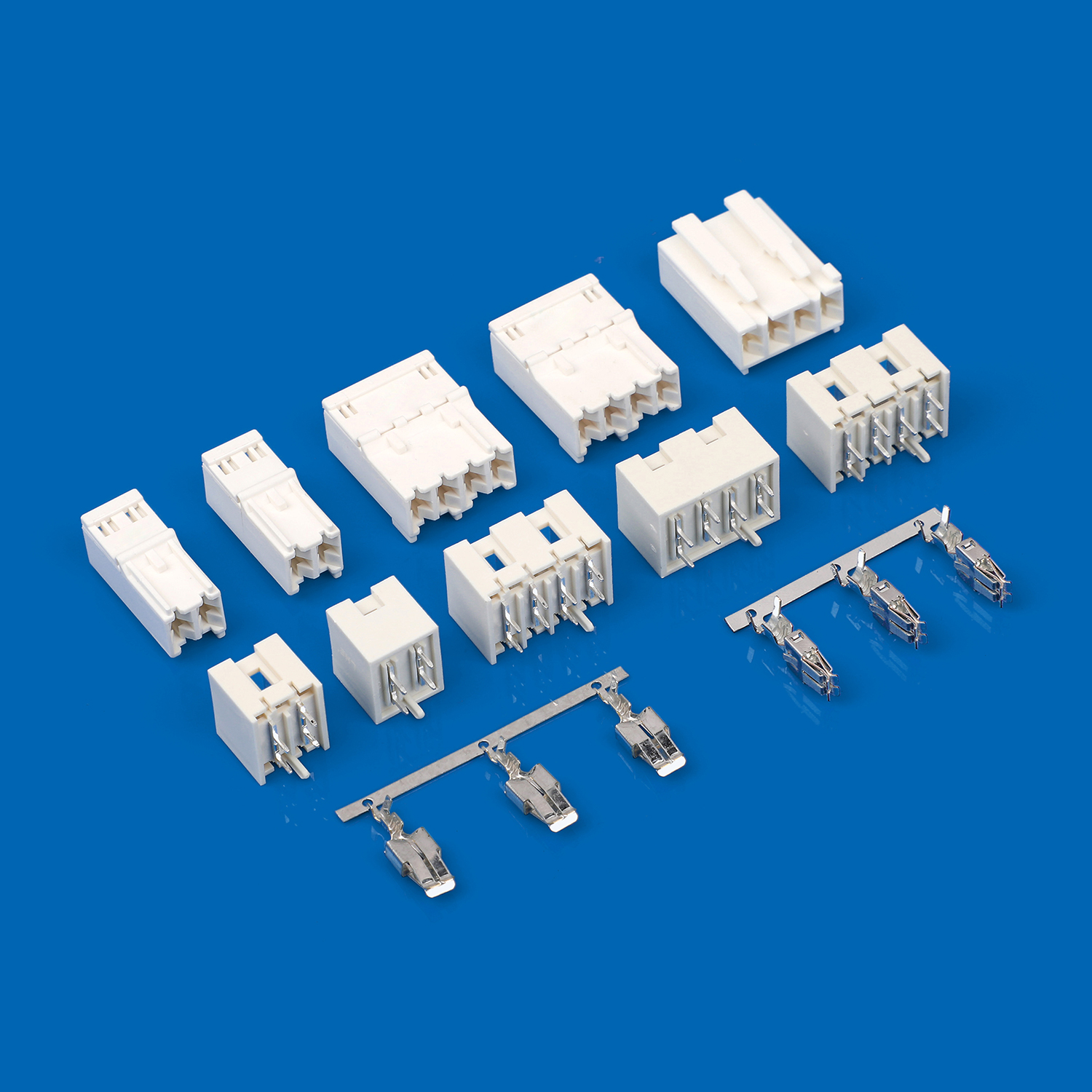

A5001 5.0 mm Wire-to-Board Headers

A5001 5.0 mm wire-to-board headers provide a larger-pitch board interface for 2–8 circuit assemblies. The headers use PBT UL94V-0 insulation and offer tin-plated or silver-plated contact options; the applicable current rating is selected by plating and model.

Header Formats

Choose the Contact Finish

Select the circuit count and mounting form, then choose the contact finish according to the required current. Confirm the board footprint and mating geometry on the model drawing.
