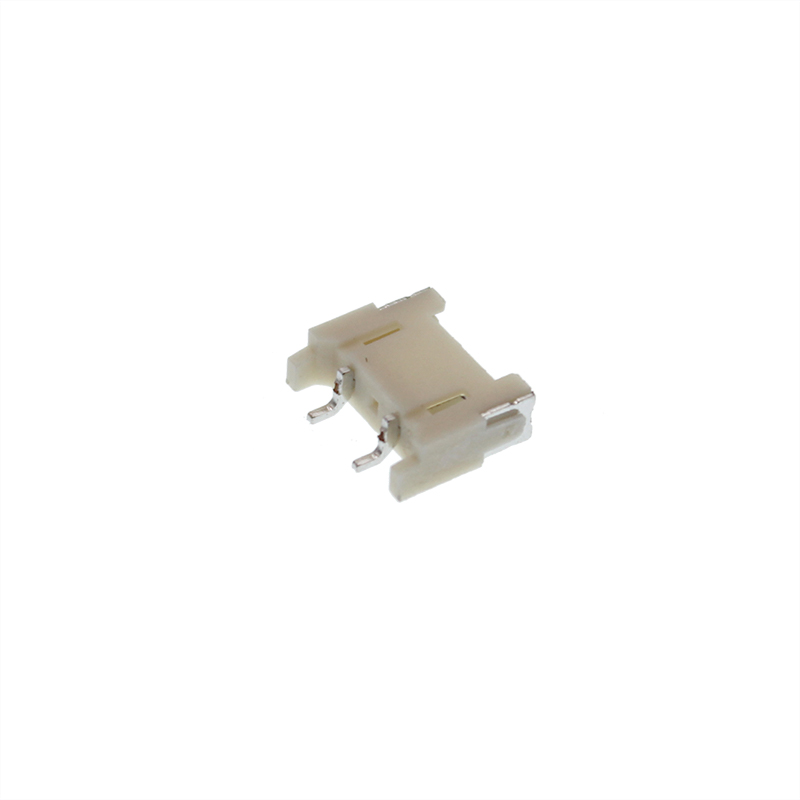

A4001 4.0 mm wire-to-board headers provide compact two- and three-circuit board interfaces. The headers use PA9T UL94V-0 insulation and brass contacts, with 1 A per-contact current and 600 VAC/DC maximum voltage.
| Centerline | 4.0 mm |
|---|---|
| Positions | 2 or 3 |
| Rows | Single row |
| Insulation | PA9T UL94V-0 |
| Contact material | Brass |
| Maximum current | 1 A per contact |
| Maximum voltage | 600 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
Select the two- or three-circuit form, then verify the header orientation, mating housing and PCB footprint on the applicable drawing.
