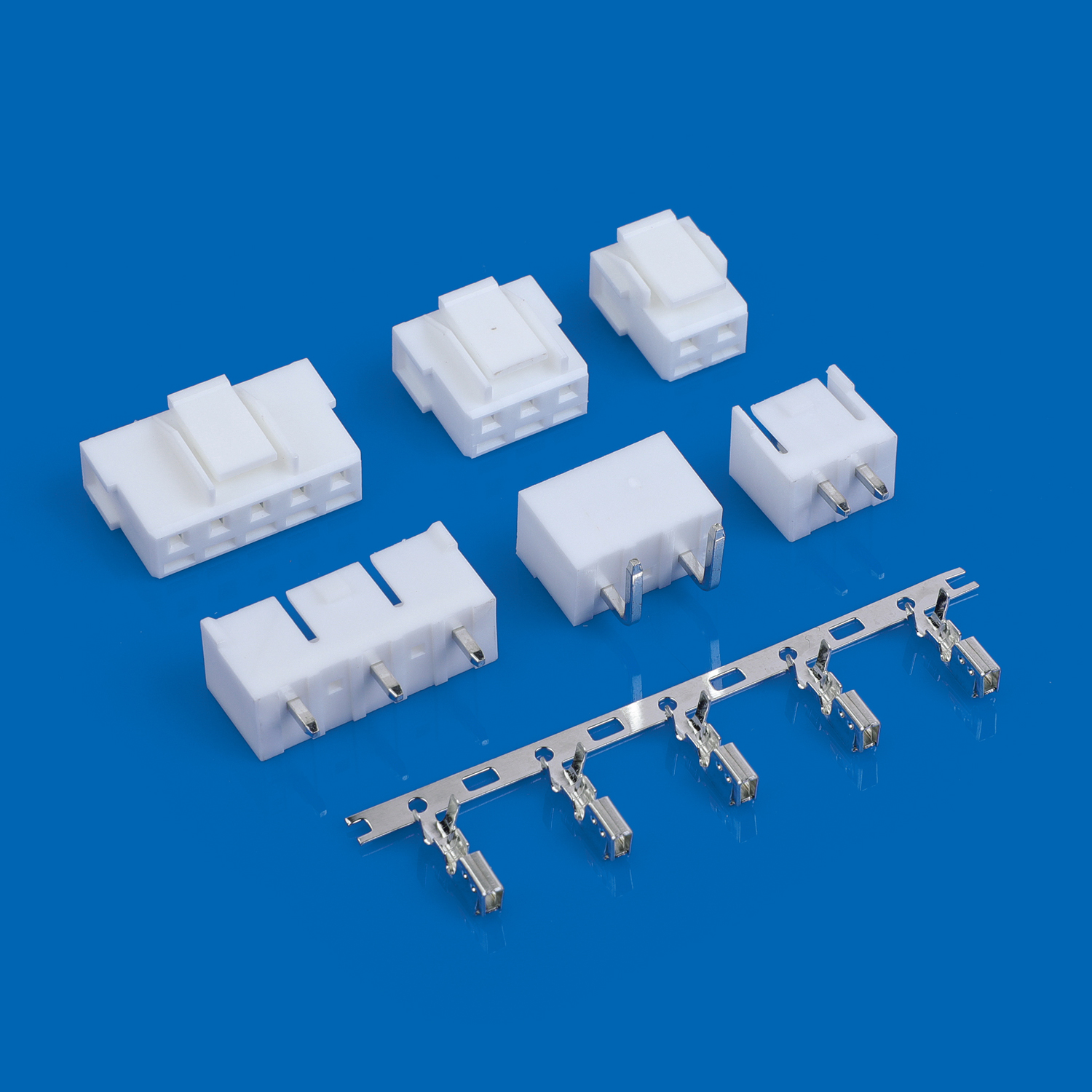

A3964 3.96 mm wire-to-board connectors combine single-row housings, board headers and a crimp terminal for harness-to-board assemblies. The family covers 2–15 circuits and 22–18 AWG wire, with electrical values kept specific to the selected component.
| Component | Selection point |
|---|---|
| H housings | Nylon 66 single-row housings for the required circuit count |
| Board headers | Brass-contact interfaces matched to the PCB |
| Crimp terminal | Phosphor bronze contact for 22–18 AWG wire |
| Centerline | 3.96 mm |
|---|---|
| Positions | 2–15 |
| Rows | Single row |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Maximum current per contact | 5 A / 7 A (model-dependent options) |
| Maximum voltage | 250 VAC/DC |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Choose the mating components by circuit count and footprint, then confirm the current and voltage for each selected part on its drawing instead of applying one value to the complete assembly.
