A3961 3.96 mm wire-to-board connectors combine housings, board headers and crimp terminals for harness-to-board assemblies. The formats cover 2–15 circuits and 24–18 AWG wire, with 7 A per-contact current and 250 VAC/DC maximum voltage.
| Component | Selection guidance |
|---|---|

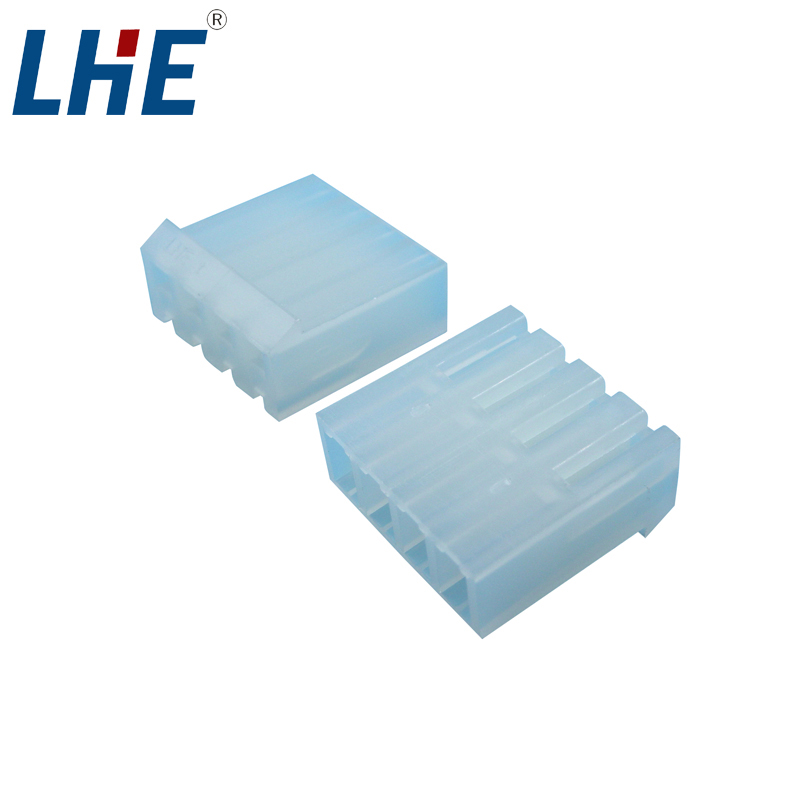

| H housings | Nylon 66 single-row housings for the selected circuit count |

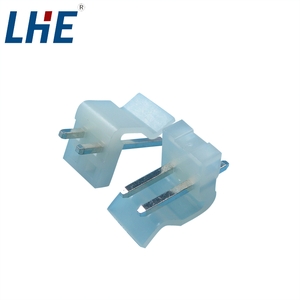

| Board headers | Vertical or right-angle brass-contact interfaces by model |

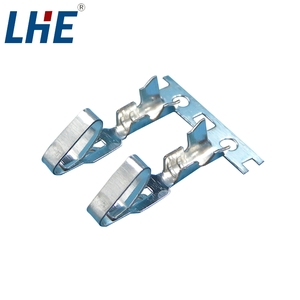

| Crimp terminal | Phosphor bronze contact for 24–18 AWG wire |
| Centerline | 3.96 mm |
|---|---|
| Positions | 2–15 |
| Maximum current | 7 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Housing resin / flammability | Nylon 66 UL94V-0 |
Select the circuit count and mating housing, then choose the header orientation and terminal for the conductor size. Confirm the mechanical interface on the drawing.
