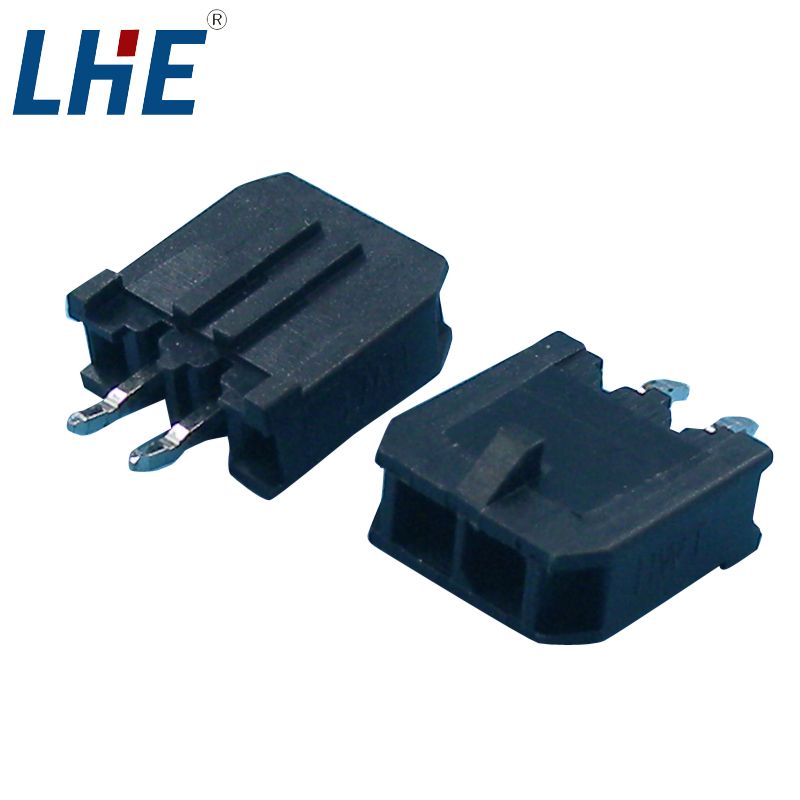

A3001 3.0 mm wire-to-board headers provide board interfaces for 2–24 circuit assemblies. The headers combine Nylon 66 insulation with brass contacts and are specified for 8.5 A per contact and 250 VAC/DC maximum voltage over -25 °C to 105 °C.
| Centerline | 3.0 mm |
|---|---|
| Positions | 2–24 |
| Rows | Single row |
| Insulation | Nylon 66 UL94V-0 |
| Contact material | Brass |
| Maximum current | 8.5 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Contact plating | Tin Plating |
Select the circuit count and header orientation, then verify the board footprint, mating housing and mechanical dimensions on the applicable drawing.
